Linear Pull Brakes

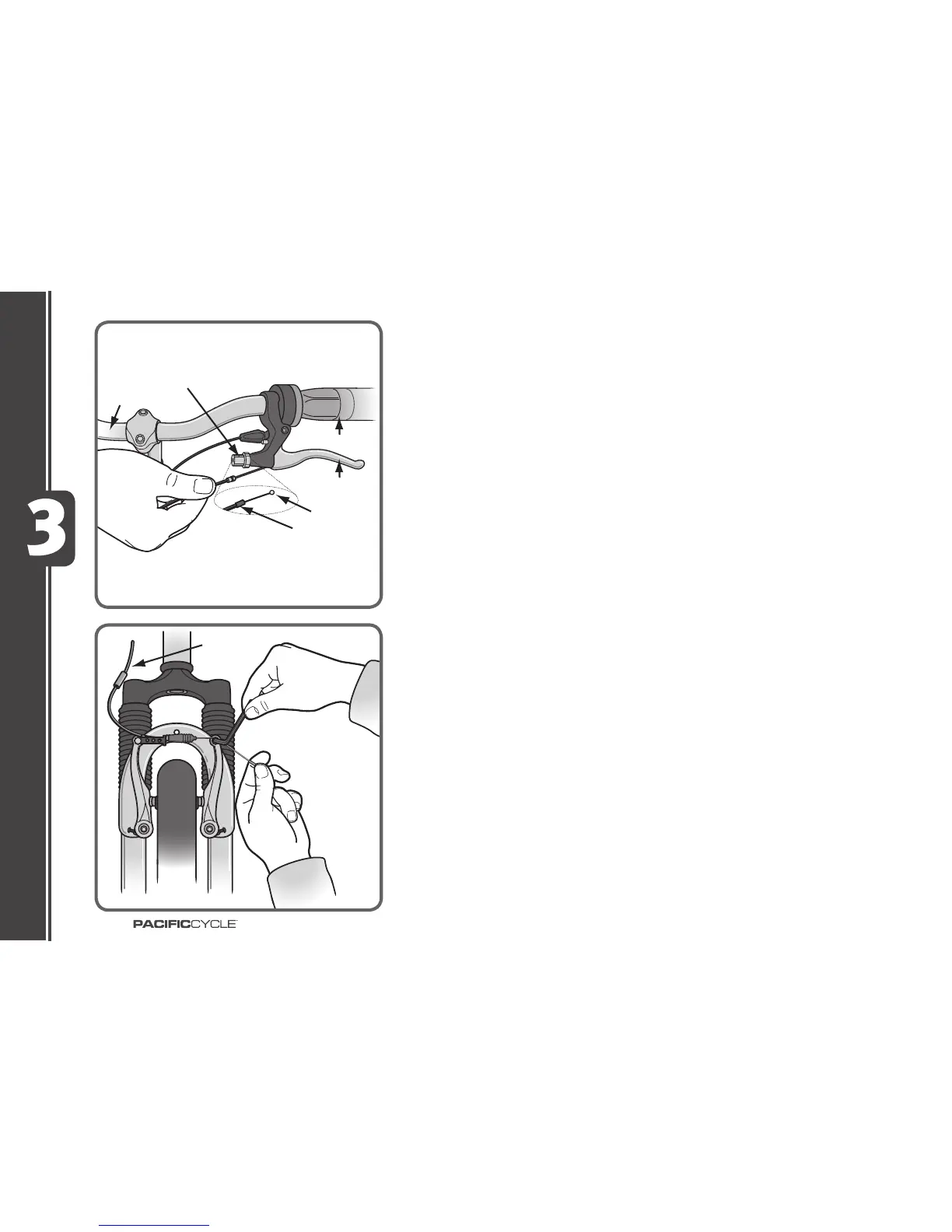

If the brake cable is not connected at the brake lever, slide the head of the brake cable
into the brake lever per the diagram, and thread the cable through the slot in the brake
lever so the cable end rests squarely in the adjustment barrel or cable end rests in the
recess of the brake lever. (Fig. 3.31)
If the brake cable is disconnected at the brake arm, with le hand, squeeze the 2 brake
halves together unl the brake pads touch the rims. With your right hand pull the
brake cable so that the stepped end of the “noodle” can be inserted into the brake
carrier.
Brake adjustment
Check to be sure the cable is seated in the brake lever. Loosen the cable anchor bolt just
enough to allow the cable wire to move freely. With your le hand squeeze the caliper
brake unl both brake pads contact the rim. While holding the brake closed with your
le hand, use your right hand to pull the brake cable ght (through the cable anchor.
Again inspecng that the cable end is seated in the brake lever, and the barrel adjuster
of the brake. Tighten the cable anchor as much as you can by hand, and then while sll
squeezing the brake, ghten the cable anchor fully with a wrench. (Fig. 3.32)
