Setting Up
AV Positioning
The illustrations on the following pages show optimal positioning and some suggested room
layouts for AV applications. For advice on configuring a 2 channel system, refer to page 7.
The front, and in some cases rear, floor standing and stand mount speakers should be
positioned approx 6 - 9 feet apart (1.8m - 2.5m) and start with them about 10 inches
(25cm) from the wall.
If, when playing music, the sound is too bass heavy or there is bass boom from the room,
then move them slightly further away from the rear/ side walls. If this is not possible, then
try the supplied port bungs (not included in the Silver FX or Centre). Refer to Page 11.
The Centre should be positioned so that it is pointing at you in your viewing position, and
at approximate ear height. If it is below or above ear height, use some rubber feet (small
feet supplied) to angle it slightly.
The FX’s should be positioned in accordance with the below illustrations and approx 2
feet (60cm) above ear height when in your listening position. Refer to page 7 for further
information.

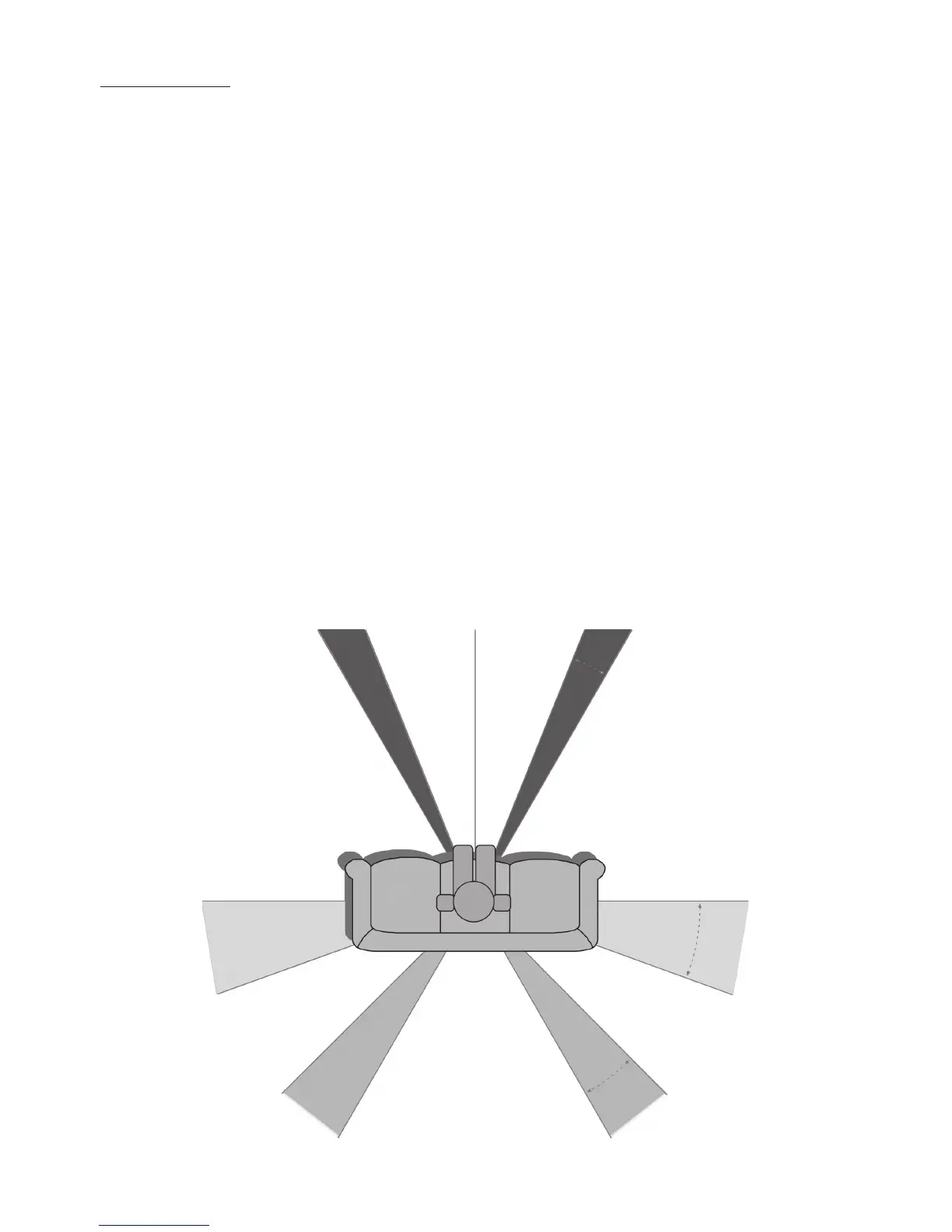

Optimum AV Speaker Positioning
22°
0°
30°
90°
110°
135°
150°
Centre
Left
Right
Surround
Right
Surround
Left
Rear
Surround Left
Rear
Surround Right
Silver Series4
