Mono Bx OVEN

Bx oven ECO HAL range inc condenser and spares 24/01/13 RAC
73
PART 4 / SECTION 2
–
4/5 TRAY 40 X 60
–

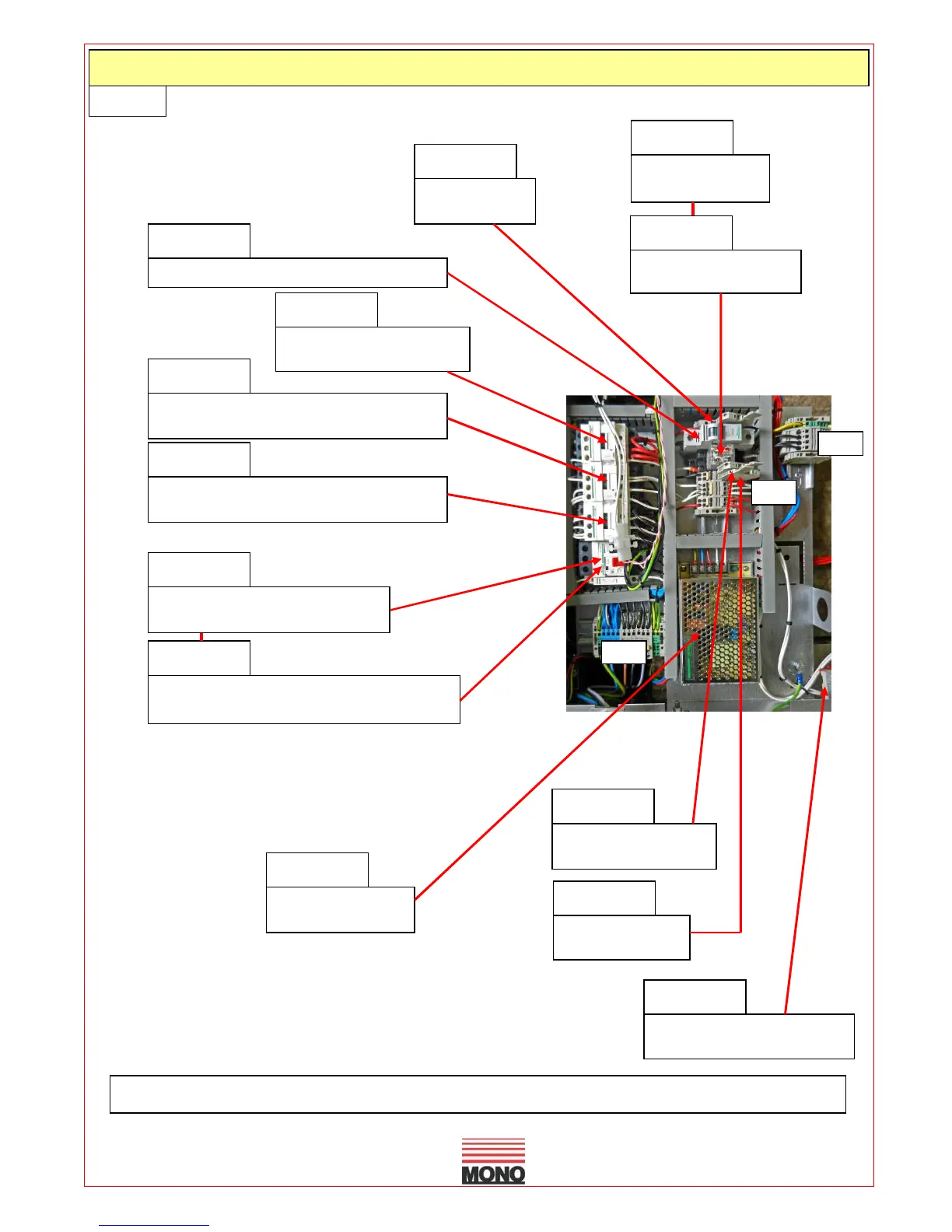

MAIN PANEL
PART 27
FAN FUS
E
B842-85-025
PART 3
CONTROL CIRCUIT MCB
– B872-22-062
PART 28
AUX SOCKET FUSE
B842-85-039
PART 25
LIGHT
FUSE
B842
-
85
-
042
PART 22
OVERHEAT THERMOSTAT
B888
-
30
-
014
PART 1
POWER SUPPLY
B801-93-005
PART 8
ELEMENT CONTACTOR
B801
-
08
-
021
PART 7
FAN MOTOR REVE
RSE CONTACTOR
B801-08-031
PART 6
FAN MOTOR FORWARD CONTACTOR
B801-08-031
PART 5a
FAN MOTOR OVERLOAD UNIT
B801-03-020
PART 5b
FAN MOTOR OVERLOAD AUX CONTACT
B801-14-012
PART 2a
LIGHT RELAY
B723-37-004
PART 2b
LIGHT RELAY BASE
B723
-
36
-
0
01
TB1
TB2
TB3
PART NUMBERS REFER TO DRAWING M158E25-75200 IN ELECTRICAL MANUAL
FG153
