Monogram ZIS48N - Side Panel or Filler Options

14
Custom Panel Dimensions
48" Built-In Refrigerator
For All Monogram Built-In Refrigerators
Side Panel or Filler Options
(not to scale)
Side panels must be used whenever the sides of the refrigerator
will be exposed.

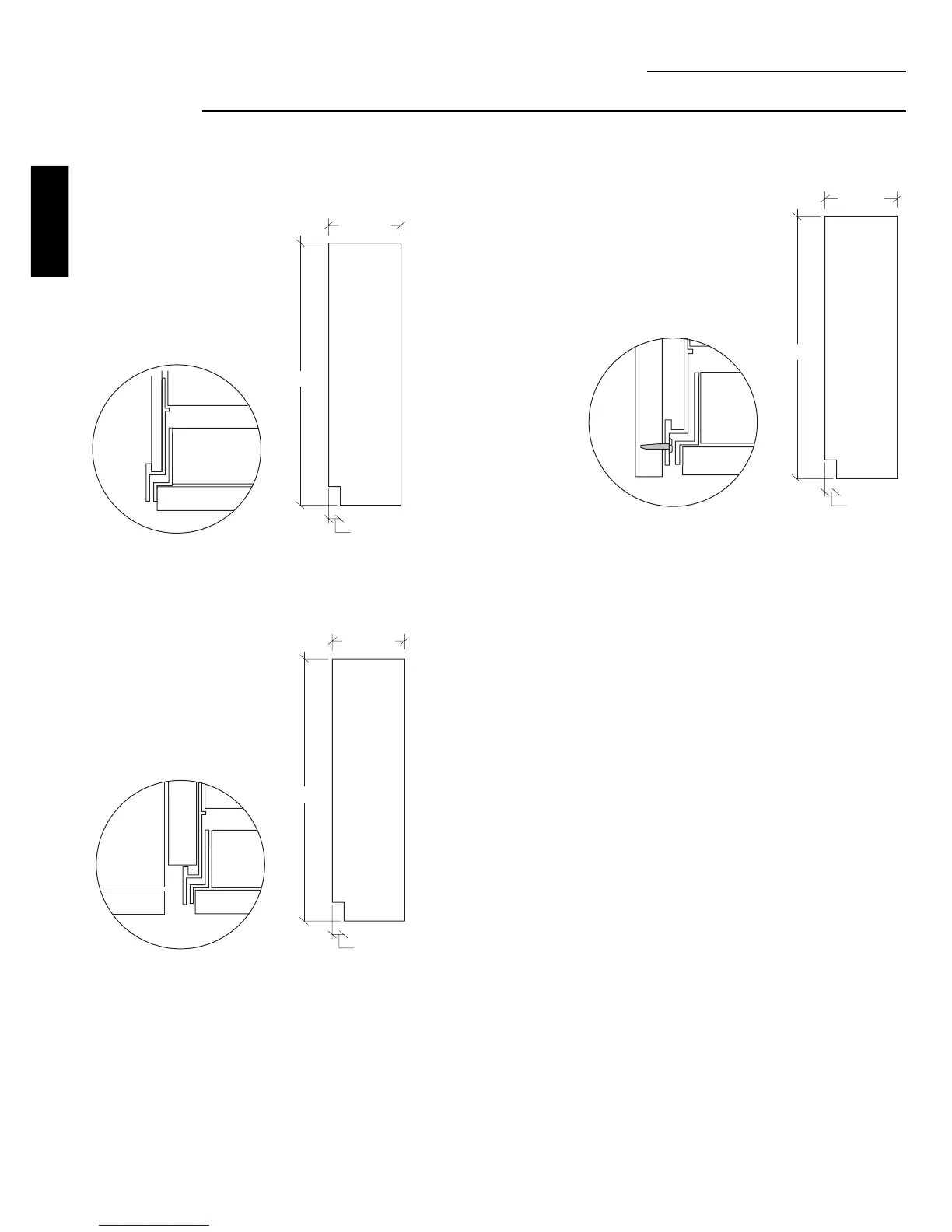

1/4" Side Panels
Insert end of
side panel into trim.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
1/2" to 3/4" Side Panels
Leading Edge
Flush with Cabinet
Front. The front or
leading edge, must be
finished to match
cabinetry.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
Standard 4" high toekick or trim to fit.
Height may vary depending on application.
1/2" to 3/4" Side Panels
Recessed front edge.
23 9/16"
84"
2 9/16"
Trim
23 5/16"
84"
2 5/16"
24 3/4"
84"
3 3/4"
CUSTOM PANEL
DIMENSIONS
