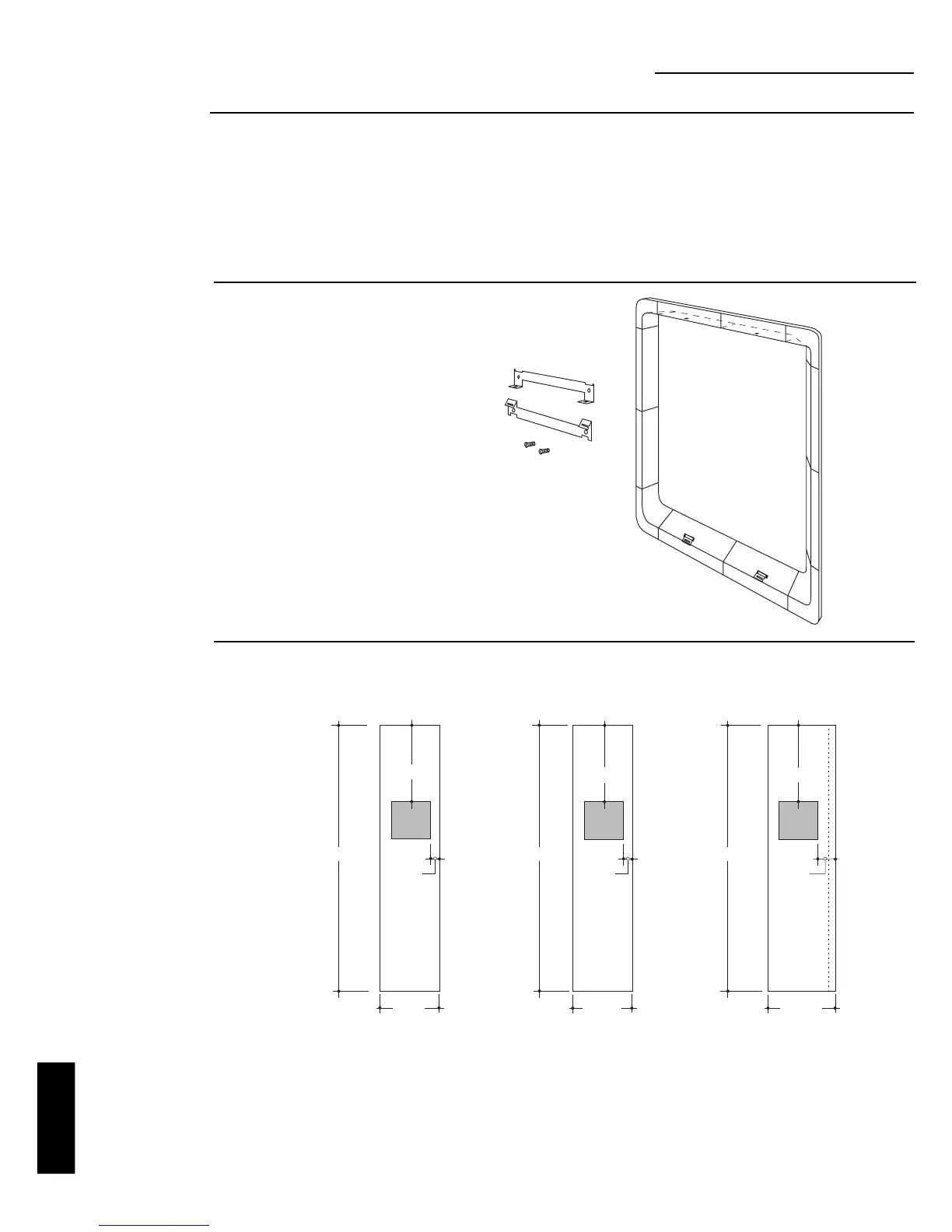

ZWCD2 Trim Kit
Custom Dispenser Collar
B
C
D
A
• 3/4" thick panels using optional custom handles.
Select the panel size accordingly.
Parts List:
A. Collar trim
(Both black and white
trim included)
B. Top bracket
C. Bottom bracket
D. Screws (2)
This kit provides for the
use of a custom dis-
penser collar trim,
replacing the standard
full-width trim. This kit
can be used alone, or
combined with one or all
other trim kits.
Tools and materials
required:
•#2 Phillips screwdriver
•Drill and appropriate bits
•Custom door panels
•Safety glasses
Select
panel size
Kit
contents
The overall size of the panel is determined by the
application being used.
• 1/4" thick panels using the standard handles or
optional custom handles.
• 3/4" thick panels using standard handles, or
67 15/16"
67 15/16"
19 1/16"
19 1/4"
19 5/16"
3 5/16"
3 9/16"3 9/16"
17 11/16"
17 11/16"
17 11/16"
67 7/8"
1/4" Thick Custom Panels
3/4" Thick Custom Panels
with Standard Handles
3/4" Thick Custom Panels
with Custom Handles
ZWCD2
INSTALLATION
