ZKHTSS1 for 3/4" Panels
Tubular Stainless Steel Handles
For models with full width dispenser trim and 2 piece
freezer panels:
It is best that 2 people perform this step.

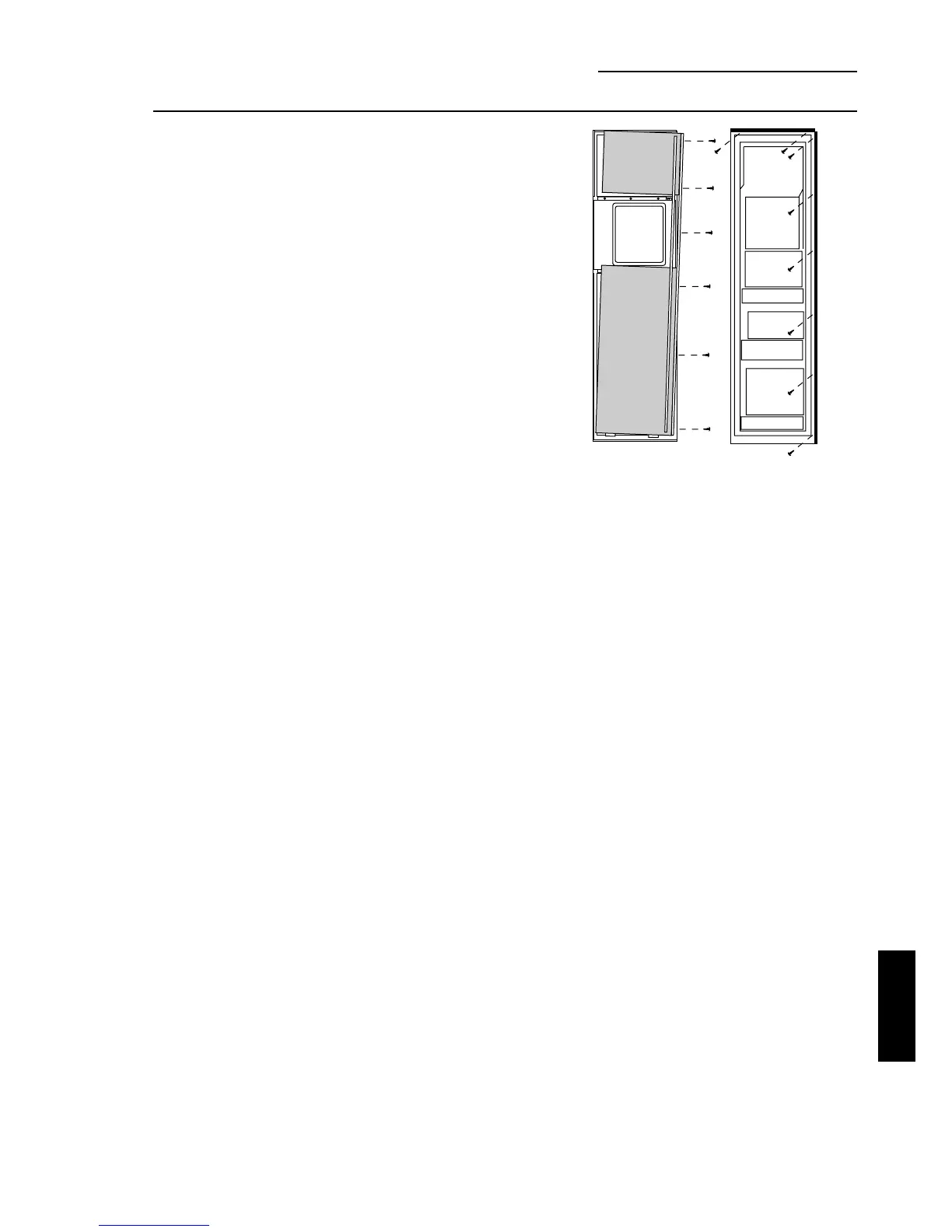

• Carefully, lift the assembled panel to the case trim.
Hold both panels so they do not twist the extrustion.
• Insert the support bracket tabs into the bottom trim.
• Push and hold the panel back against the steel door.
• Reinstall original screws into the door extrustion.
• Open the door fully to stop.
• Install screws at the top, and hinge side.
Step 5
Install
Assembled
Panels
(continued)
ZKHTSS1
INSTALLATION
To Next Page
