27
ZKT48 Trim Kit
3/4" Custom Panels
G
A
B
E
F
J
I
H
C
D
Tools and materials
required:
•#2 Phillips screwdriver
•Stubby Phillips screwdriver
•Drill and appropriate bits
•Safety glasses
•Custom panels

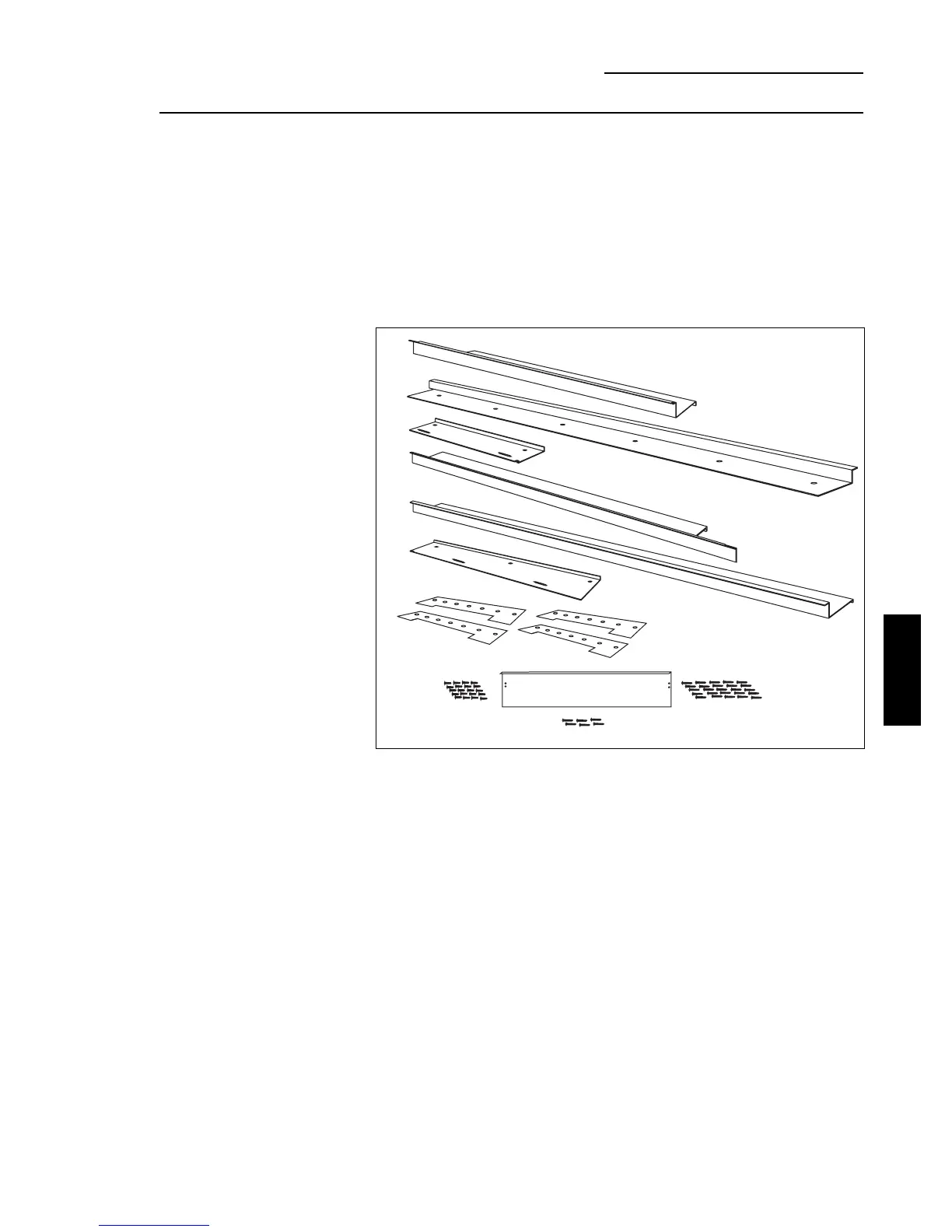

Parts List:
Freezer Door
A. Top trim
B. Side trim
C. Bottom trim
Fresh Food Door
D. Top trim
E. Side trim
F. Bottom trim
G. Panel support
brackets (4)
H. 4-3/8" screws for
support brackets (20)
I. Grille support panel
and screws
ZKT48–8 screws
J. Wood screws #6 1/2"
flat-head screws
ZKT48–30 screws
This kit provides for the installation of 3/4" custom door
and grille panels, using the standard full length handle.
This kit contains all the necessary parts to apply 3/4"
panels on dispenser and non-dispenser models. Follow
the instructions for Option 1 when applying custom
panels to a non-dispenser model or dispenser model
using custom collar trim. Follow instructions in Option 2
for a dispenser model using the standard full-width
dispenser trim.
Kit
contents
These instructions are divided into 2 options:
Option 1—For non-dispenser and dispenser models
using custom collar trim.
Option 2—For dispenser model using the standard
full-width trim.
Note:
If you are using custom
handles, see ZKHT1 Installation
Instructions. For tubular
stainless steel handles, see
ZKHTSS1 Installation
Instructions.
ZKT48
INSTALLATION
