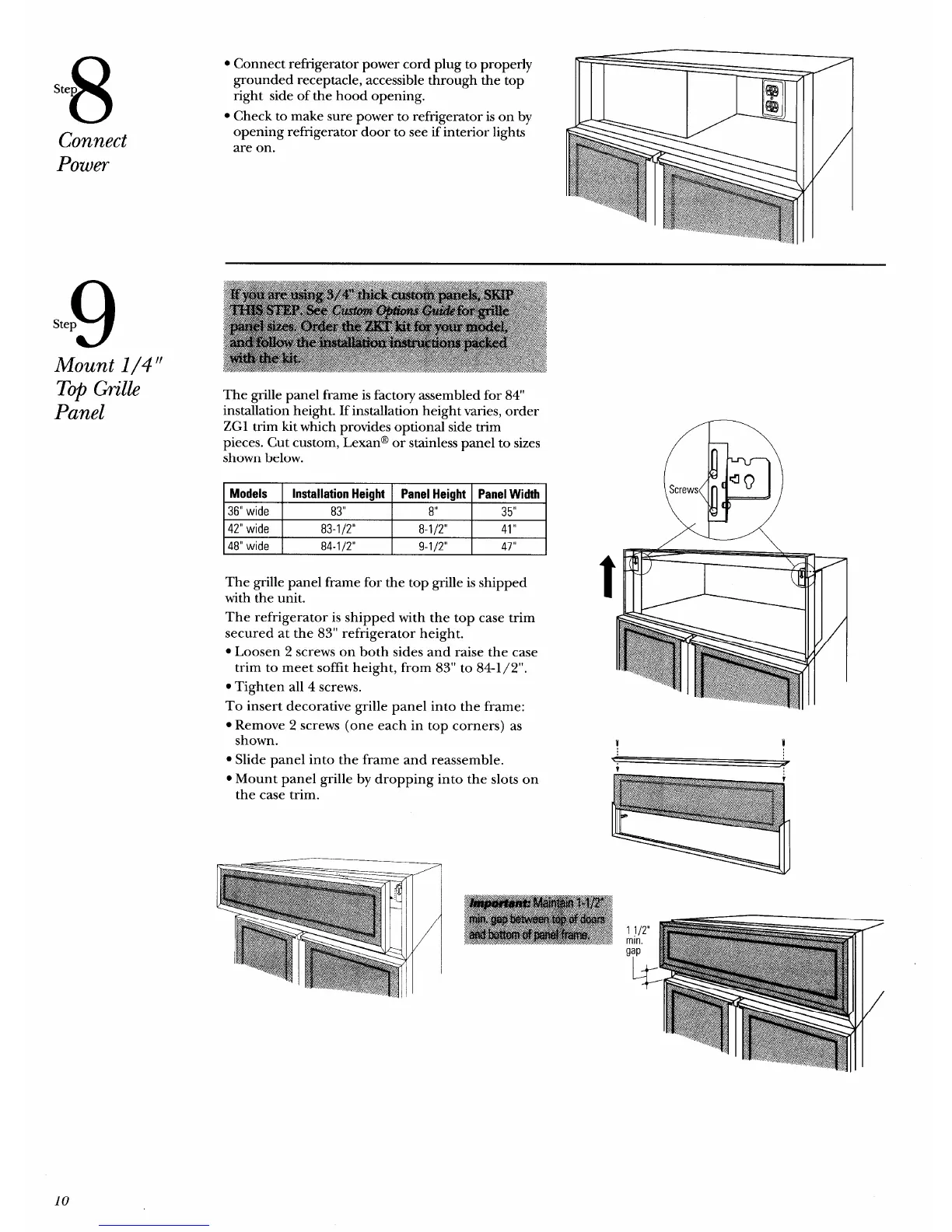

8
Ste
Connect
Power
The grille panel frame for the top grille is shipped
with the unit.
The refrigerator is shipped with the top case trim
secured at the 83” refrigerator height.
. Loosen 2 screws on both sides and raise the case
trim to meet soffit height, from 83” to 841/2”.
. Tighten all 4 screws.
To insert decorative grille panel into the frame:
s Remove 2 screws (one each in top corners) as
shown.
● Slide panel into the frame and reassemble.
● Mount panel grille by dropping into the slots on
the case trim.
1 1/2”
min.
g;p
10
