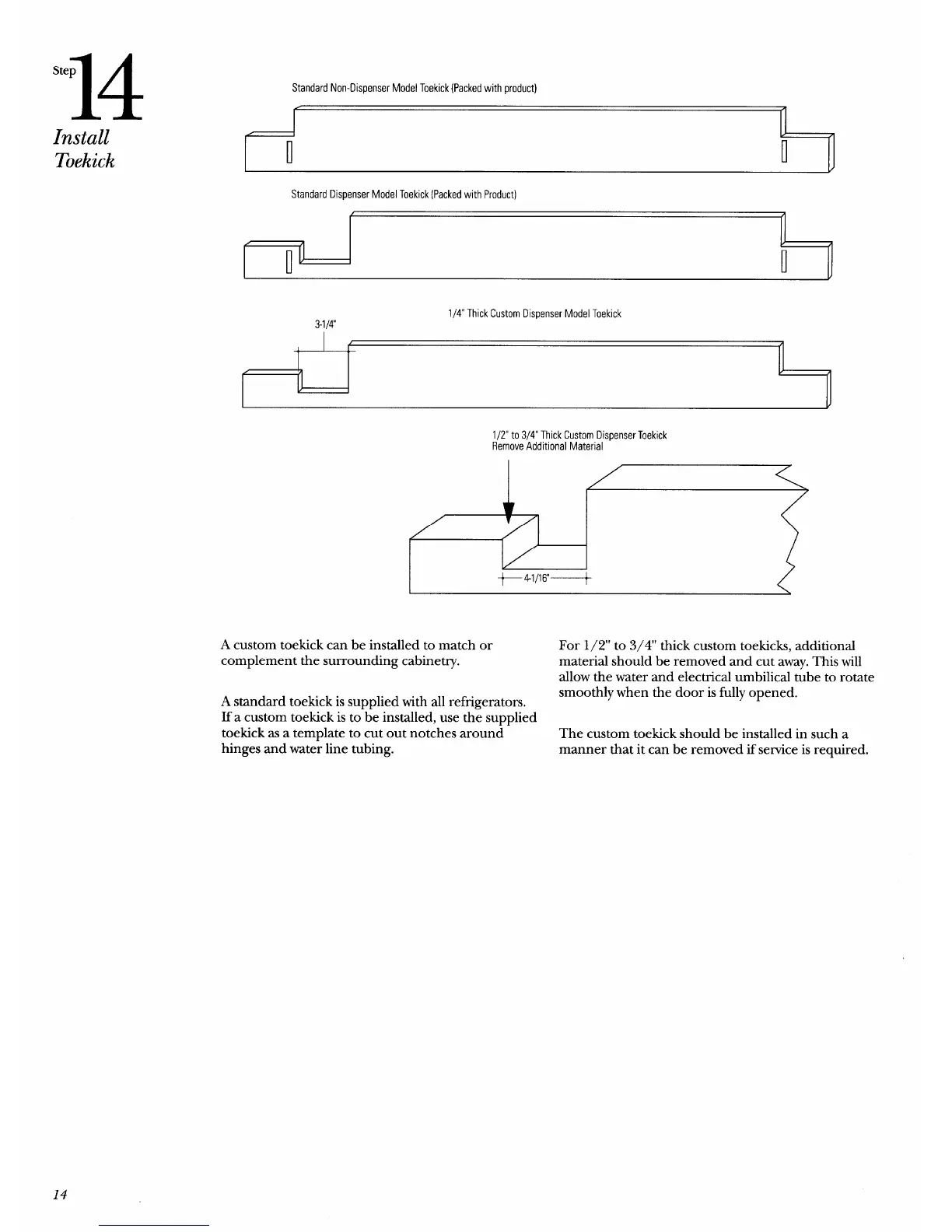

14
Step
Install
Toekick
Standard Non-Dispenser Model Toekick (Packed with product)
t’ rl
Standard Dispenser Model Toekick (Packed with Product)
f fl
1/4” Thick Custom Dispenser Model Toekick
3-1/4
I f A
1 1 1
II
I
v
1/2” to 3/4” Thick Custom Dispenser Toekick
Remove Additional Material
+44/16+
A custom toekick can be installed to match or
For 1/2” to 3/4” thick custom toekicks, additional
complement the surrounding cabinetry.
material should be removed and cut away. This will
allow the water and electrical umbilical tube to rotate
A standard toekick is supplied with all refi-igerators.
smoothly when the door is fully opened.
If a custom toekick is to-be installed, use th~ supplied
toekick as a template to cut out notches around
The custom toekick should be installed in such a
hinges and water line tubing.
manner that it can be removed if service is required.
14
.-—
