6 31-7000165 Rev. 1
Flush Mount Installation Instructions
IMPORTANT NOTES TO THE
INSTALLER
• Read all of the Installation Manual that is included
with the Drawer Microwave before installing in the
flush mount configuration.
• Observe all governing codes, ordinances, and safety
instructions.
• Be sure to leave these installation instructions with
the consumer.
PARTS INCLUDED
Qty Description
1 Flush Mount
Deflector Vent
2 Mounting Screws

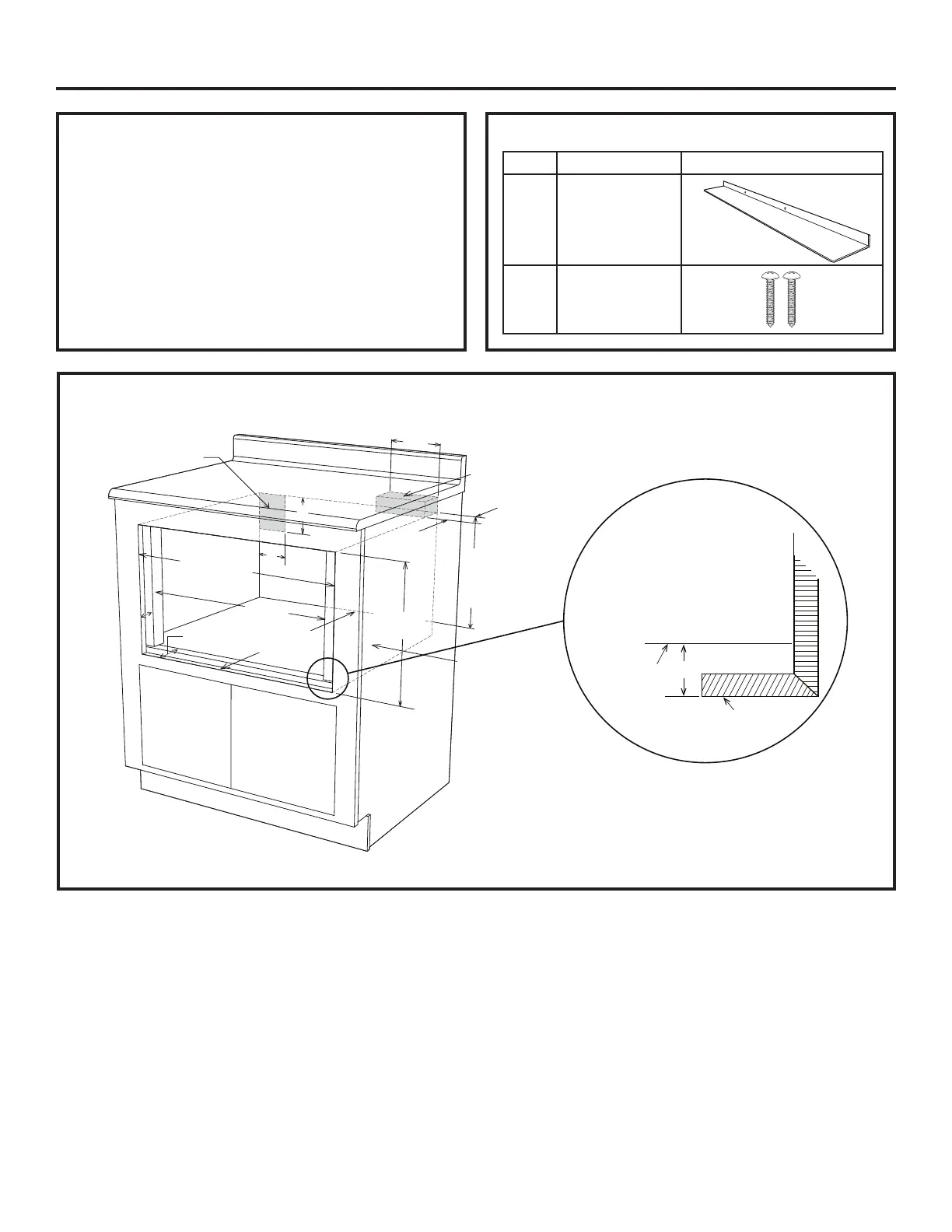

1. Prepare cabinet opening as shown in Figures 6, 7, 8, and 9.
Figure 6
NOTE: The face of
back from the face of
the cabinet.
Shelf face
Cabinet Face
Floor must
support
100 lbs
6”
5”
4”
22”
min
Anti-Tip
Block
bottom of
anti-tip
block
Preferred electrical
outlet location*
