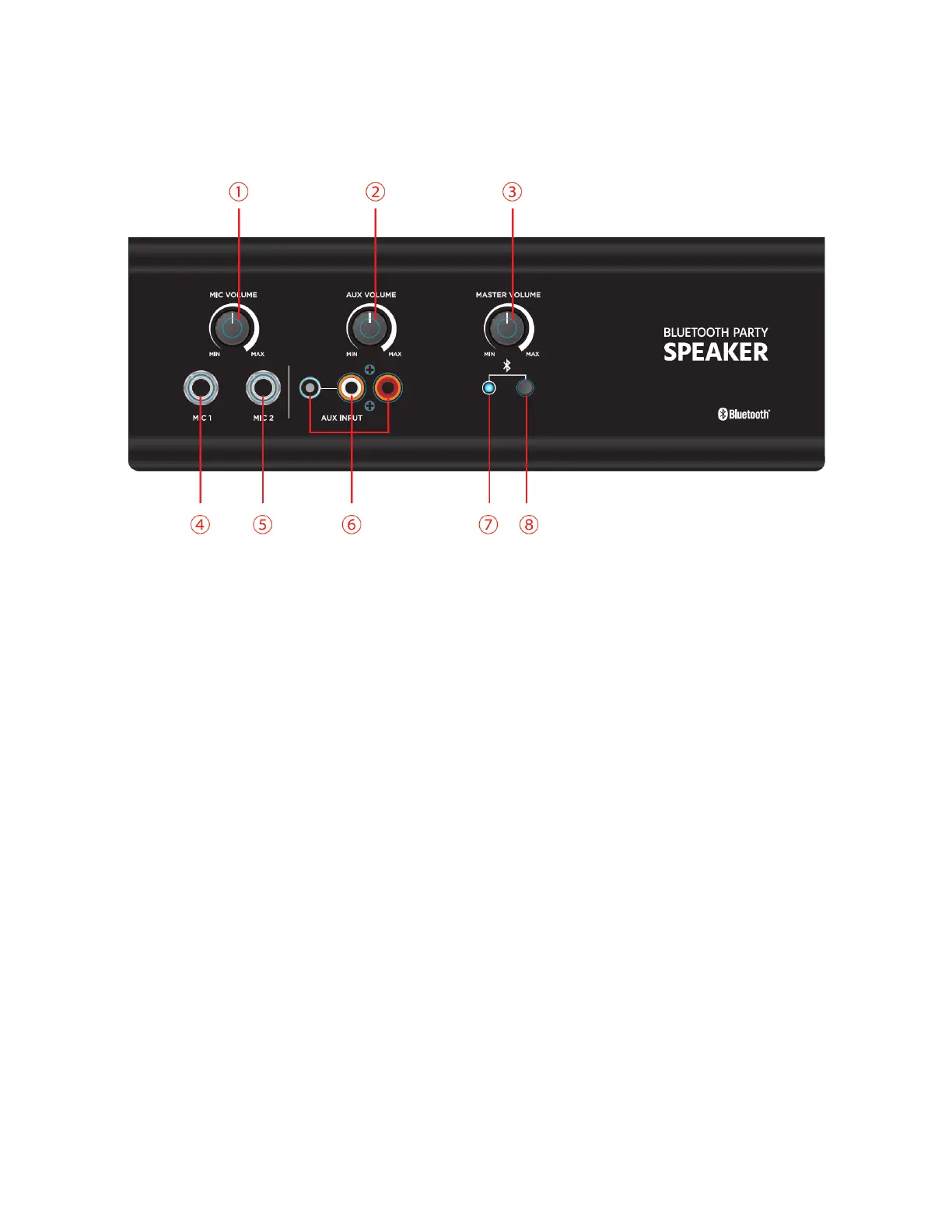

FRONT PANEL CONTROLS AND CONNECTIONS
1. MIC VOLUME: Controls the volume level of the two microphone inputs. Note that both MIC
inputs are simultaneously active.
2. AUX VOLUME: Controls the volume level of the line level AUX inputs as well as the wireless
Bluetooth input.
3. MASTER VOLUME: Controls the overall volume level. Note that the MIC, AUX, and USB/SD
Card inputs are simultaneously active and are mixed together into the single master output.
4. MIC 1: 1/4" TRS balanced microphone level input.
5. MIC 2: 1/4" TRS unbalanced microphone level input.
6. AUX INPUT: Line-level auxiliary input using either a 3.5mm TRS or an RCA stereo pair.
7. Bluetooth LED: Indicates the status of the Bluetooth® connection, as follows:
a. OFF: No connection
b. ON: Connection OK
c. Flashing: In pairing mode
