MPA 3250 OPERATION

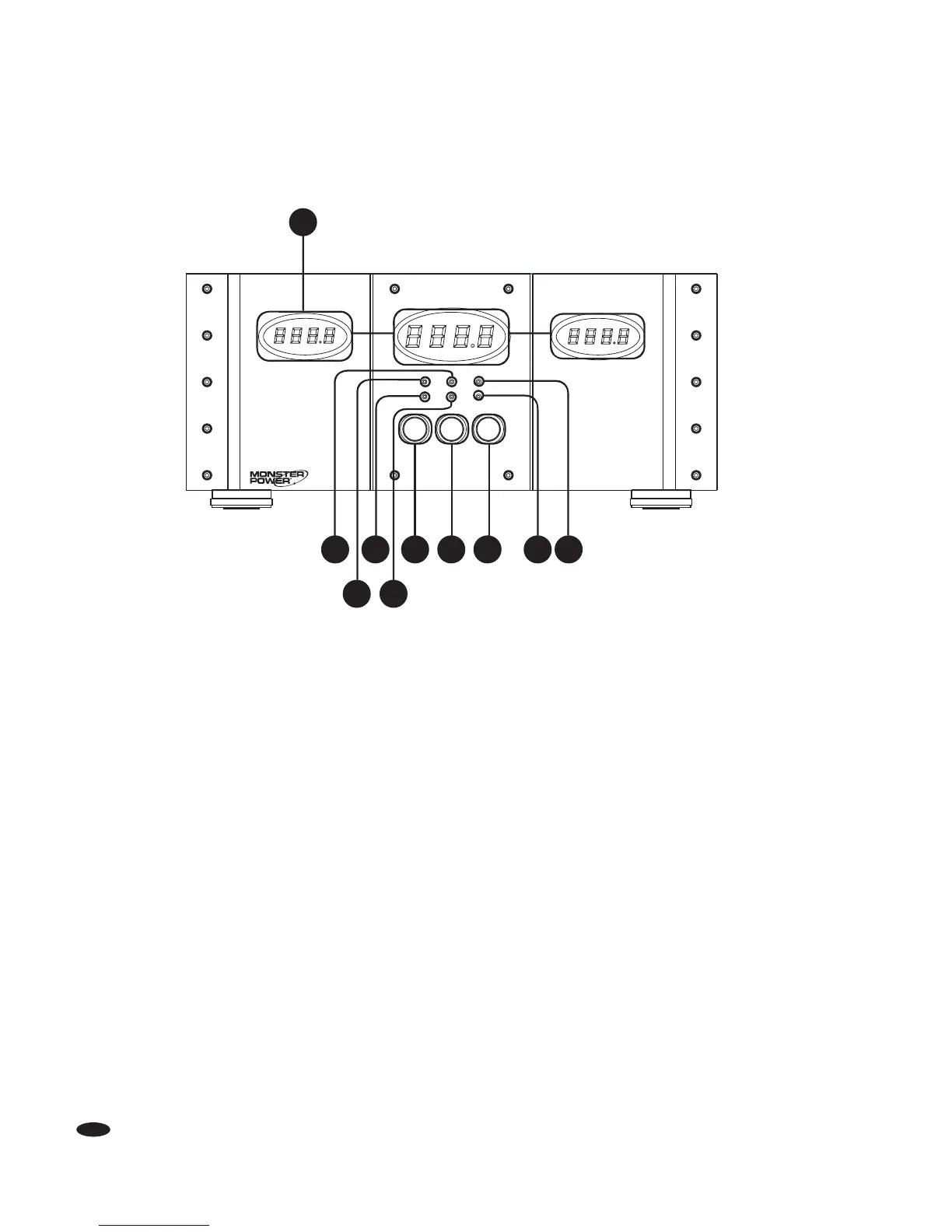

MPA 3250 FRONT PANEL
1. Channel Output Power Meters – Shows the current power output in watts for the Left, Center
and Right Channels respectively.
2. Power Indicator – Illuminates blue when amplifier is powered ON.
3. Center Meter/Watts Total Indicator – When this LED is lit, the read out for the center display
is total power output for all channels. This is selected with the Center Display selector button.
4. Left Channel Full Power Indicator – When this LED is lit, the left channel is at full power.
When this LED is ON, volume of receiver/preamp should be decreased.
5. Center Channel Full Power Indicator – When this LED is lit, the center channel is at full power.
When this LED is ON, volume of receiver/preamp should be decreased.
6. Center Display Selection – This button toggles the center display from Center Channel Power
Output to Total Power Output for all channels. When displaying Total Power Output, the Watts Total
LED will illuminate.
7. Power Button – Turns amplifier On/Off. If a remote trigger is being used, this button should not
be needed once the amplifier is installed.
8. Meter Dimmer Control –increases or decreases the brightness of the Power Output Meters.
Meters will brighten through 12 steps and then turn off.
9. Right Channel Full Power Indicator – When this LED is lit, the right channel is at full power.
When this LED is ON, volume of the receiver/preamp should be decreased.
10. Center Meter/Center Channel Indicator – When this LED is lit, the read out for the center display
is current power output for the Center Channel. This is selected with the Center Display selector button.
WATTS
RIGHT CHANNEL
WATTS
LEFT CHANNEL
WATTS
TOTAL
POWER
ON
LEFT CHANNEL
FULL POWER
CENTER CHANNEL
FULL POWER
RIGHT CHANNEL
FULL POWER
WATTS
CENTER CHANNEL
MPA3250
Signature
MONSTER HOME THEATRE MUSIC
THREE CHANNEL REFERENCE POWER AMPLIFIER
CENTER DISPLAY OPTIONS
CENTER CHANNEL WATTS
TOTAL WATTS
POWER
ON/OFF
DISPLAY
BRIGHTNESS
1
2 4 6
3 5
7 8 9 10
