monster tower MT1 - Getting to Know Your Monster Tower; Assembly Diagram and Parts List

Reference 09Aug2014 – V16 Pg 3 of 12 Copyright 2002-2014, Monster Tower, Inc.
Getting to Know your Monster Tower
Monster Tower Parts & Assembly Diagrams
4
4
5
13
12
5

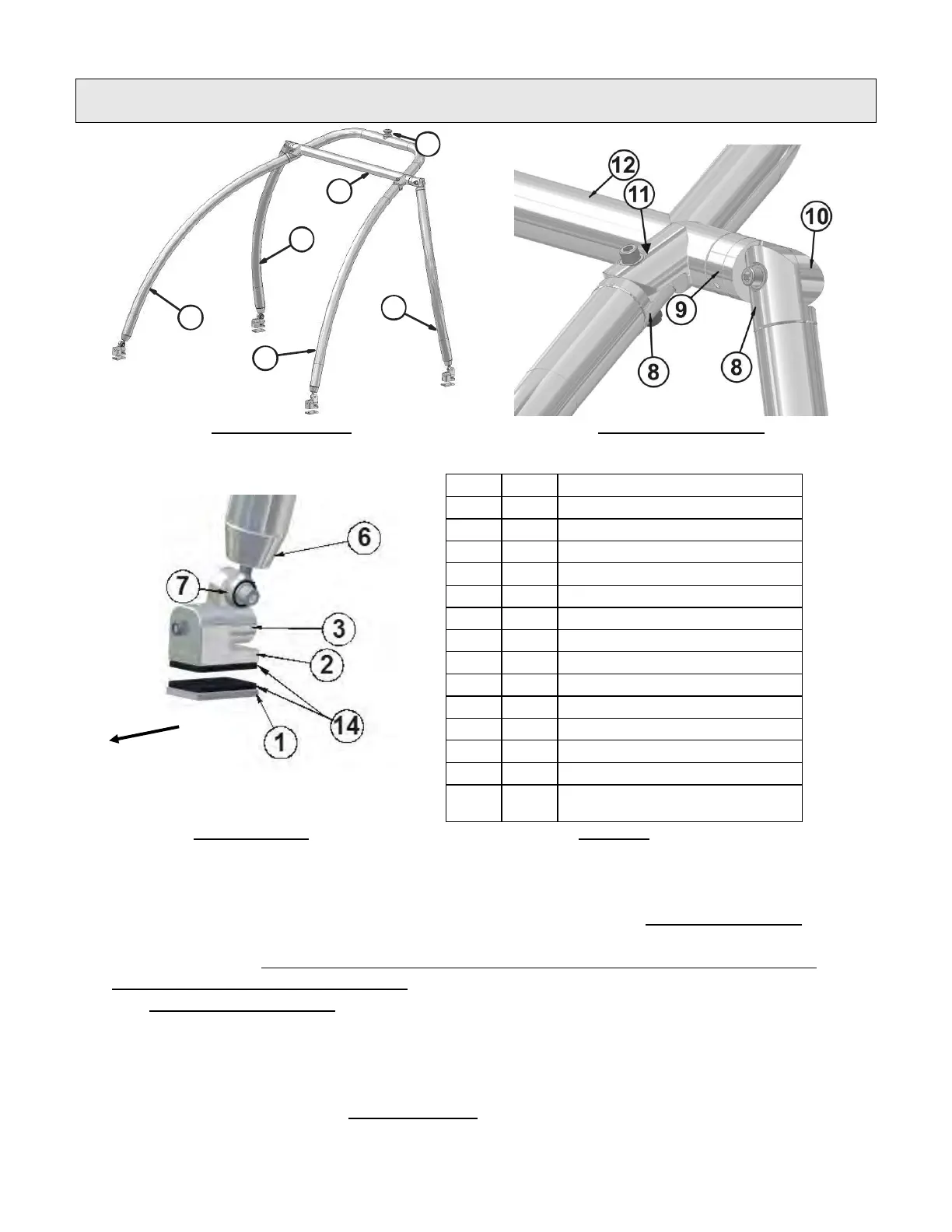

Assembly Diagram
Top Section Assembly
Front
of
Boat
Monster Paw goes between 2 and your
boat with hollowed section towards the
fiberglass
Base Assembly
Part
Qty
Name
1
4
Backing Plate
2
4
Base
3
4
Base Swivel
4
2
Leg Front
5
2
Leg Rear (1 Right & 1 Left)
6
4
Leg Rod End Support
7
4
Heim Joint (Rod End Bearing)
8
4
Leg Swivel (Top of each Leg)
9
2
Rear Swivel Collar
10
2
Rear Swivel
11
2
Front Swivel
12
1
Top Section
13
1
Tow Point
14
8
Monster Paws Base Pads
– Hollow section goes toward boat
Parts List
The Monster Tower is an innovative design in the Wakeboard Tower market that uses
many common parts and design elements that make it affordable and easy to install.
There are three main components of the design as shown in the Assembly Diagram:
front legs, rear legs and the top section. The front legs are identical and there are right
and left rear legs. One rear leg and the mating part of the top section are marked with
blue dots where the two parts mate.
The Top Section Assembly shows how the fixed leg swivel at the top of each of the legs
mate to swivels on the top section. These swivels allow the front or rear legs to move
closer together or farther apart to adjust to different boat widths. The rear swivels on the
top section can also rotate in the rear swivel collar allowing the front and rear legs to
move closer together or farther apart to adjust to different mounting locations on the
side of the boat. The unique Base Assembly of the Monster Tower includes: a base
fastened to the boat, and a base swivel that allows the base to mount on the top,
