12 | CONTROLS AND CONNECTIONS

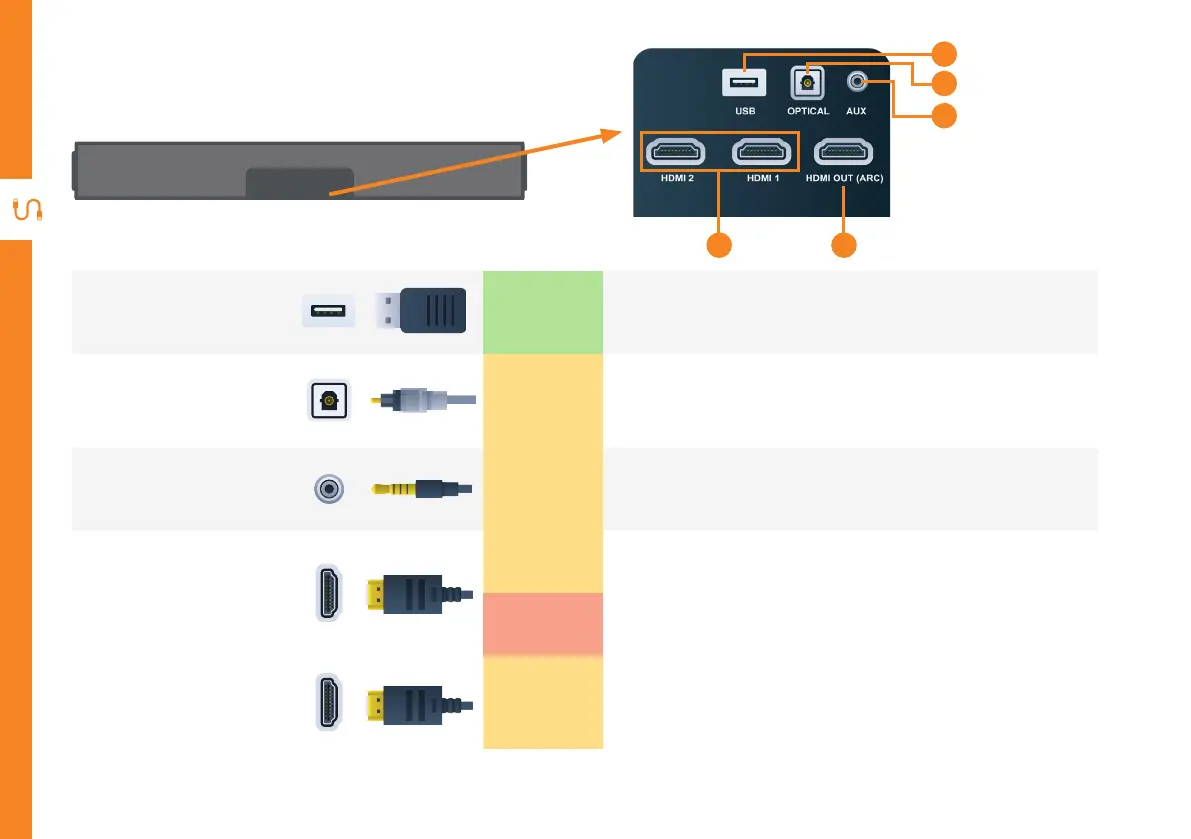

Ports on the Soundbar
1
USB
STORAGE
Play your stored media files (supported file codecs and
extensions may vary).
2
OPTICAL
SOUND
Connect an optical cable (included) to the OPTICAL
OUT socket of your device (e.g. TV, DVD player) and the
OPTICAL socket on the soundbar.
3
AUX IN
SOUND
Use a 3.5mm audio cable (not included) to connect the
headphone socket of the connected audio device, such as a
media player, to the AUX socket on the soundbar.
4
HDMI IN
SOUND
Connect to a HDMI supported device like a DVD player or
gaming console using a HDMI cable (not included). Audio
will be played through the soundbar and picture will loop to
the HDMI OUT (ARC) of the TV.
5
HDMI OUT
(ARC)
SOUND
The ARC (Audio Return Channel) function allows you to
send audio input from an ARC-compliant TV to an ARC-
compliant audio device (e.g. soundbar) without the need
for an additional audio cable connection
1
2
3
4 5
