36
6. Where the two halves of the bike
come together, the front wheel quick
release end nut should nestle inside
an opening on the rear axle. Ensure
the end nut is fully seated inside the
opening. (Fig. 33).
7. The two halves of the frame can be
locked together with a hook located
on the front fork, which grasps a post
on the rear rack. Press the hook into
the post on the rear rack until it clicks
into place. (Fig. 34).

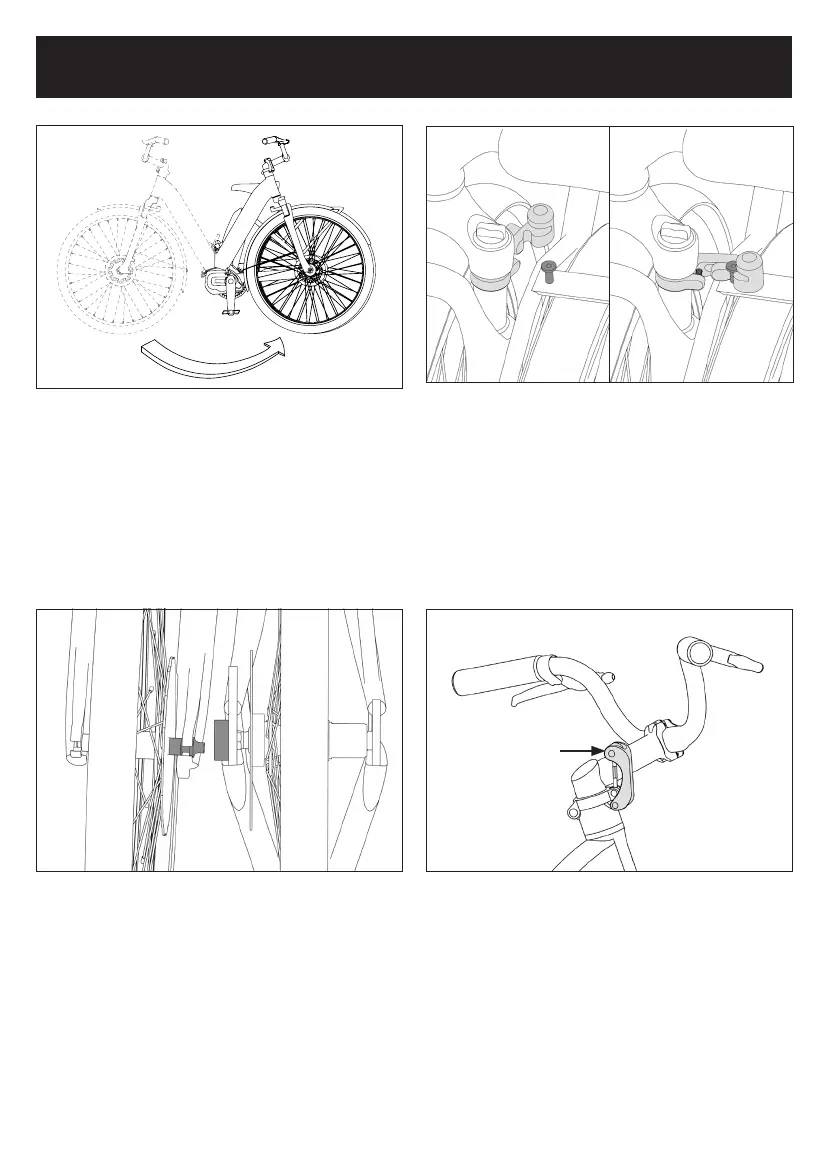

Fig. 32: Fold the bike frame in half.
Fig. 33: Front wheel quick release end nut entering
rear axle opening.
FOLDING YOUR MONTAGUE BICYCLE
8. Open the seat post quick release
and slide the seatpost down until the
saddle is completely lowered.
9. Open the quick release lever on the
handlebar stem (Fig. 35).
10. Pivot the handlebars to the down
position. (Fig 36, page 37). The
saddle should be nestled in the
middle of the handlebars (Fig. 37,
page 37)
Fig. 34: Lock the folded bike together with hook.
Fig. 35: Open the handlebar stem quick release.
