3-way, bi-amplified, active loudspeaker systems
T18A / T15A / T12A
1 IN: balanced input, fitted with a Neutrik Combo
®
connector
which accepts both 3 pin XLR and jack plugs.
☛ See 'connectors' and 'connections' at pages 15 and 16,
and 'applications' at pages 17 and 18.
2 OUT: balanced output, (in parallel with the input), using a 3 pin
XLR connector. It allows for easy parallel connection of other
T18A / T15A / T12A or active systems.
☛ See 'connectors' and 'connections' at pages 15 and 16,
and 'applications' at pages 17 and 18.
3 MASTER LEVEL: it is the master volume control.
Adjusts the input levels of the 2 built-in power amplifiers to
adapt them to the output level of the mixer. It also allows to
adjust the speaker volume when this system is used in parallel
with others.
Typical operating setting is at maximum position.
The trademark Neutrik Combo
®
is property of Neutrik
9
ENGLISH
4 H.F. - M.F. LEVEL: Mid-high frequencies level.
Note: if you are using a Montarbo mixer (or any mixer
having an output level of 0dB), for optimum performance
it is advisable to set both the MASTER LEVEL and the
H.F.-M.F. LEVEL controls fully clockwise (at their
maximum settings).
5 POWER / 0 - I: Mains power on/off switch.
6 Mains power cord socket (with built-in fuse).
Use only the factory supplied mains cable or a suitable cable
with a ground connection and marked with the safety
approvals valid in the country of use.
7 Ground socket. It must be used only when the mains cable is
connected to an ungrounded socket, or if the socket ground
connection is unknown.

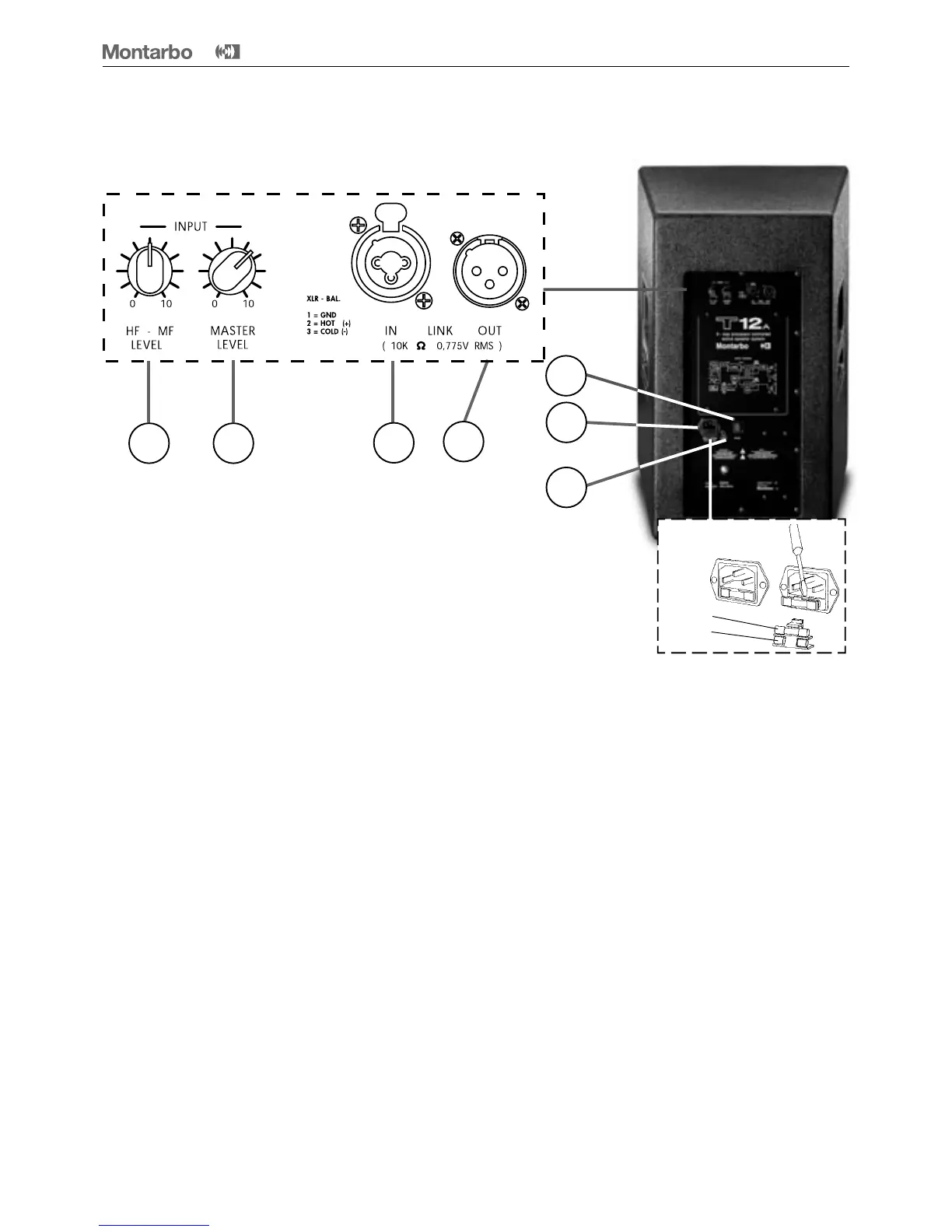

Control and connection panel
1
34
2
Service fuse
FUSE
REPLACEMENT
Spare fuse
5
6
7
Controls and c
onnections are the same for all three models.
