Montech MonTurn TB40 User Manual

Assembly instructions BA-100155
Control unit MonTurn
20
5.4 Electrical connection MonTurn
5.4.1 Version overview
Ref.no. Figure Designation Shipment
65670 Control unit MonTurn
• MonTurn
66342
Control unit MonTurn
incl. cable set, 5m
• MonTurn
• Cable set, consisting of:
Connecting cable power TB40, 5m
Connecting cable power MonTurn, 5m
Connecting cable signal TB40 <->
MonTurn, 2m
66571
Control unit MonTurn
incl. cable set, 10m
• MonTurn
• Cable set, consisting of:
Connecting cable power TB40, 10m
Connecting cable power MonTurn, 10m
Connecting cable signal TB40 <->
MonTurn, 2m
Power cable TB40 (5 / 10 m)
Power cable MonTurn (5 / 10 m)
Signal cable (2 m)

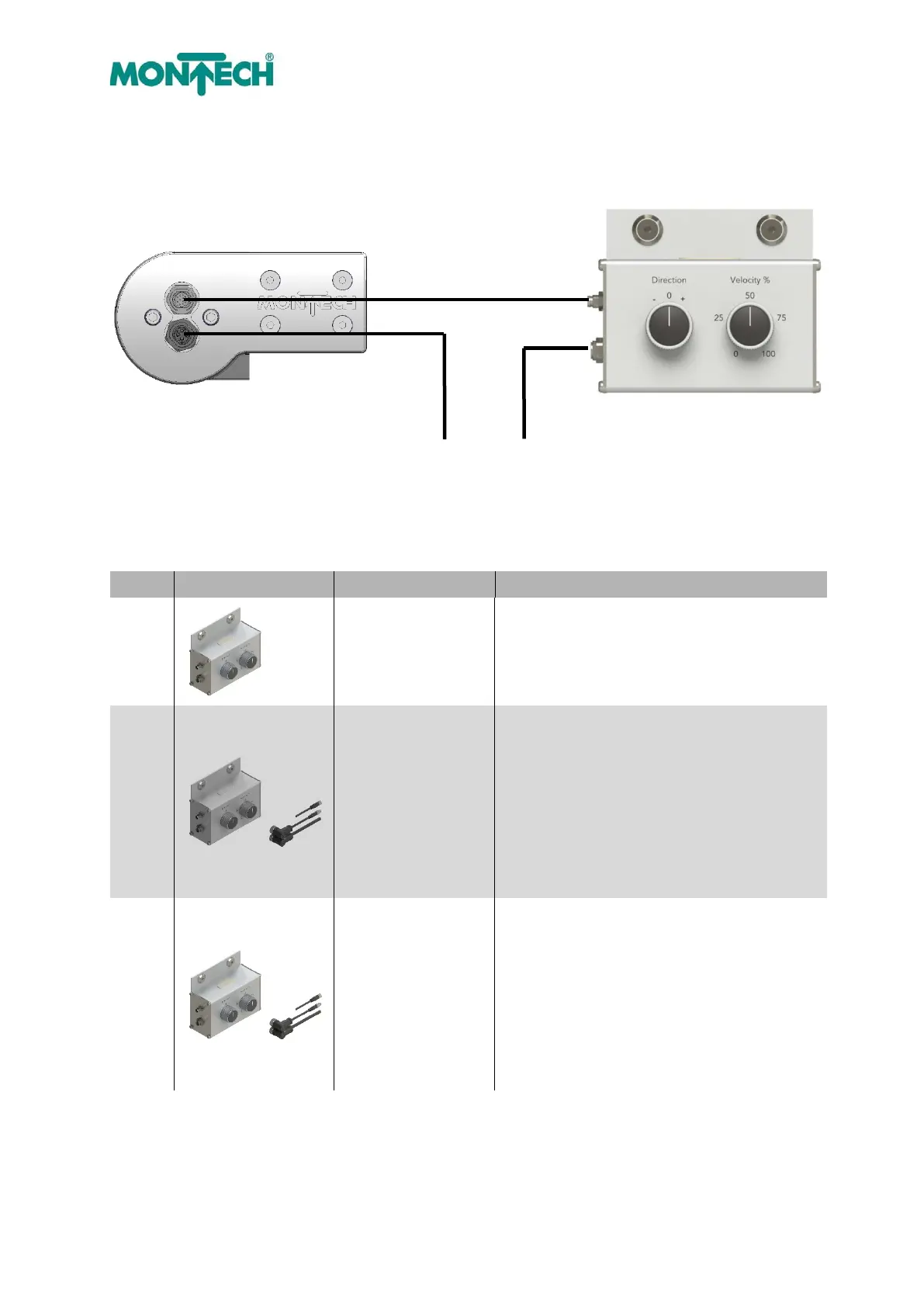

Figure 6: Cabling MonTurn <-> TB40
