MOODY Eclipse 38 - Page 71

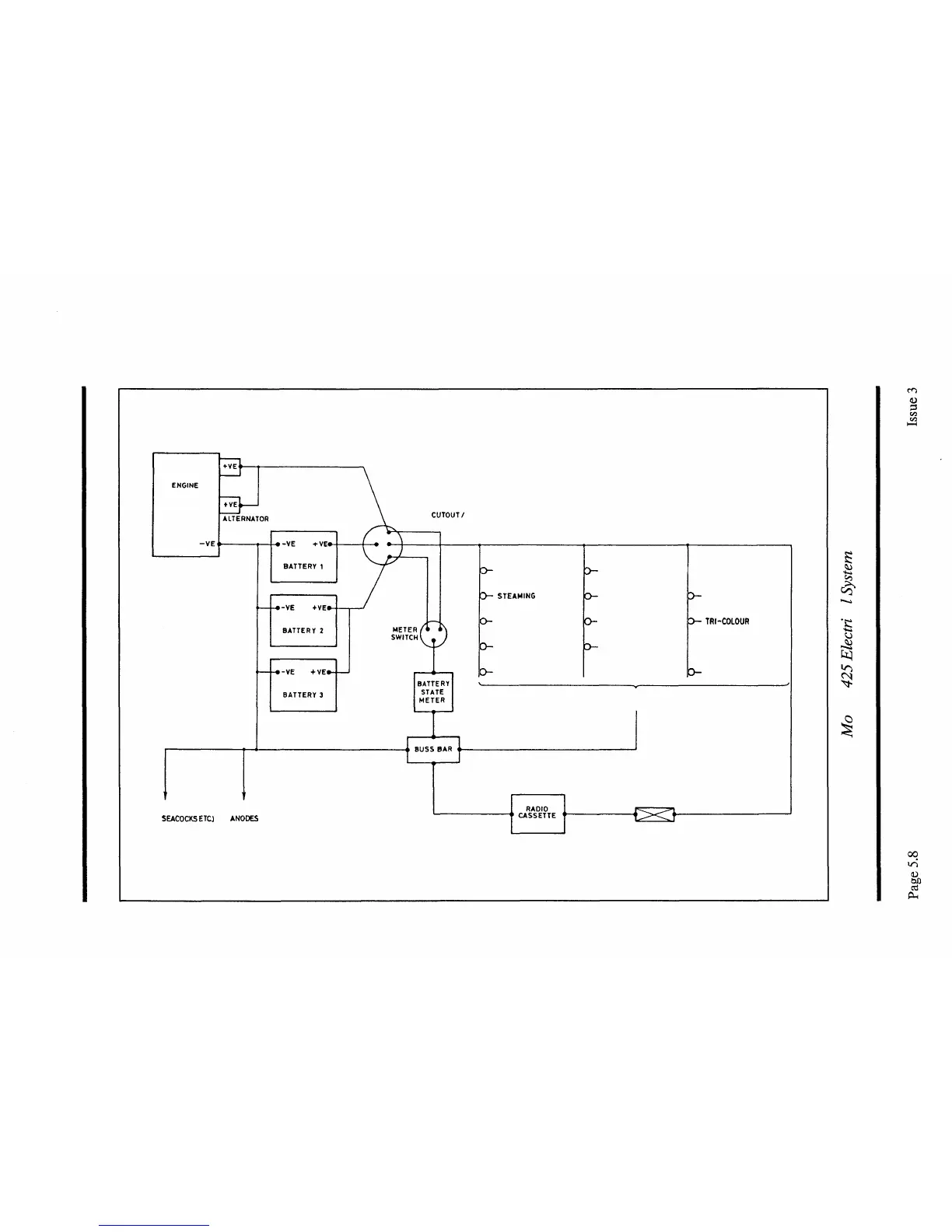

STARTER
DISCRETE CUTOUT/
BATTERY SWITCH
* THESE APPLICATIONS MAY VARY
SKIN FITTINGS SACRIFICAL
(PROP, SEACOCKSETCO ANODES
3- NAVIGATION LIGHTS
>- STEAMING LIGHT
O- COMPASS LIGHT
O- DECK LIGHT
O- ENGINE ROOM LIGHT
>- CABIN LIGHTS
O- BUNK LIGHTS
O- FRESHWATER PUMP
O- FRIDGE
O— SHOWER *
O— INSTRUMENTS *
D— FUEL GAUGES *
D— TRI-COLOUR LIGHT *
O— ALL-ROUND LIGHT *
O- AUTO PILOT *
ALL NEGATIVES TO EARTH
VIA BUSS BAR
s
t
IN-LINE FUSE
