Seacocks________________________________________
Seacocks are fitted to all inlets and outlets which penetrate the hull below the
waterline. The hull area around the penetration point is reinforced with an internal
plywood backing plate which is resin coated and bedded on compound. With the
exception of the engine cooling system inlet, all current Moody yachts are fitted
with a ball valve combined with a skin fitting.

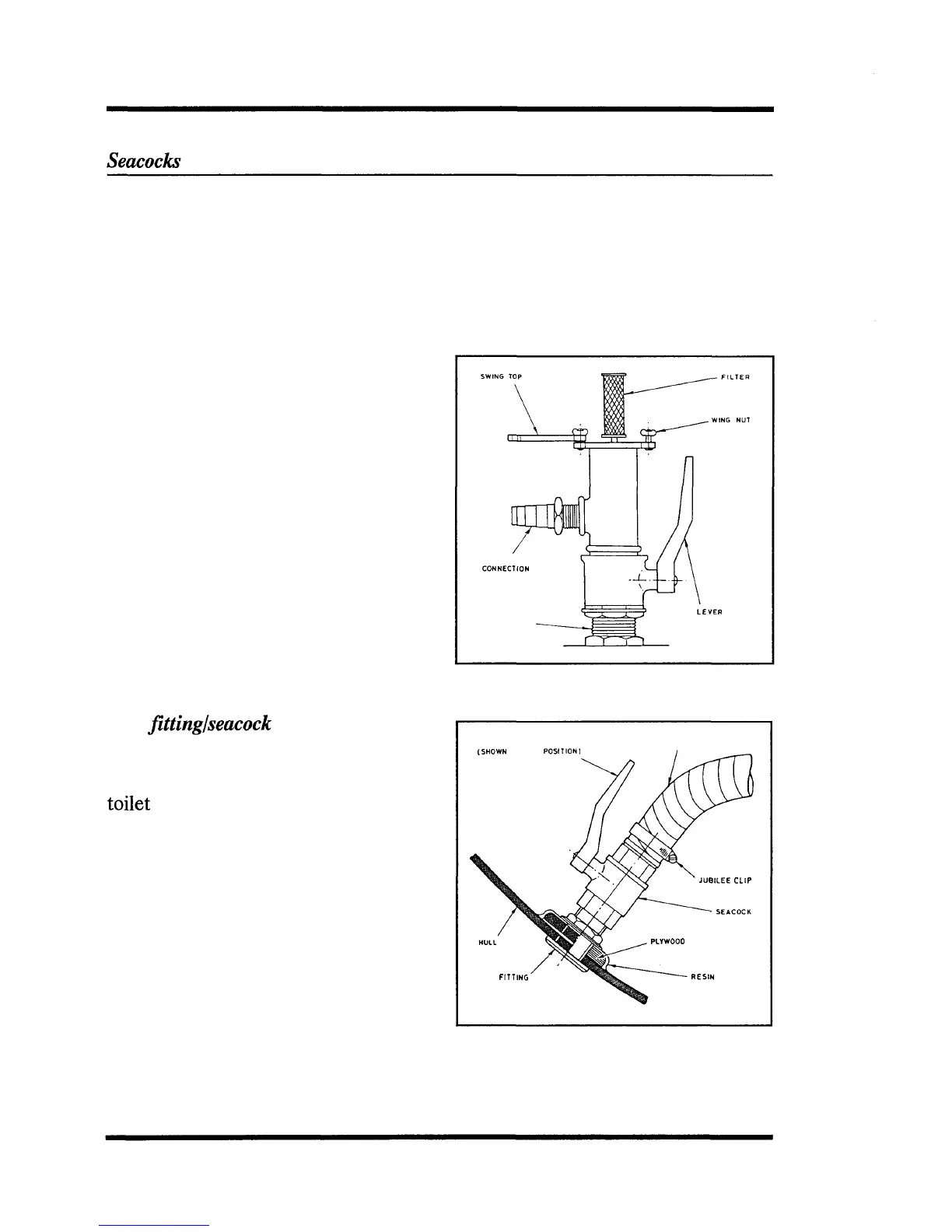

Water inlet seacock and strainer
This type of seacock is fitted to the engine
cooling system inlet and it is operated as
follows:
1 To open - turn the knob anticlockwise
2 To close - turn the knob clockwise
Skin
fittingi'seacock
This type of seacock is used for sink,
shower and cockpit drains and marine
toilet
inlet and outlets. It is operated as
follows:
1 To open - turn the lever to align with
the inlet/outlet hose.
2 To close - turn the lever until it is at
right angles to the inlet/outlet hose.
INLET HOSE
CONNECTION
SKIN FITTING
LEVER
(SHOWN IN
OPEN POSITION)
Water inlet seacock and strainer
LEVER
(SHOWN
IN OPEN
POSITION)
REINFORCED HOSE
SKIN
FITTING
JUBILEE
CLIP
PLYWOOD
BACKING PLATE
RESIN
COATING
Skin fittingi seacock
Page 1.2
Issue 3
