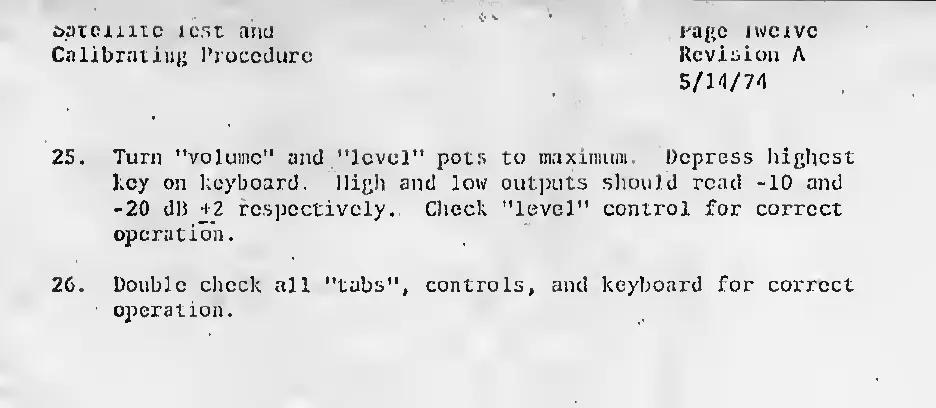

satellite
lest
ana
Calibrating
Procedure
rage
iwe
1
vc
Revision
A
5/14/74
25.
Turn
"volume”
and
"level"
pots
to
maximum.
Depress
highest
key
on
keyboard.
High
and
low
outputs
should
read
-10
and
-20
dB
+2
respectively.
Cheek
"level"
control
for
correct
operation.
26.
Double
check
all
"tabs",
controls,
and
keyboard
for
correct
operation.
