Moog Satellite Service Manual

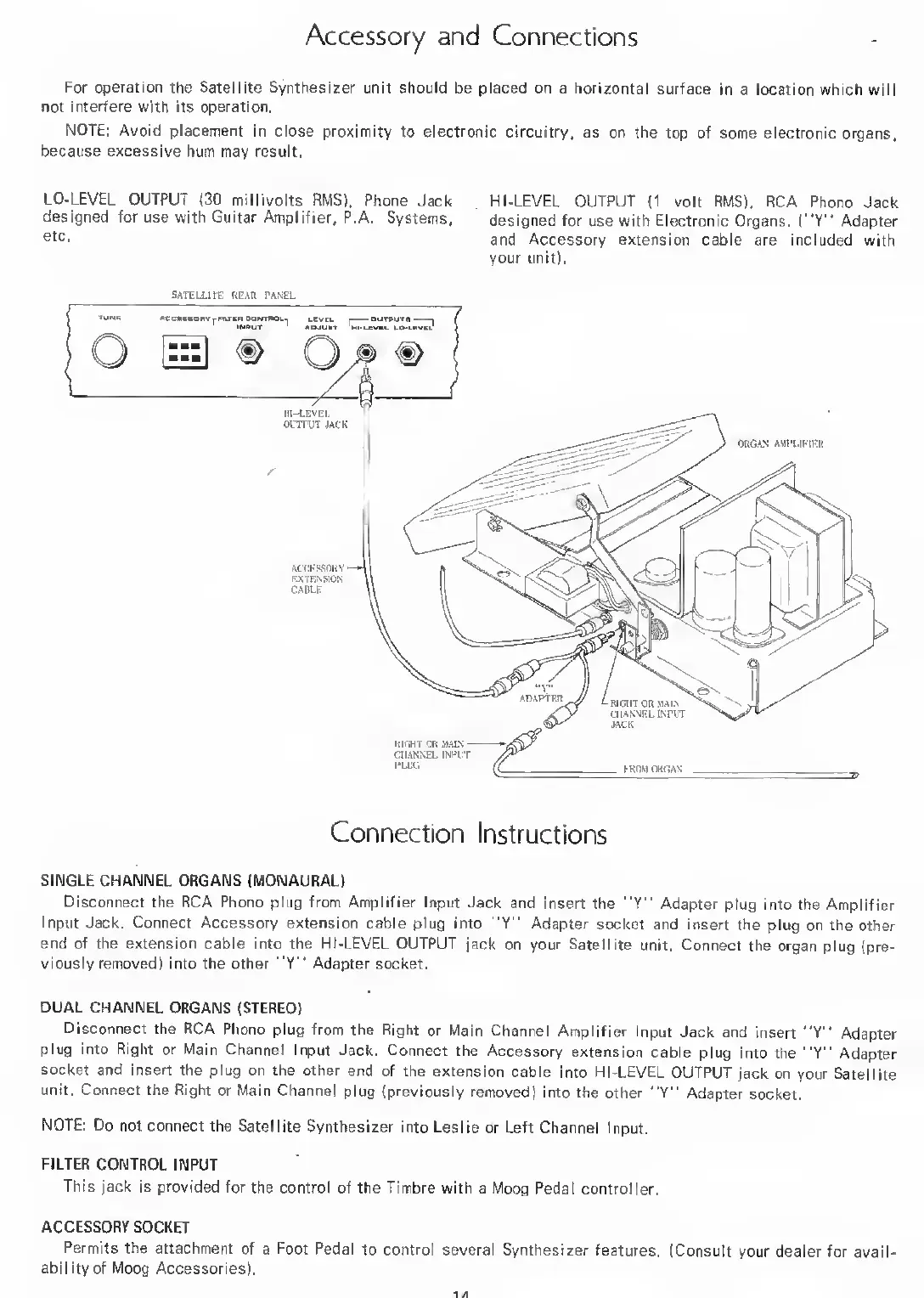

Accessory and Connections
For operation the Satellite Synthesizer unit should be placed on a horizontal surface in a location which will
not interfere with its operation.
NOTE; Avoid placement in close proximity to electronic circuitry, as on the top of some electronic organs,
because excessive hum may result.
LO-LEVEL OUTPUT (30 millivolts RMS), Phone Jack . HI-LEVEL OUTPUT (1 volt RMS), RCA Phono Jack
designed for use with Guitar Amplifier, P.A. Systems, designed for use with Electronic Organs. ("Y" Adapter
etc - and Accessory extension cable are included with
your unit).
satellite; rear panel
Connection Instructions
SINGLE CHANNEL ORGANS (MONAURAL)
Disconnect the RCA Phono plug from Amplifier Input Jack and insert the "Y” Adapter plug into the Amplifier
Input Jack. Connect Accessory extension cable plug into "Y” Adapter socket and insert the plug on the other
end of the extension cable into the HI-LEVEL OUTPUT jack on your Satellite unit. Connect the organ plug (pre¬
viously removed) into the other "Y" Adapter socket.
DUAL CHANNEL ORGANS (STEREO)
Disconnect the RCA Phono plug from the Right or Main Channel Amplifier Input Jack and insert "Y" Adapter
plug into Right or Main Channel Input Jack. Connect the Accessory extension cable plug into the "Y” Adapter
socket and insert the plug on the other end of the extension cable into HI-LEVEL OUTPUT jack on your Satellite
unit. Connect the Right or Main Channel plug (previously removed) into the other "Y” Adapter socket.
NOTE: Do not connect the Satellite Synthesizer into Leslie or Left Channel Input.
FILTER CONTROL INPUT
This jack is provided for the control of the Timbre with a Moog Pedal controller.
ACCESSORY SOCKET
Permits the attachment of a Foot Pedal to control several Synthesizer features. (Consult your dealer for avail¬
ability of Moog Accessories).
