Check the contents of the shipping carton. Be careful when unpacking your new Moog Spectravox so
that nothing is lost or damaged. We recommend saving the carton and all packing materials in case
you ever need to ship the instrument for any reason.
Spectravox ships with the following items:
Spectravox Semi-Modular Analog Spectral Processor
Power Supply
Patch Sheet Overlays
Owner’s Manual
Patch Cables
Registration Card
What you will need:
Headphones with a 1/4” TRS plug, or a 1/4” TS instrument cable and an amplified speaker
A properly wired AC outlet
1.
2.
3.
4.
5.
6.
1.
2.
Power Supply
Amplifier or Headphones
UNPACKING & INSPECTION

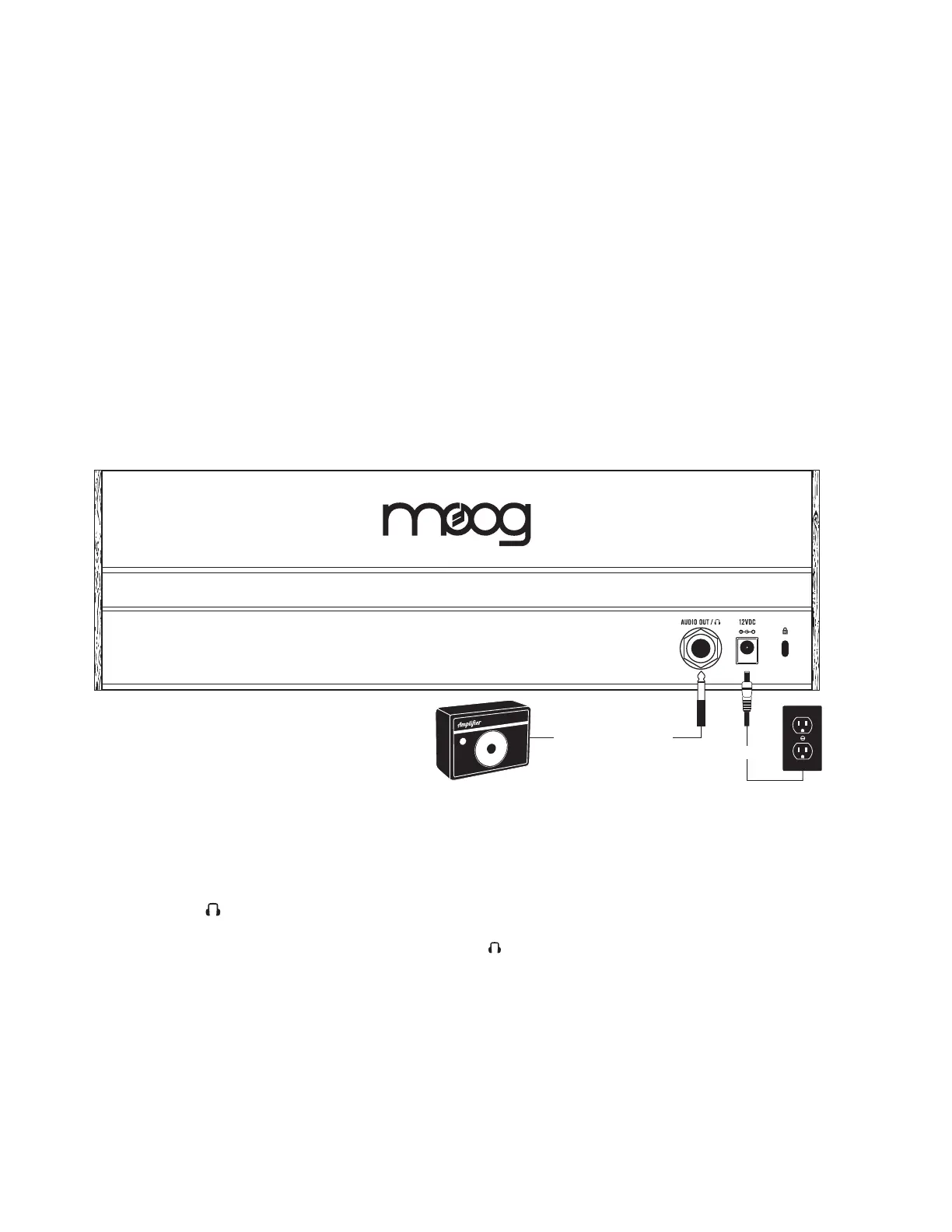

SETUP & CONNECTIONS
POWER
Plug the included power adapter into the
12VDC power jack on the rear panel of your
Spectravox.
NOTE: There is no power switch on your Spectravox. Once connected to the power supply, the unit is on.
Spectravox is an analog instrument and should be allowed a few minutes to warm up before use. In cases where it
has been left in a cold car overnight, for example, it may take even longer for the oscillator tuning to stabilize. For
optimized tuning do not operate your Spectravox in direct sunlight.
AUDIO OUT /
With the Spectravox VOLUME knob turned all the way down (counterclockwise), plug one end of a
1/4” instrument cable into the Spectravox AUDIO OUT / jack on the rear panel. Then plug the other
end into an amplified speaker or mixing console input. This jack can also be used with a set of mono or
stereo headphones, providing the same signal to each ear. Now, raise the VOLUME knob (clockwise) to
bring the sound to an appropriate level.
WARNING: Do not use a TRS (balanced) cable for line output applications, as this will cause phase cancellation
and can produce a very weak signal.
KENSINGTON SECURITY SLOT
Your Spectravox can be securely attached to a desk, stand, or other fixture by connecting a
Kensington security device to this slot.
