Moog Sub Phatty User Manual

7
UNPACKING AND INSPECTION
Check the contents of the shipping carton
Be careful when unpacking the Sub Phatty so that nothing is lost or damaged. Moog recommends
saving the carton and all packing materials in case you ever need to ship the instrument for any reason.
The Moog Sub Phatty ships with the following items:
1. Sub Phatty synthesizer
2. Power cord
3. Owner’s manual
4. Registration card
What you will need:
1. A stand or table sufficient to support the Sub Phatty
2. Either a 1/4 inch instrument cable and amplified speakers or headphones with a 1/4” inch plug
3. A properly wired AC outlet

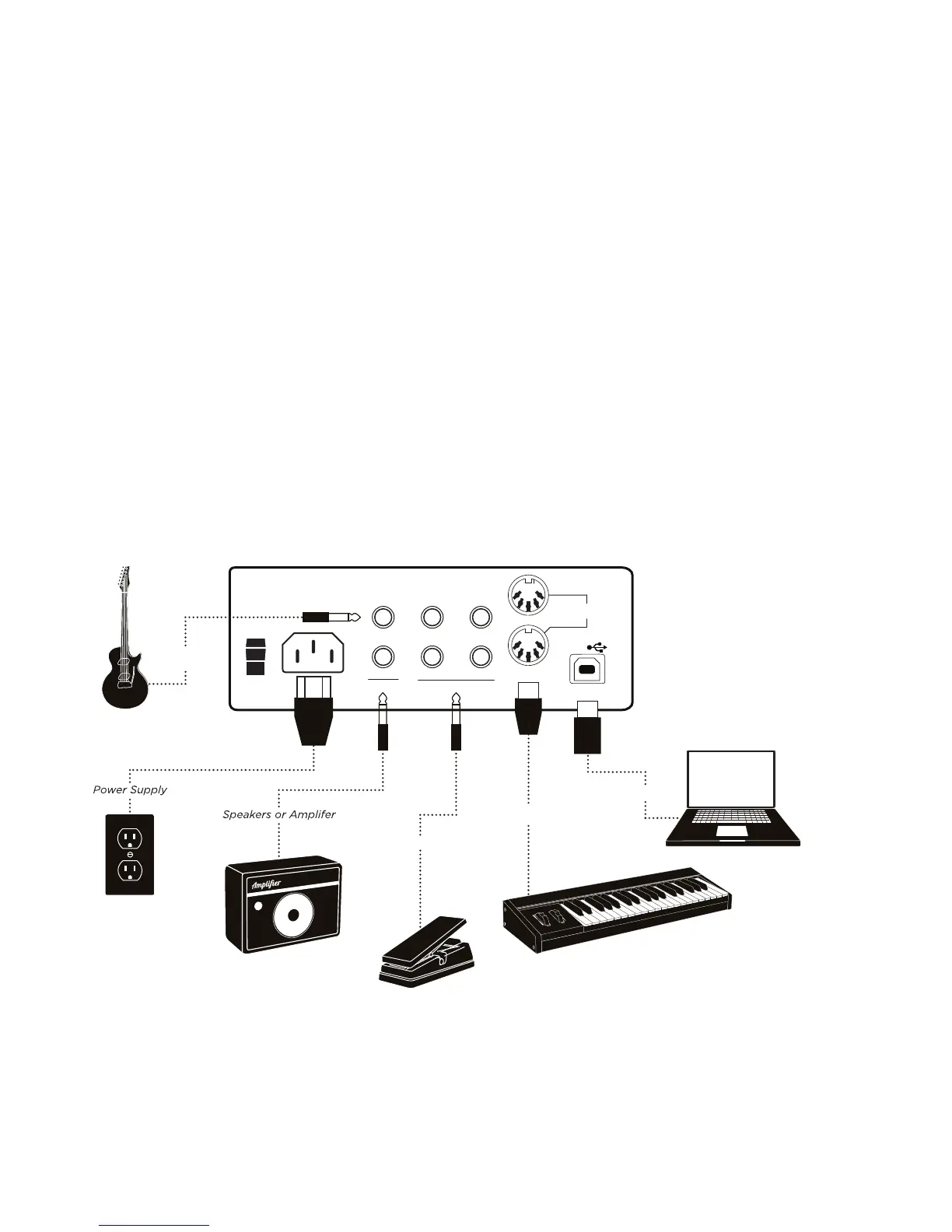

SETUP AND CONNECTIONS
Place the Sub Phatty on a stable surface such as a table or keyboard stand at a height suitable for
playing comfortably.
I
O
EXT IN
OUT
AUDIO
INPUT
PITCH CV VOL CV
USB
MIDI
OUT
IN
FILTER CV KB GATE
Control Voltage
5 Pin DIN MIDI
USB MIDI
External
Audio in

Moog Sub Phatty Specifications

General

Type	Analog Synthesizer
Polyphony	Monophonic
Arpeggiator	No
External audio input	Yes
Oscillators	2 x Variable Waveshape Oscillators
Waveforms	Sawtooth, Square, Pulse, Triangle
Keyboard	25-note
LFO	Triangle, Square, Sawtooth
Envelopes	2 ADSR Envelopes
Connectivity	USB, MIDI In/Out
Audio Outputs	1 x 1/4"
Headphone Output	1/4"
Filter	Ladder Filter (20Hz-20kHz)
