Inputs

VCO 1 (R1, C1)

Controls the frequency of VCO 1

SEQ 1 can be patched to this input with

the SEQ 1 ASSIGN buttons, but you can

also connect SEQ 2 here, the VCA/VCF EG

here for envelope modulation, or VCO 2

for frequency modulation.

VCO 1 SUB (R1, C2)

Controls the subdivision frequency of

both sub-oscillators of VCO 1

SEQ 1 can be patched to either SUB with

the SEQ 1 ASSIGN buttons. Try patching

VCO 2 or any of its sub-oscillators in here

for frequency modulation, or slow down

the VCA and VCF envelopes and connect

them here to run up and down the

subharmonic scale.

VCO 1 PWM (R1, C3)

Controls the pulse-width of VCO 1

Connect either envelope here for

traditional envelope pulse-width

modulation, a sequencer here for dierent

timbres on each step, or the VCA output

for feedback-like harsher timbres.

VCA (R2, C4)

Controls voltage input for the VCA

The VCA EG is normalled here, but by

patching either SEQ in here you can get

per-step velocity changes, or patch a

VCO here for amplitude modulation.

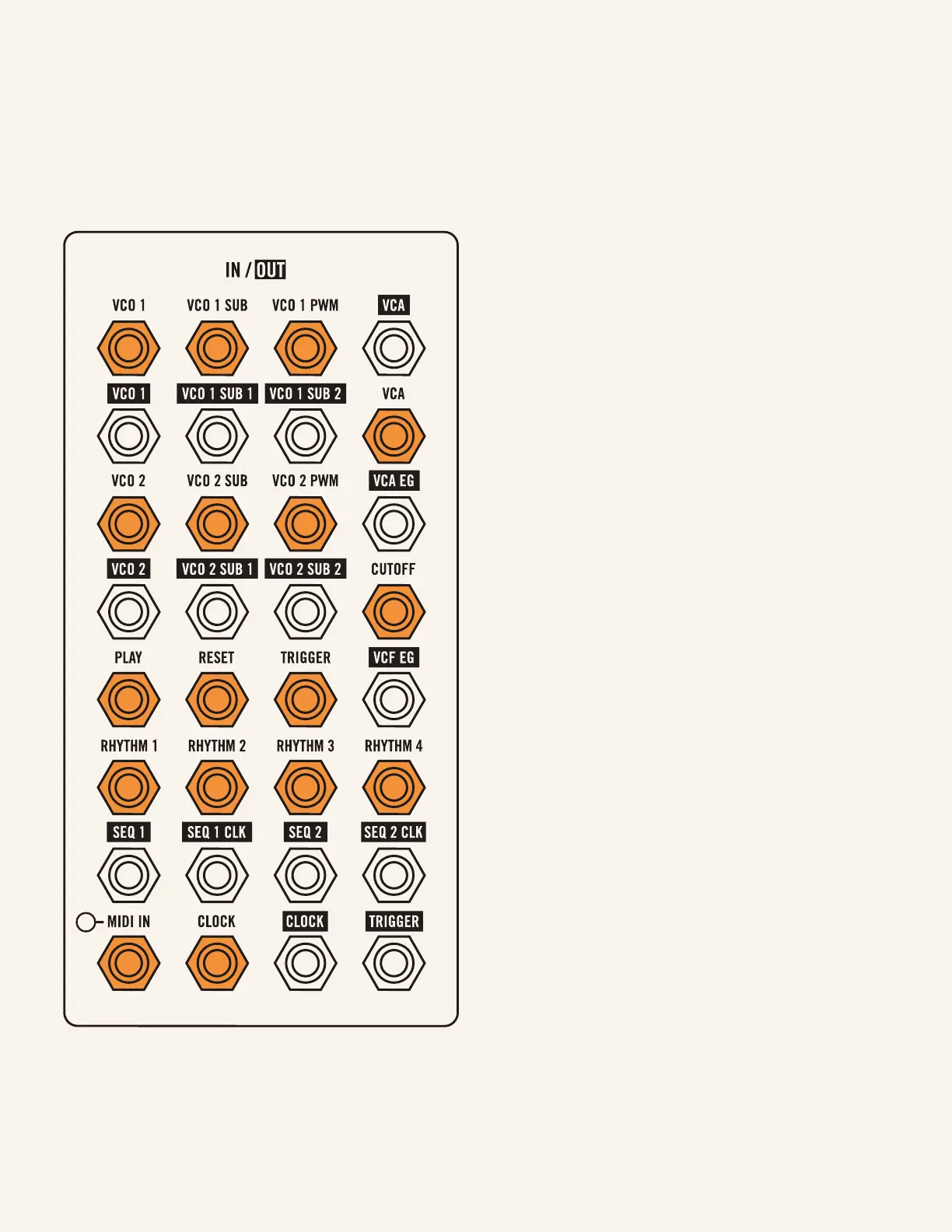

Listed in order left to right by row;

R (Row) and C (Column)
