Mooney M20C - Fuel Identification Decal Application; Purpose of Fuel Decals; Application Process

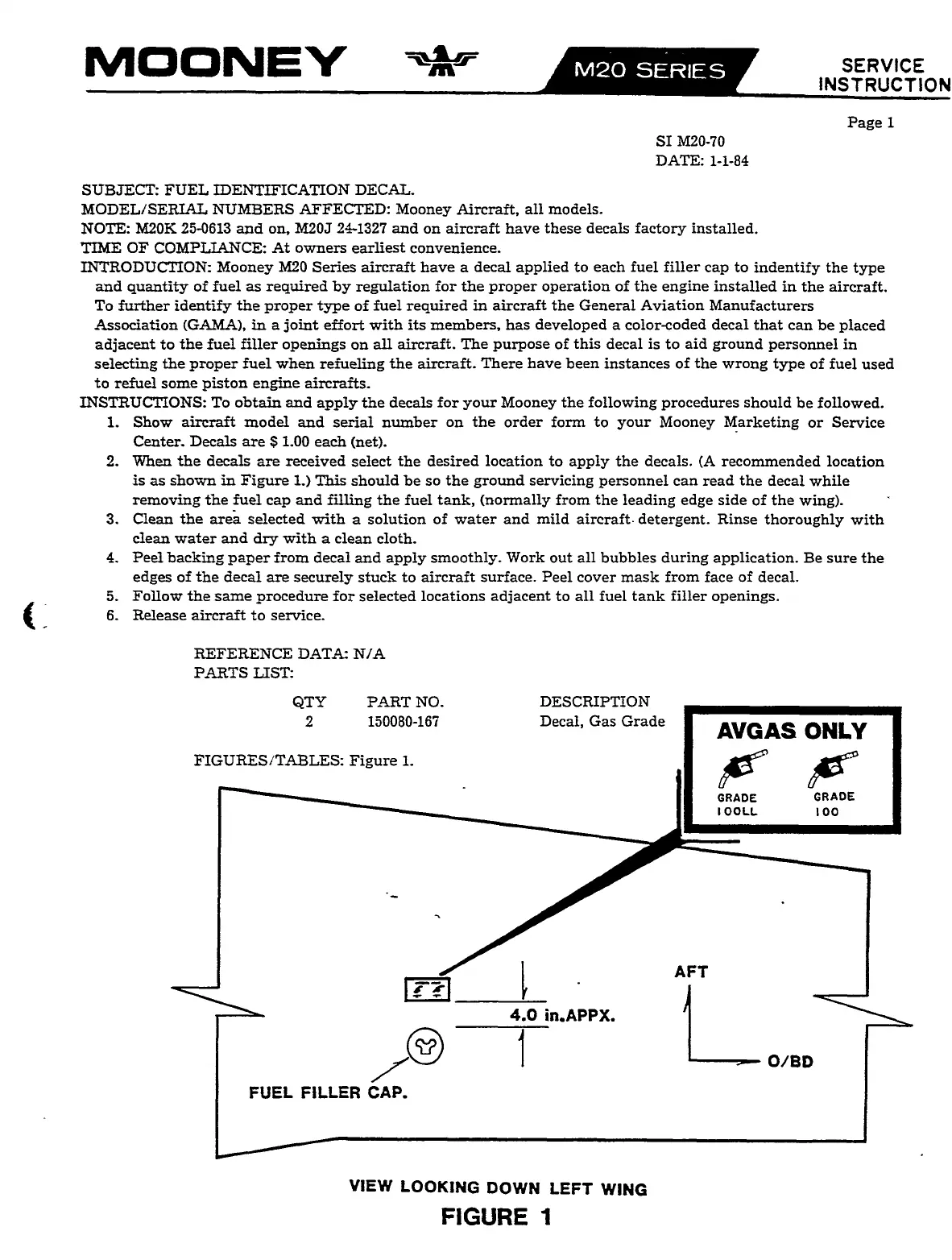

NIOONEY
SERVICE
INSTRUCTIO
Page
1
SI M20-70
DATE:
1-1-84
SUBJECT: FUEL
IDENTIFICATION
DECAL.
MODEL/SERIAL NUMBERS
AFFECTED:
Mooney
Aircraft,
all
models.
NOTE: M20g
25-0613
and
on,
M20J 24-1327 and
on
aircraft
have
these
decals
factory
installed.
TIME
OF
COMPLIANCE:
At
owners
earliest
convenience.
INTRODUCTION:
Mooney
M20
Series aircraft have
a
decal
applied
to
each
fuel filler
cap
to
indentify
the
type
and
quantity
of
fuel
as
required
by
regulation
for
the
proper
operation
of
the
engine
installed
in
the aircraft.
To further
identify
the
proper
type
of
fuel
required
in
aircraft
the
General
Aviation
Manufacturers
Association
(GAMA),
in
a
joint
effort
with
its
members,
has
developed
a
color-coded decai
that
can
be
placed
adjacent
to
the
fuel filler
openings
on
all aircraft.
The
purpose
of
this
decal is
to
aid
ground
personnel
in
selecting
the
proper
fuel
when
refueling
the aircraft.
There have
been instances
of the
wrong
type
of
fuel used
to
refuel
some
piston
engine
aircrafts.
INSTRUCTIONS:
To
obtain
and
apply
the
decals
for
your
Mooney
the
following
procedures
should be
followed.
i.
Show
aircraft model
and
serial
number
on
the
order
form
to
your
Mooney
Marketing
or
Service
Center. Decals
are
1.00
each
(net).
2. When
the
decals
are
received
select
the
desired
location
to
apply
the decals.
(A
recommended
location
is
as
shown
in
Figure
1.)
This
should
be
so
the
ground
servicing
personnel
can
read the
decal while
removing
the fuel
cap
and
filling
the fuel
tank,
(normally
from the
leading edge
side
of the
wing).
3.
Clean
the
area
selected with
a
solution
of
water
and mild
aircraft
detergent.
Rinse
thoroughly
with
clean
water
and
dry
with
a
clean cloth.
4.
Peel
backing
paper
from decal
and
apply
smoothly.
Work
out
all bubbies
during
application.
Be
sure
the
edges
of
the
decal
are
securely
stuck
to
aircraft surface.
Peel
cover
mask from face
of decal.
5.
Follow
the
same
procedure
for selected
locations
adjacent
to
all fuel
tank
filler
openings.
6.
Release
aircraft
to
service.
REFERENCE
DATA:NIA
PARTS I;IST:
QTY
PART
NO.
DESCRlPTION
2
150080-167
Decal,
Gas
Grade
AVGAS ONLY
FIGURES/TABLES:
Figure
1.
s~’
GRADE
GRADE
IoOLL
100
AFT
4.0
in.APPX.
CO/BD
FUEL
FILLER CAP.
VIEW
LOOKING
DOWN
LEFT
WING
F1GURE
1
