LATCH JAWS
LOWER LINK
ADJUSTMENT
POINT
ARM
5
BELLCRANK
2
1
8
UPPER LINK
3
SPRING
4
HOUSING
ASSEMBLY
6
SLIDE CAM
7
ADJUSTMENT
9
POINT
10
INSIDE DOOR
HANDLE
DOOR HINGES
INNER DOOR
SHELL
REF:
OUTER DOOR
SHELL
REF:
11
ILLUSTRATION SHOWS BOTH HALVES
APART FOR CLARITY
RIVETS
CLEVIS PIN
WASHER
COTTER PIN
BRACKET
MOUNTING
SCREWS
CONTROL
CABLE
MOUNTING
BOLTS
LATCH
ANCHOR
PLATE
BRACKET
CONTROL
CABLE
MOUNTING
SCREWS
INNER DOOR
HANDLE
OUTER DOOR
HANDLE
(BONDED)
HOLD OPEN
ARM MOUNTING
MOUNTING
SCREWS
DOOR HANDLE

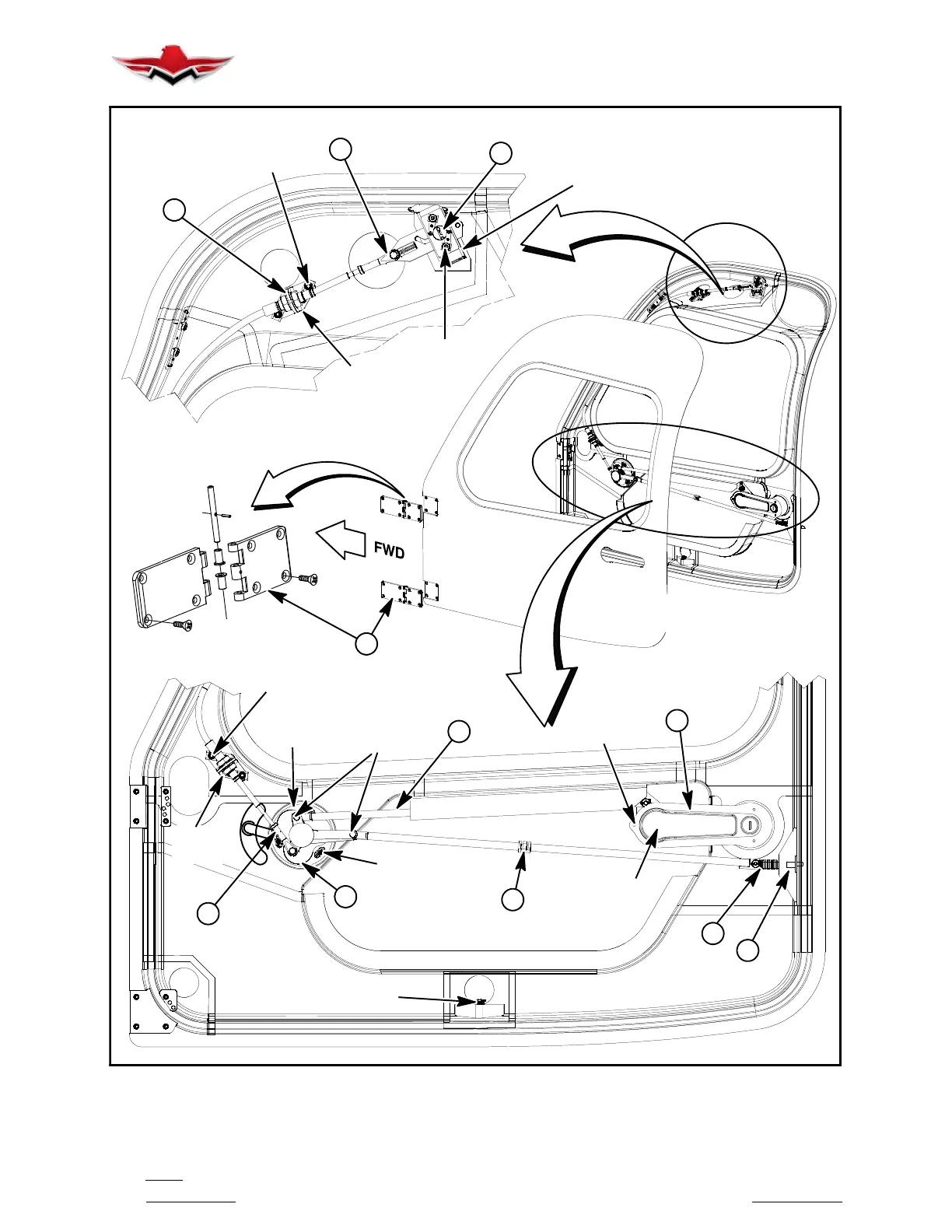

CABIN DOORS (PILOT SIDE SHOWN) - RIGGING/ADJUSTMENT
FIGURE 52- 2
