MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Date
MAR 2017
Rev Date
Page
12
53-50-03 - ENGINE MOUNT ATTACH POINTS
The engine mount is attached to hard points built into
forward portion of tubular structure.
The upper and outboard, lower hard points (1) & (2)
(Figure 53- 8) are for NAS1304 bolts installed for ten-
sion loads. Lower hard points (3) are for shear loads
and are used in conjunction w/ attachment of nose
landing gear lower truss assembly (Figure 53- 8). AN6
bolts are installed at this location. Lower hard points (4)
are for fittings outside firewall which allow a clevis on
each side of engine mount to be attached for shear
loads. AN4 bolts are used for this application.
1
1
3
2
4

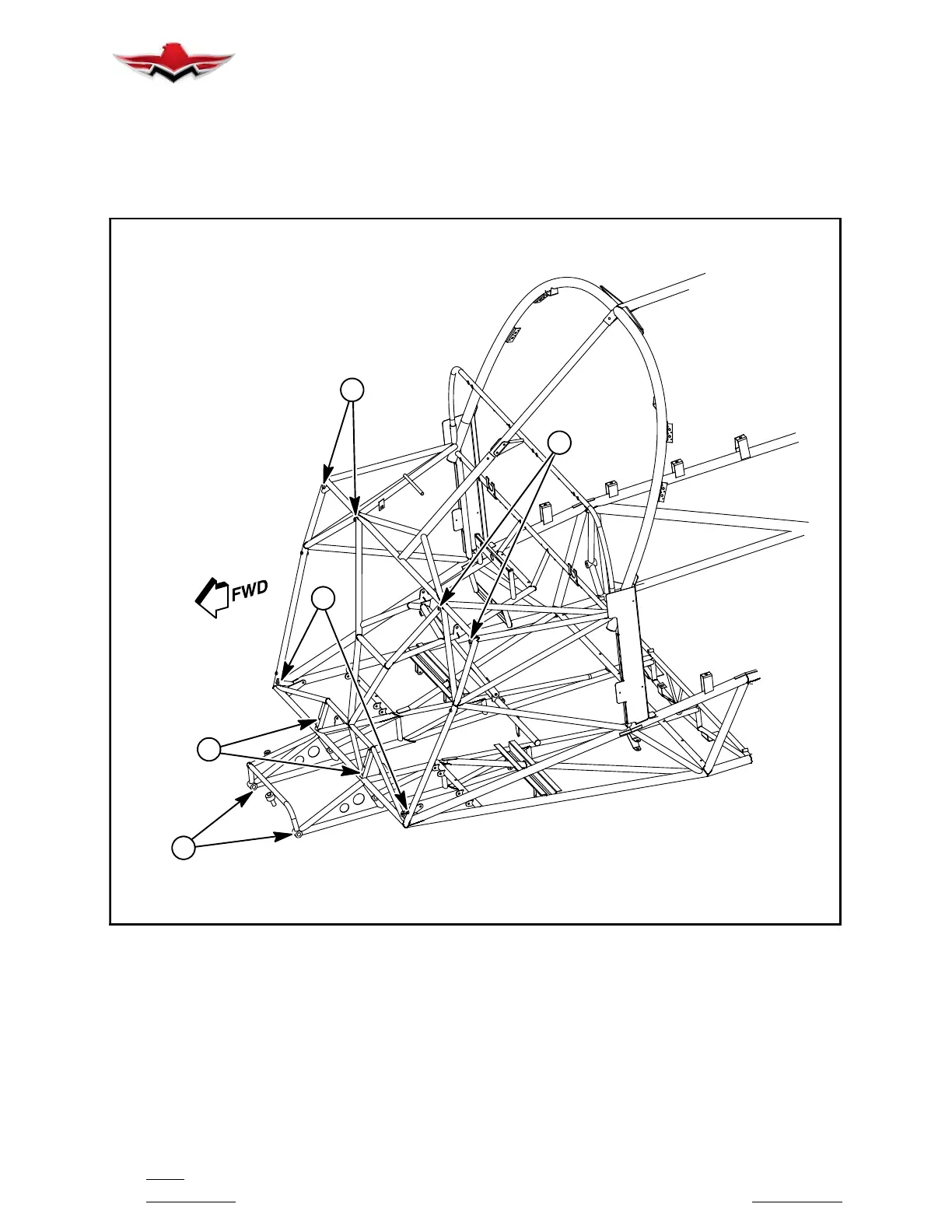

ENGINE MOUNT ATTACHING POINTS
FIGURE 53- 8
53-50-03
