MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Date
MAR 2017
Rev Date
Page
11
SAFETY WIRE
AS REQUIRED
BOTH PLACES
HINGE PIN
COTTER PIN
TRIM LINK
WASHER (SHIM)
NUT
WASHER
WASHER
BUSHING
BOLT
BOLT
WASHER
NUT
BOLT
WASHER
WASHER
NUT
REF:
MOUNTING CLIP
REF:
VARIABLE DOWN
SPRING ROD
NOTE: THERE ARE SMALL SHIMS, THESE MUST
GO BACK IN THE SAME WAY UPON ASSEMBLY
HINGE PIN

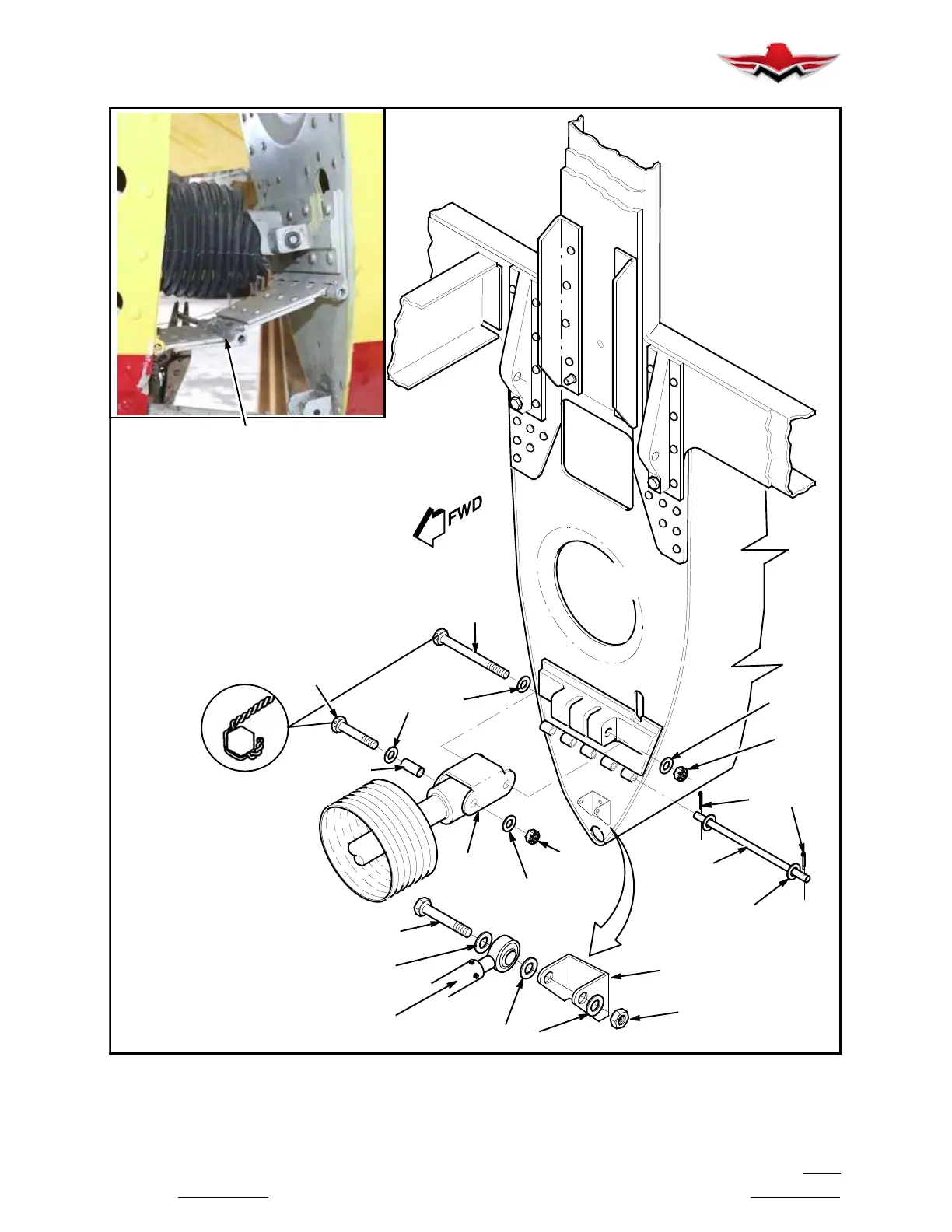

LOWER EMPENNAGE/TAILCONE ATTACHING POINTS
FIGURE 53- 7
53-50-02
