MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Date
MAR 2017
Rev Date
Page
11
4 PLACES
DETAIL D
DETAIL C
1
3
4
5
7
3
4
2
4
8
7
3
BOLT
FLATWASHER
LOCKNUT
COTTER PIN
FLATWASHER
BOLT
FLATWASHER
LOCKNUT
FLATWASHER
FLATWASHER
4
3
4

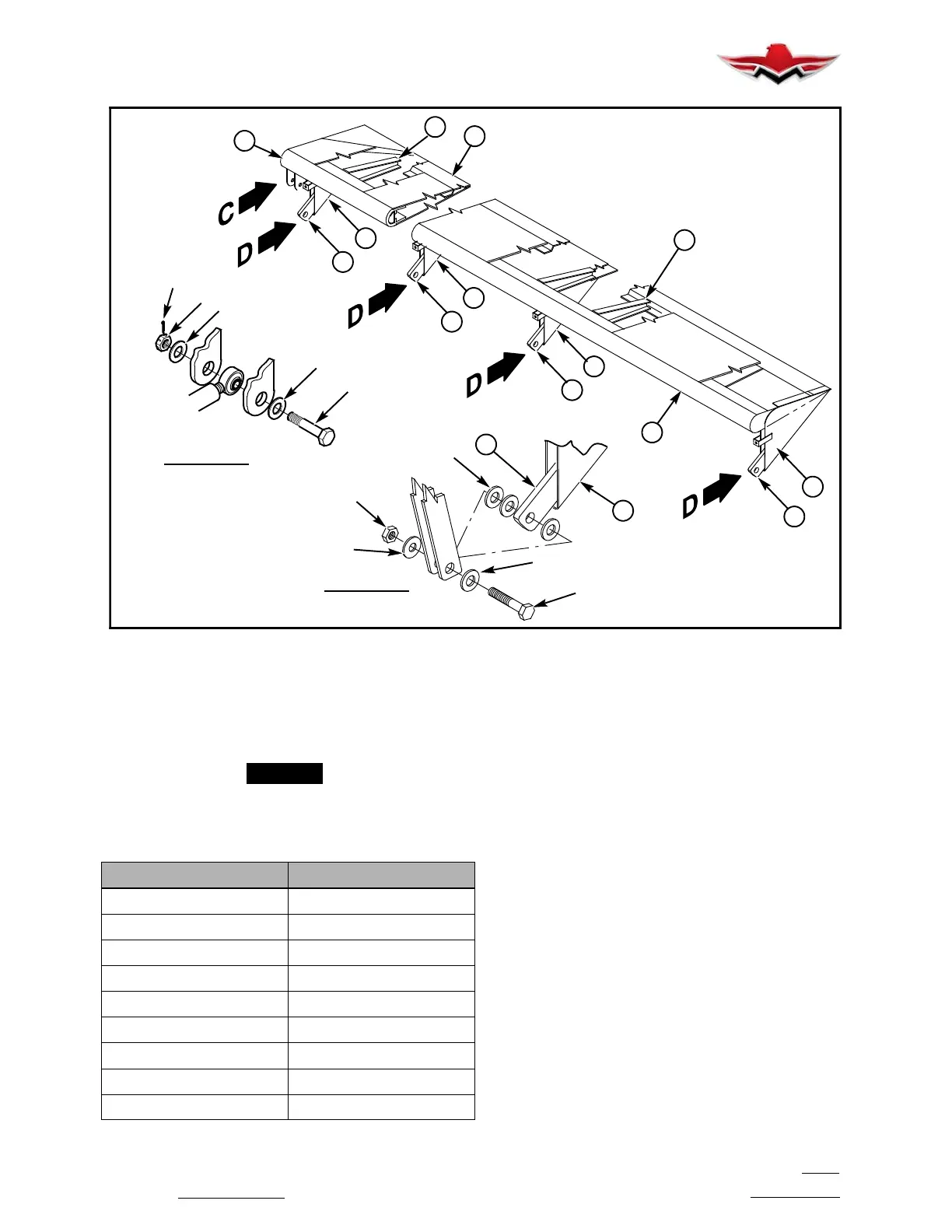

FLAP ASSEMBLY
FIGURE 57-7
57-50-21 - AILERON REMOVAL AND
INSTALLATION
Refer to Section 27-10-00 for removal, installation &
balancing procedures.
-NOTE-
The following rivets are to be used when replac-
ing existing flush rivets for the installation of
trailing edge ribs per wing stations as follows:
WING STATION RIVET USED
20.25 MS20426AD4 (4 PLCS)
103.50
147.75
43.50 CR- 3213- 4- 1 (4 PLCS)
74.00
88.75
118.25
133.00
59.25 MS20426AD4 (7 PCS)
57-50-21
