MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Date
MAR 2017
Rev Date
Page
6
For Operation, Maintenance and Troubleshooting, re-
fer to Garmin publications.
77-30-00 - PRESSURE INDICATING
77-30-01 - OIL PRESSURE
Displays pressure in Pounds per Square Inch (PSI).
A. RED - 0 to 10 PSI (Idle)
B.YELLOW- Caution10to30PSI
C. GREEN - Normal 30 to 100 PSI
D. RED - Warning 100 PSI (COLD)
Refer to SECTION 79- 30- 01.
7
6
8
2
3
4
5
9
10
1
EIS Display (M20V)
Ammeter
Voltmeter
Cylinder Head Temperature
Turbine Inlet Temperature
Oil Temperature
Oil Pressure
Fuel Flow Indicator
Fuel Quantity Indicator
RPM Gauge
Manifold Pressure Gauge
10
9
8
7
6
5
4
3
2
1
GARMIN G1000 DISPLAY
PRESS “ENGINE”
SOFT KEY
FOR “EIS DISPLAY”
LH SIDE OF
G1000 DISPLAY

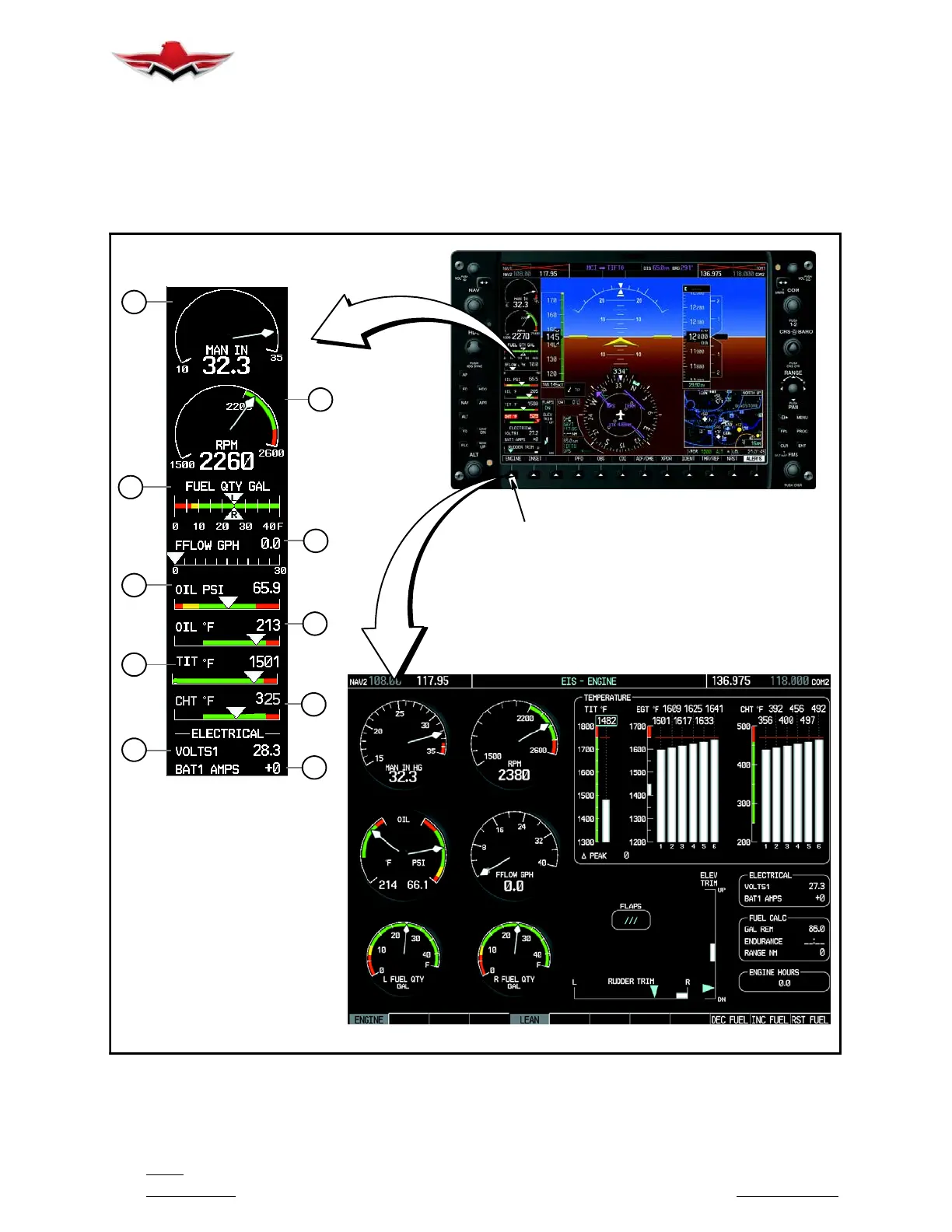

ENGINE INDICATION DISPLAY - G1000 SCREEN
FIGURE 77- 2
77-30-01
