INSTALLATION INSTRUCTIONS
04

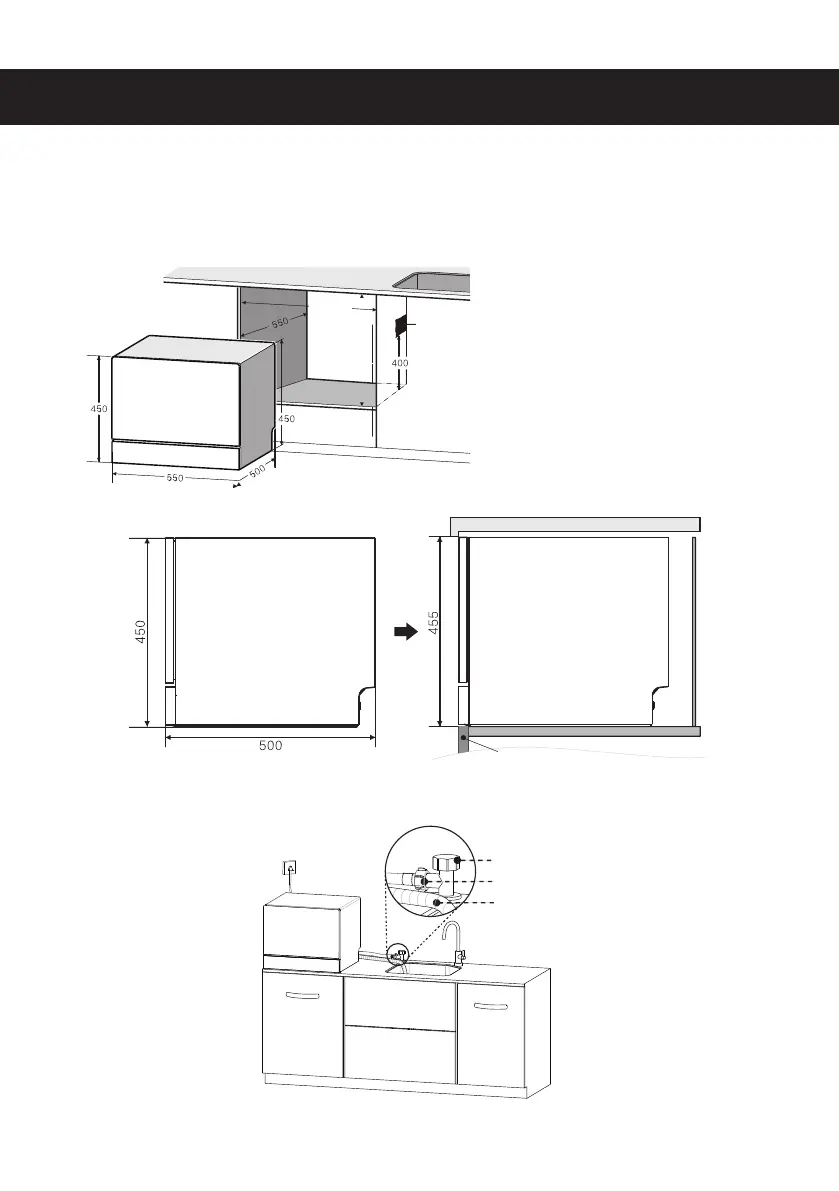

1. The dishwasher can be placed on a flat table or insert into a cabinet
1.1 In a cabinet:
1.2 Free placement on the table; leave a space for opening the door
Dimension diagram(Unit: mm)
455
460
~
Attention:
a. The hole holds drain pipe is up to
the position of sewage system.
b. The material of cabinet should be
heat-resistant and moisture-proof
c. The shade on the side of cabinet
is the recommended area for the
hole holding the drain pie. The hole
size should be 60×60 which is 400
up from the bottom of the cabinet.
555
~
560
Drain pipe
hole size
60×60
Dishwasher
Sink
Side of dishwasher Side of dishwasher
Door of the cabinet
Dishwasher
Figure 1(Injection pipe)
Valve
Convenient port
Drainpipe
