NOTE:Storagebinwiththirdrowseatshown,withoutthirdrowseatsimilar.

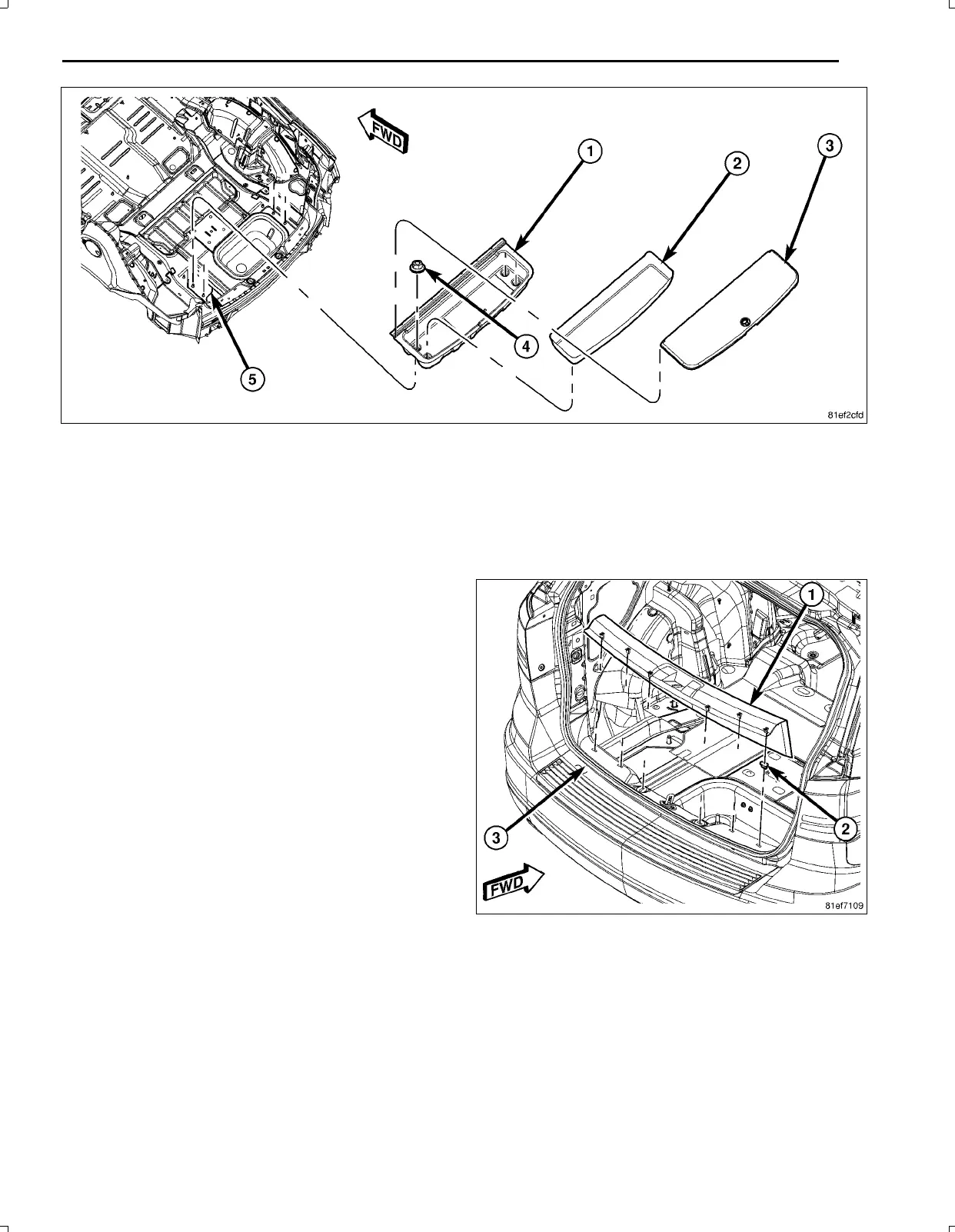

101.Placethestoragebox(1)inthevehicleandinstallthefourstorageboxmountingfasteners(4)..
102.Ifequipped,installthestorageboxliner(2).
103.Ifequipped,installthematorloadfloorassemblycoveringthestoragebox.
104.Ifequippedwithathirdrowseat,positiontheseatbackgaphiderandinstalltheretainersontheseatbackgap
hidertotherearstoragebox.
105.Positiontheliftgatesillplateintothevehicleandhand
taptosecuretheretainingclips.
Feb02,2011K6861161
