K6862043
3/11/14
12

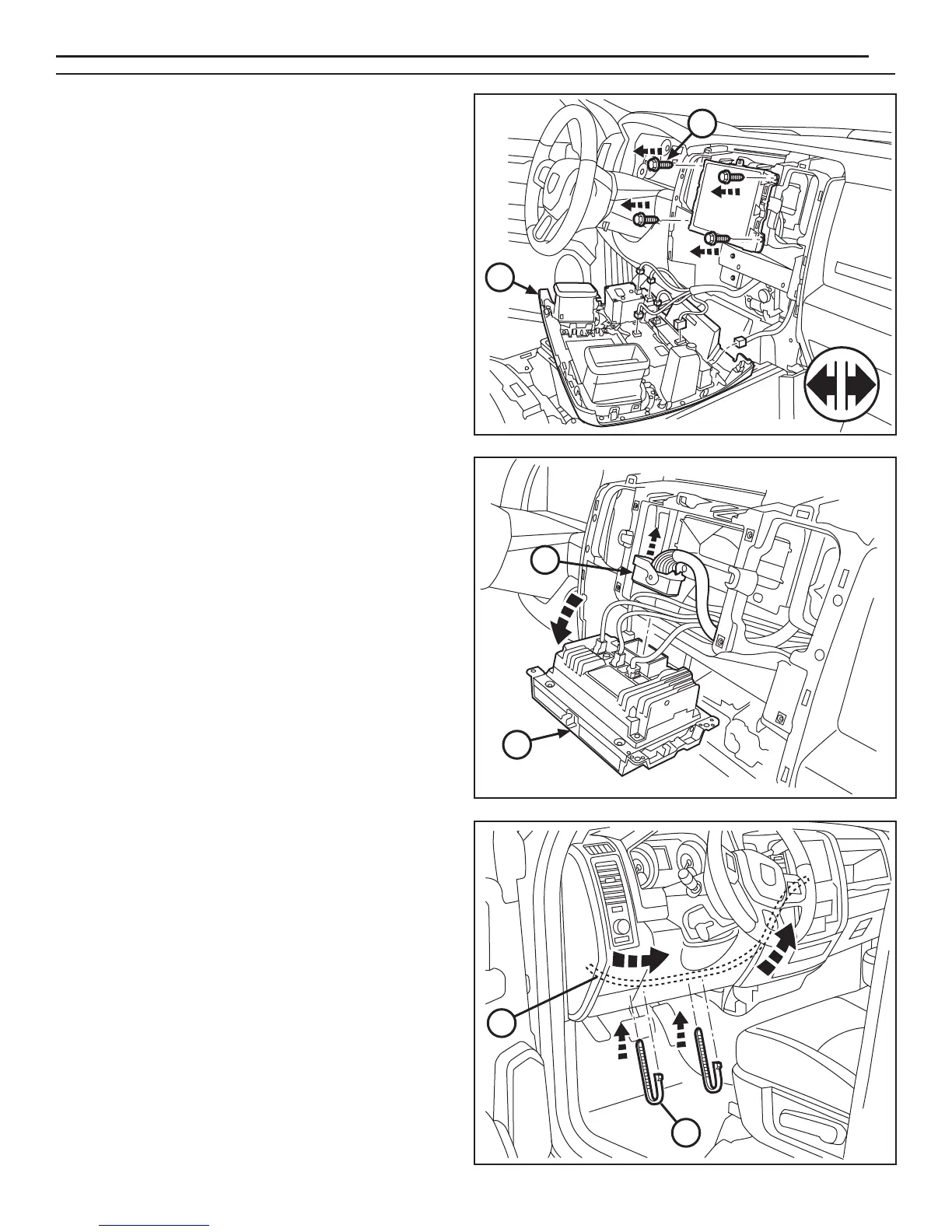

50. Disconnect all plugs from the back of panel (1).
Remove the panel from the vehicle.
51. Remove fasteners (2) from the radio assembly.
52. Remove radio assembly (1) from dash. Unlock the
the 52-way connector (2) at the back of the radio and
disconnect.
53. Route the radio harness (B) under the dashboard and
up to the center stack. Secure harness with cable
ties (H).
NOTE:
Cable ties should be installed no farther
than 100mm apart.
www.mopar.com
2
1
2
1
H
B
To Next Page
