Mora VDP645GB3 - Gas Connection; Electrical Connection; Connection Diagram

The appliance's gas inlet tting is a 1/2« male threaded conic
gas type in accordance with the ISO 7-1 standards. Make the
connection using rigid pipe.

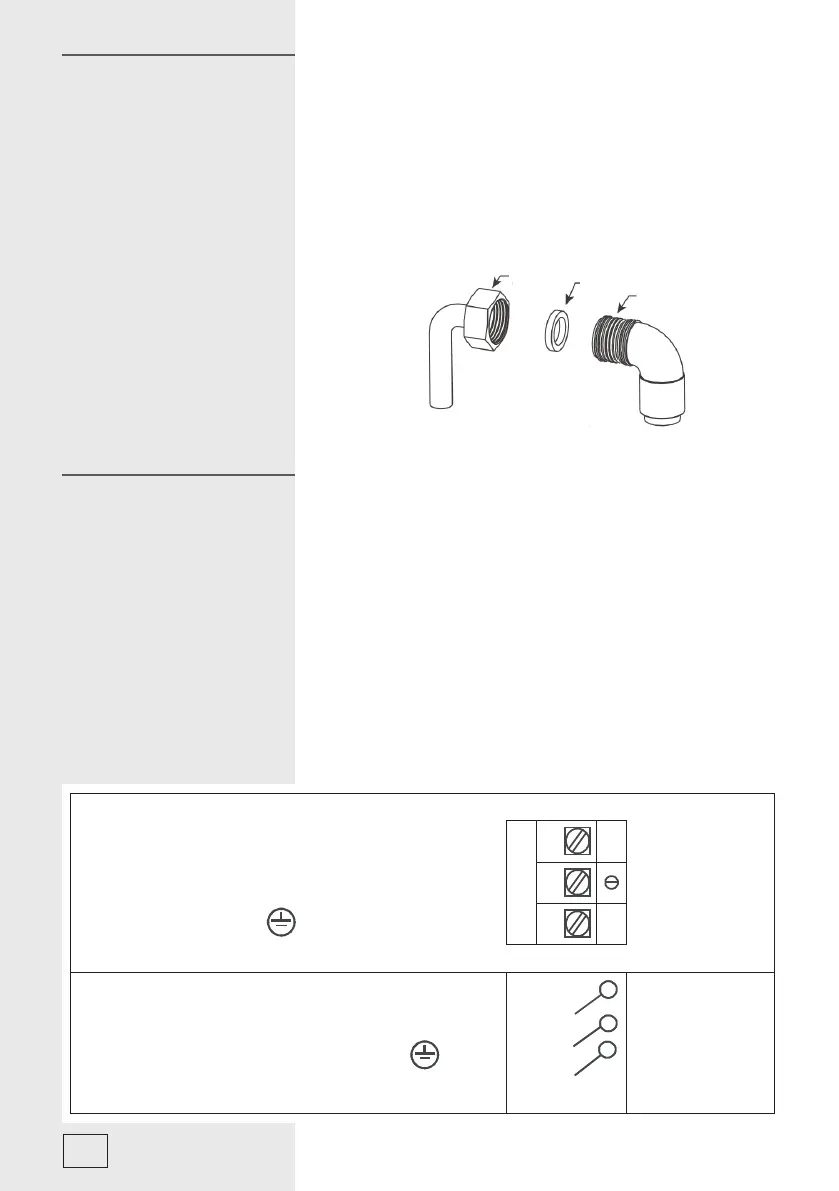

When making the gas connection, it is important to place the
gasket (A) in between the inlet pipe (C) and the elbow (B),
toensure a gas tight seal.
B
A
C
This appliance must be connected by a competent person, using
xed wiring via a double pole switched fused spur outlet with a
fuse rating of 3amps, and with a contact separation of at least
3mm in all poles.
We recommend that the appliance is connected by a qualied
electrician who will comply with I.E.E regulations.
The wires in the mains lead are coloured in accordance with the
following code: Green & Yellow = Earth, Blue = Neutral, Brown =
Live
GAS CONNECTION
ELECTRICAL
CONNECTION
CONNECTION DIAGRAM
Caution! Voltage of heating elements 220 V
Caution! In the event of any connection the safety wire
must be connected to the PE terminal.
Recommended
type of
connection
N
L
For 220 V earthed one-phase connection, bridges connect
L terminals and N terminals, safety PE wire to
N
PE
L
8
