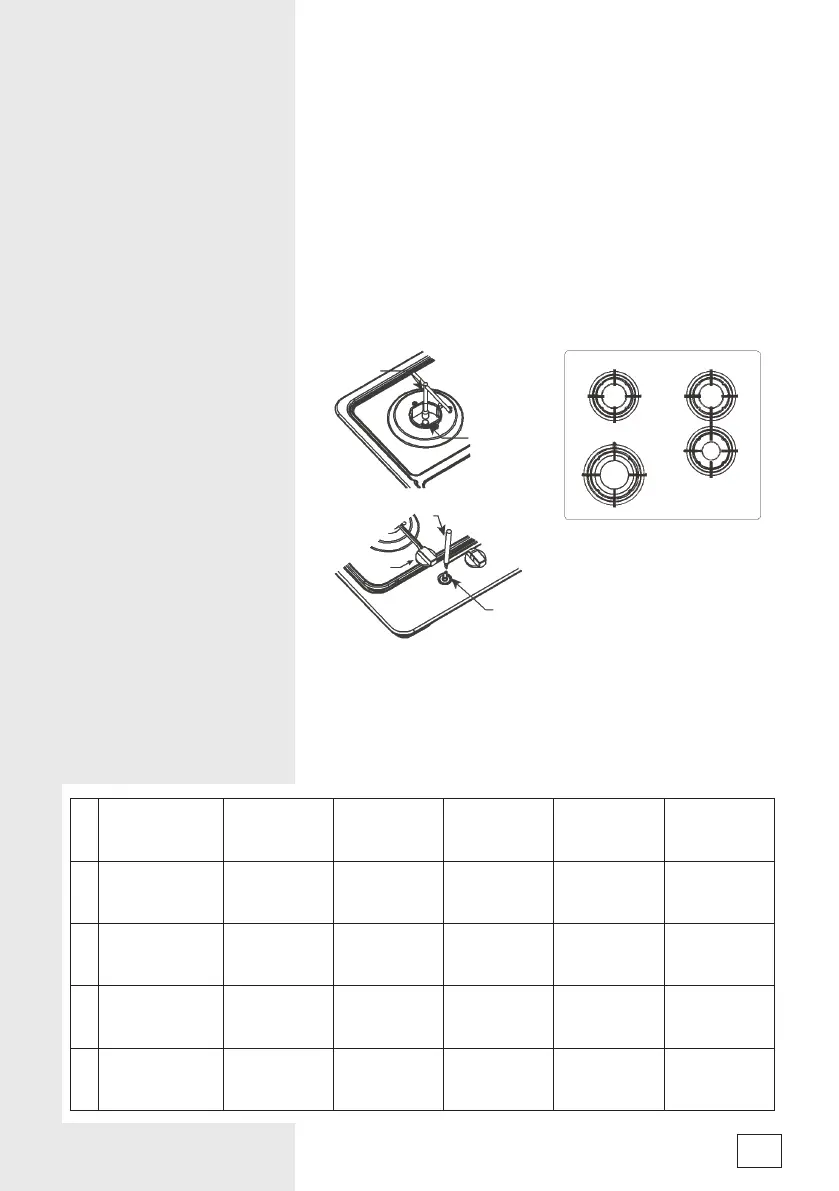

- Replace the injectors with the corresponding injector from the
table on page below. (see g. 6). First remove the burner caps
and rings and with a socket spanner »B«, unscrew Injector
»A« (see g. 6).
- The adjustment of the reduced rate position is as follows (g.
7): Light the burner and turn the knob to reduced rate position.
Remove the knob »M« which is simply inserted onto, tap
stem.I Insert a small screwdriver »D« into the top shaft »C«
and turn the bypass screw left or right until ame of the burner
is conveniently regulated to the low position.
- Make sure that when turning quickly from »Full on« position to
reduced rate position that the burner does not extinguish.
B
A
D
M
C
2
2
3
1
BURNERS GAS
NORMAL
PRESSURE
NORMAL
RATE
INJECTOR
DIAMETER
NOMINAL
HEAT INPUT
(kW)
DESCRIPTION mbar kW
mm
(error±0.01)
MIN.
1 AUXILIARY
BUTANE
PROPANE
NATURAL
28-30
37
20
1
1
1
0.5
0.5
0.73
0.6
0.6
0.6
2 SEMI-RAPID
BUTANE
PROPANE
NATURAL
28-30
37
20
1.75
1.75
1.75
0.68
0.68
0.97
0.8
0.8
0.8
3 RAPID
BUTANE
PROPANE
NATURAL
28-30
37
20
3.0
3.0
3.0
0.85
0.85
1.18
1.2
1.2
1.2
