A.2.- TECHNICAL INSTRUCTIONS FOR INSTALLATION ENGINEERS
A.2.1. Technical information

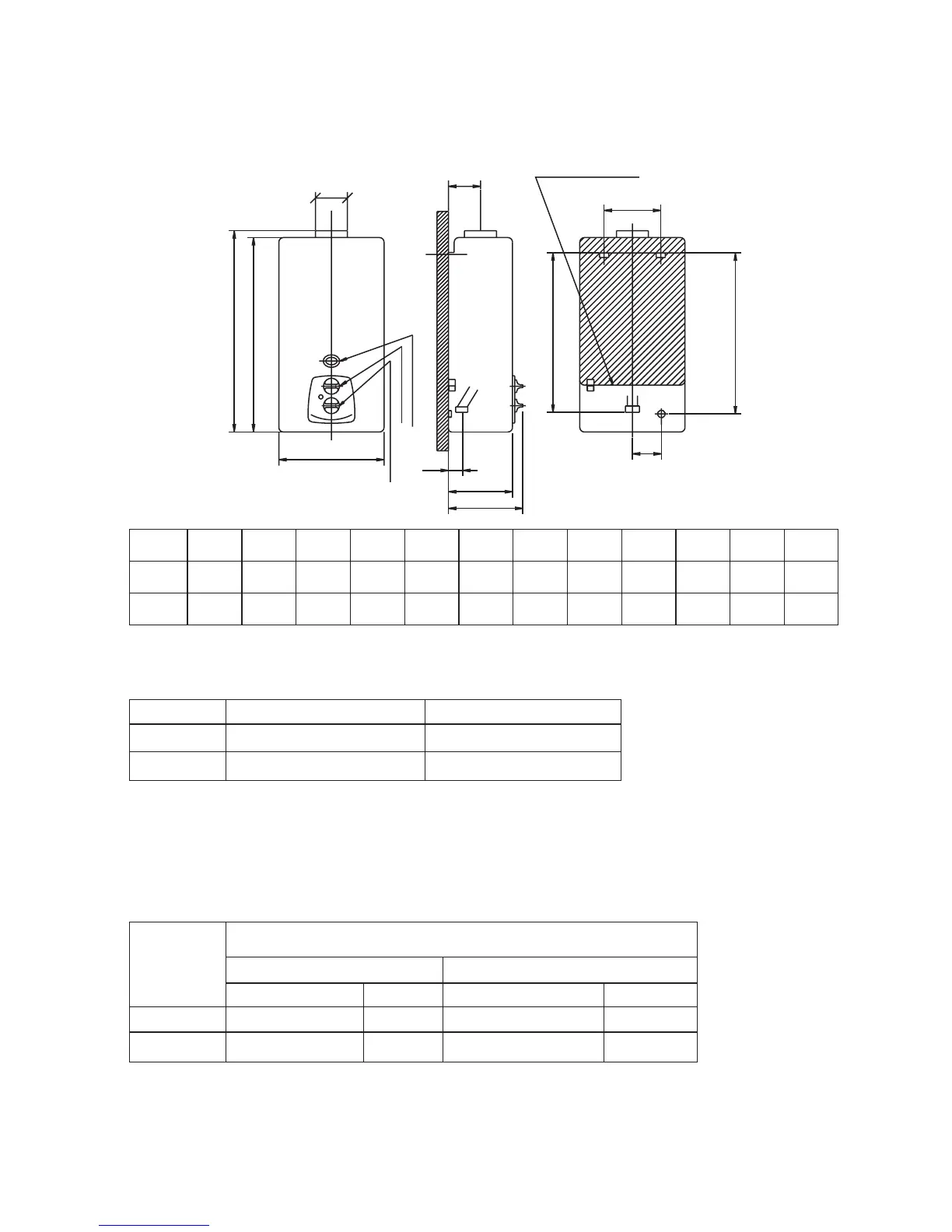

• Shape and outer dimensions
• SPECIFICATIONS
• Available calorific power
• Output in terms of a p.c.i. over 85%
• HOT WATER DELIVERY
The figures quoted are for the appliance at normal operating pressure at minimum
and maximum selector settings.
NOTE: Temperatures are in degrees rise above ambient.
• OPERATING PRESSURE
• Minimum 1bar • Maximum 10 bar
• Water inlet pressure with the appliance working at normal pressure.
Lower of base
CW
GAS
WW
CW
GAS
WW
A
D
C
H
J
øE
F
B
M
Control knob
Temperature selector
Ignition window
G
I.
L
* WW, go connecting with one flexible pipe.
MODELS D61B - D61E G11E
Maximum 9,4 kW (135 kcal/min.) 19,2 kW (275 kcal/min.)
Minimum 5,6 kW (81 kcal/min.) 10 kW (145 kcal/min.)
BACDEFGHIJLM
634310 230 276 110 660 115 235 464 50 456 45G11E
573266 190 236 90 589 97 120 350 50 344 45
D61B/D61E
SELECTOR SETTING
MODELS OPEN CLOSED
Water flow T Water flow T
D61B-D61E 5,4 litres/min. 25ºC 2,7 litres/min. 50ºC
G11E 11 litres/min. 25ºC 5,5, litres/min. 50ºC
