Page 10
CREASING
SECTION 3

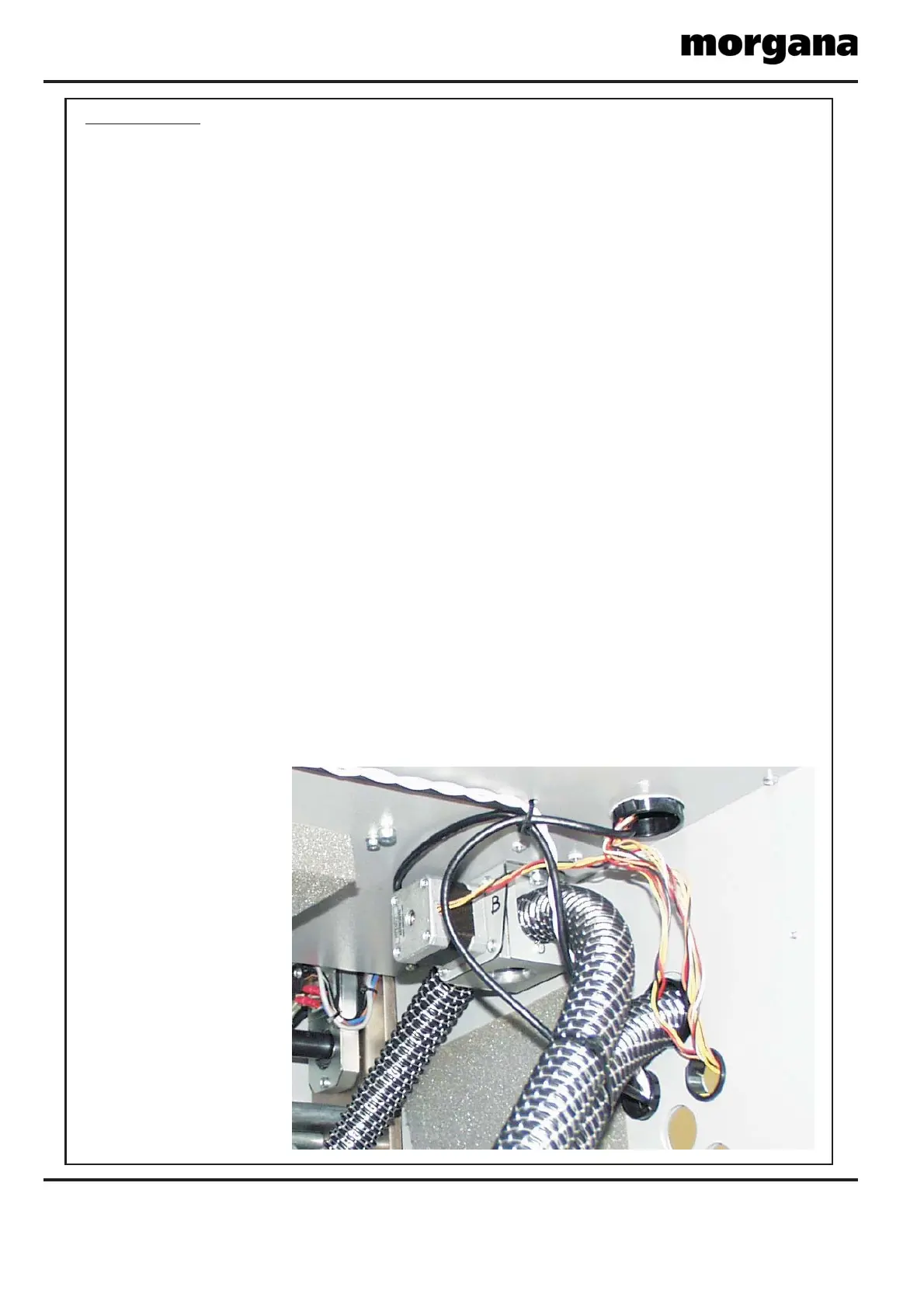

Removal of Butterfly Valve Assembly.
The Butterfly Valve assembly is located on the underside of the feed bed, towards the
back of the machine.
3.1 Remove the two pipe mounting clip plates (ITEM 5 on page 11) so that the hoses can
be detached from the valve.
3.2 Remove the two screws that secure the valve to the underside of the feed bed.
When refitting the valve ensure that the ends of the hoses are clear of nylon fibres and that
the ‘O’ ring is in place.
NOTE.
