SYSTEM
AutoCreaser Pro 33
SECTION 5

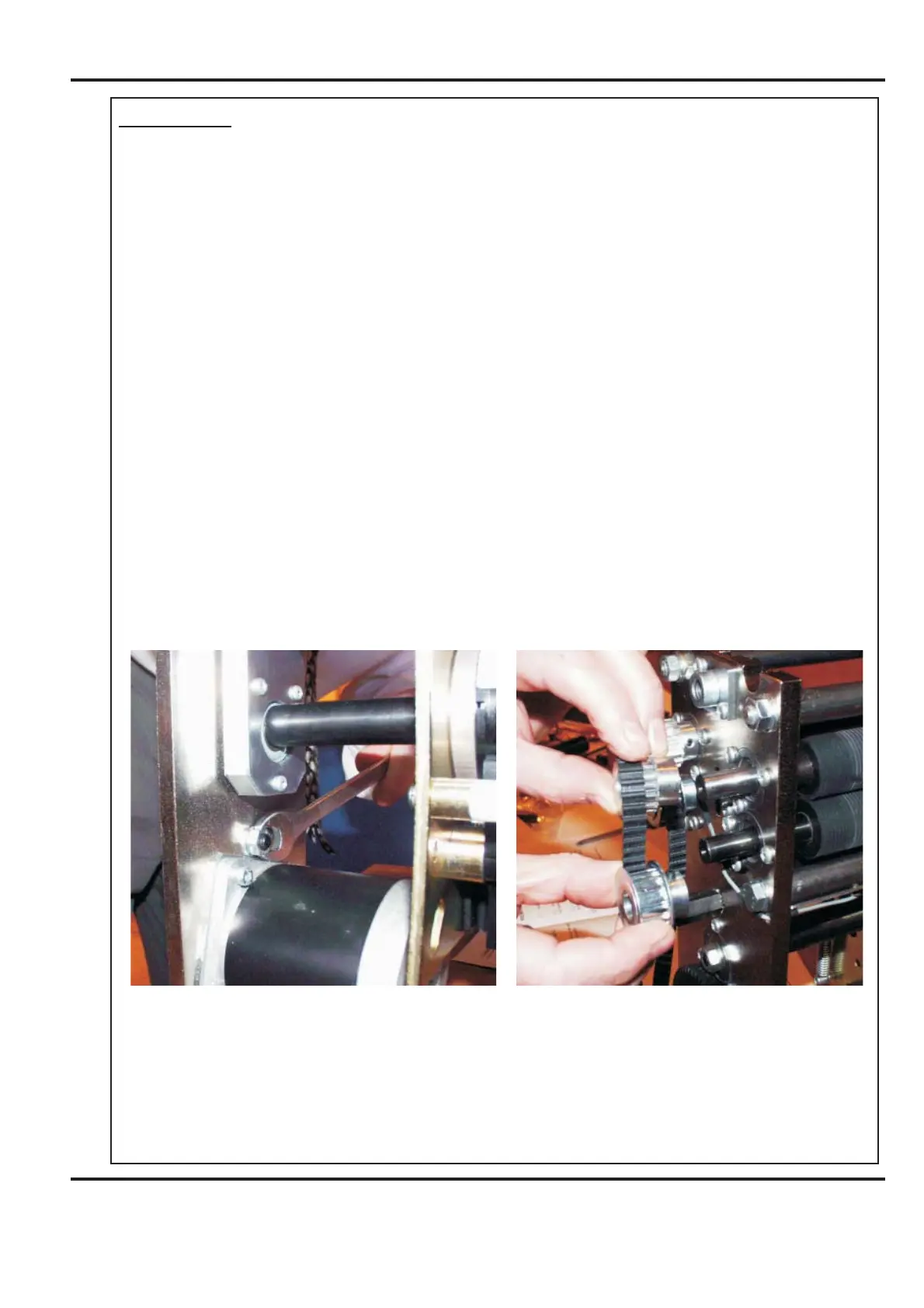

REMOVAL/REPLACEMENT STEPPER DRIVE BELT/
PULLEYS
5.1 Loosen the adjuster nut from the inside unit and slide the belt off.
5.2 Loosen the securing socket set screws in the drive pulley on the roller for it
to be removed ( there is one screw located in a hole in the shaft)
5.3 Refitting the belt is a reverse procedure. To tighten the belt, first adjust the drive
motor down to allow ‘feel’ of belt tightness; then re-adjust the motor / gear mesh
to allow minimum backlash.
NOTE
Page 15
