1.1 .......Guard
The Main Guard is normally opened at the stacker end, and is
pivoted all the way over, until it rests on the feeder. The complete
guard may be removed from the machine by lifting it off it's guides,
as shown in Fig. 1.11
1.2 .......Feed Bed
The Feed Bed slots into position below the feed shaft housing
blocks. When correctly fitted, the Bed will rest flat against the
bottom edge of these blocks. The back of the Bed has to be raised
slightly, so that it can be fitted, and removed, but do not raise it too
high. Ensure that the Bed is fully forward to the stops on both
sides.
The Feed Bed will not fit, if the friction nip wheel ( Fig. 3.11 page 8 )
has been raised or lowered too far. Adjust the wheel accordingly.

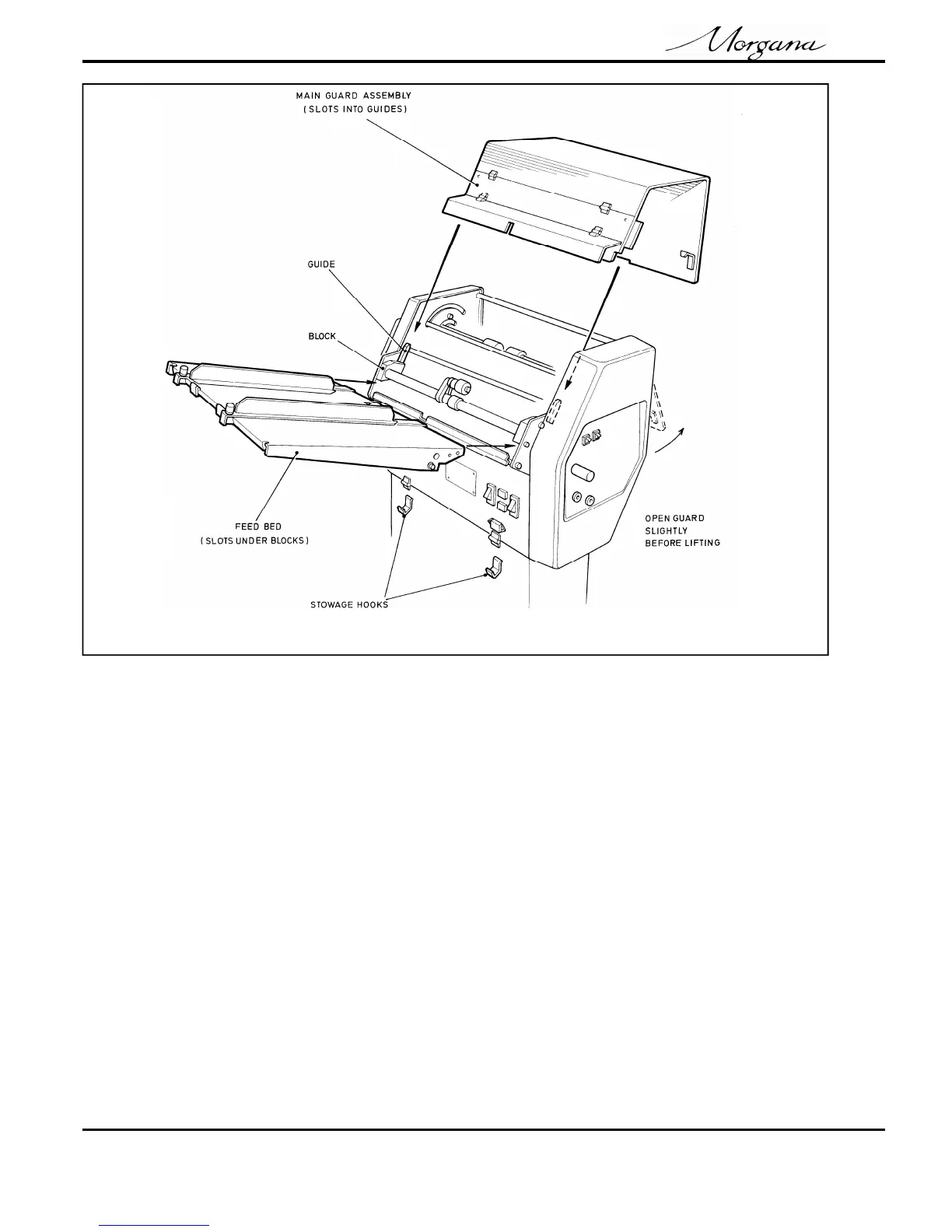

Feed Bed & Guards .................................................... Fig 1.11
