ROTARY
PAGE 8

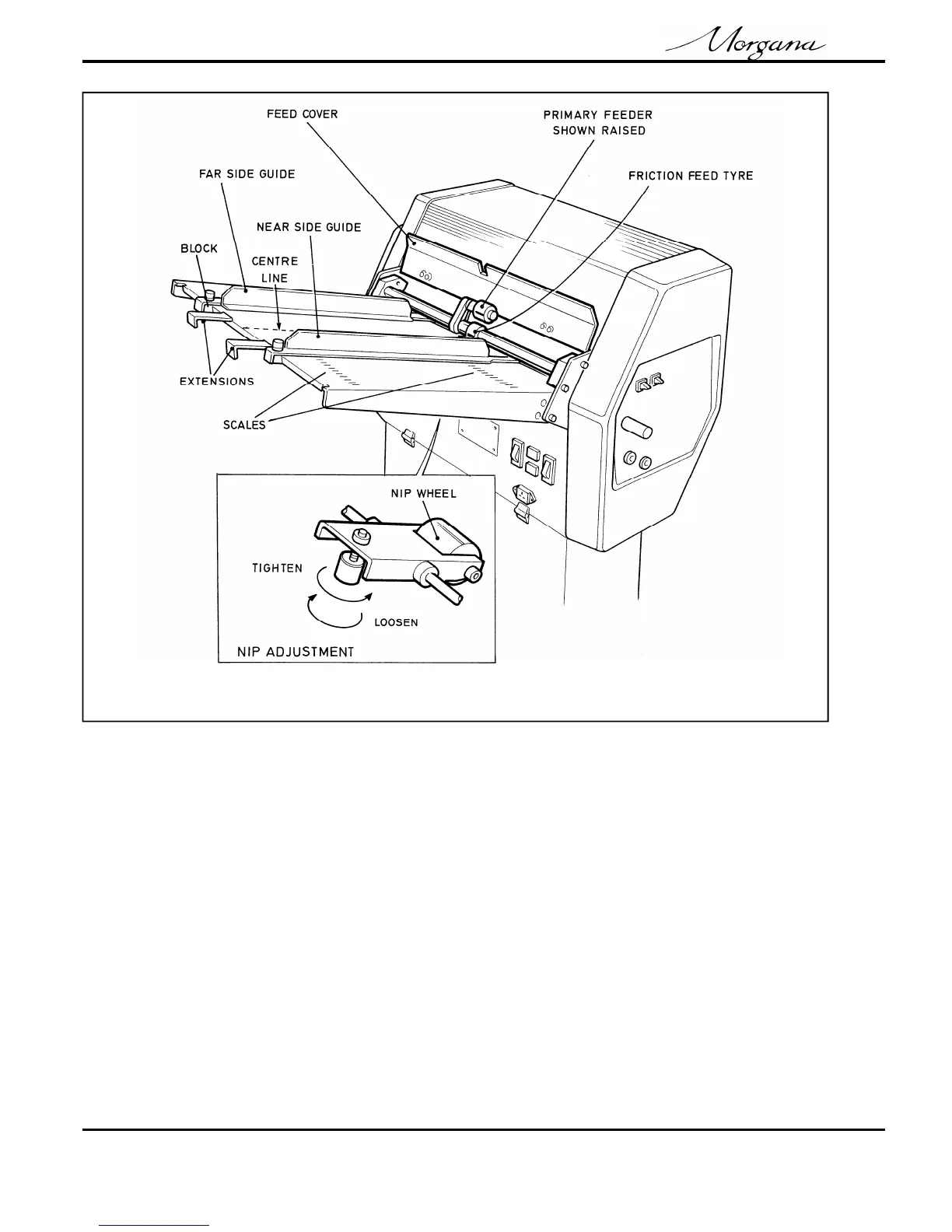

3.1 .......Feed Bed
The Feed Bed is set as follows:-
- Raise the feed cover.
- Raise the primary sheet feeder.
- Loosen both side guide locks and open up the side guides, to
allow one sheet of your job to be placed on the Feed Bed.
- Paper is normally fed centrally on the machine, and setting the
near side-guide to the scales, will facilitate this. Set the inside
edge of the side guide to the scale. (See note 3 for feeding multi-
part sets with glued edge to the side).
