Roller Tilt

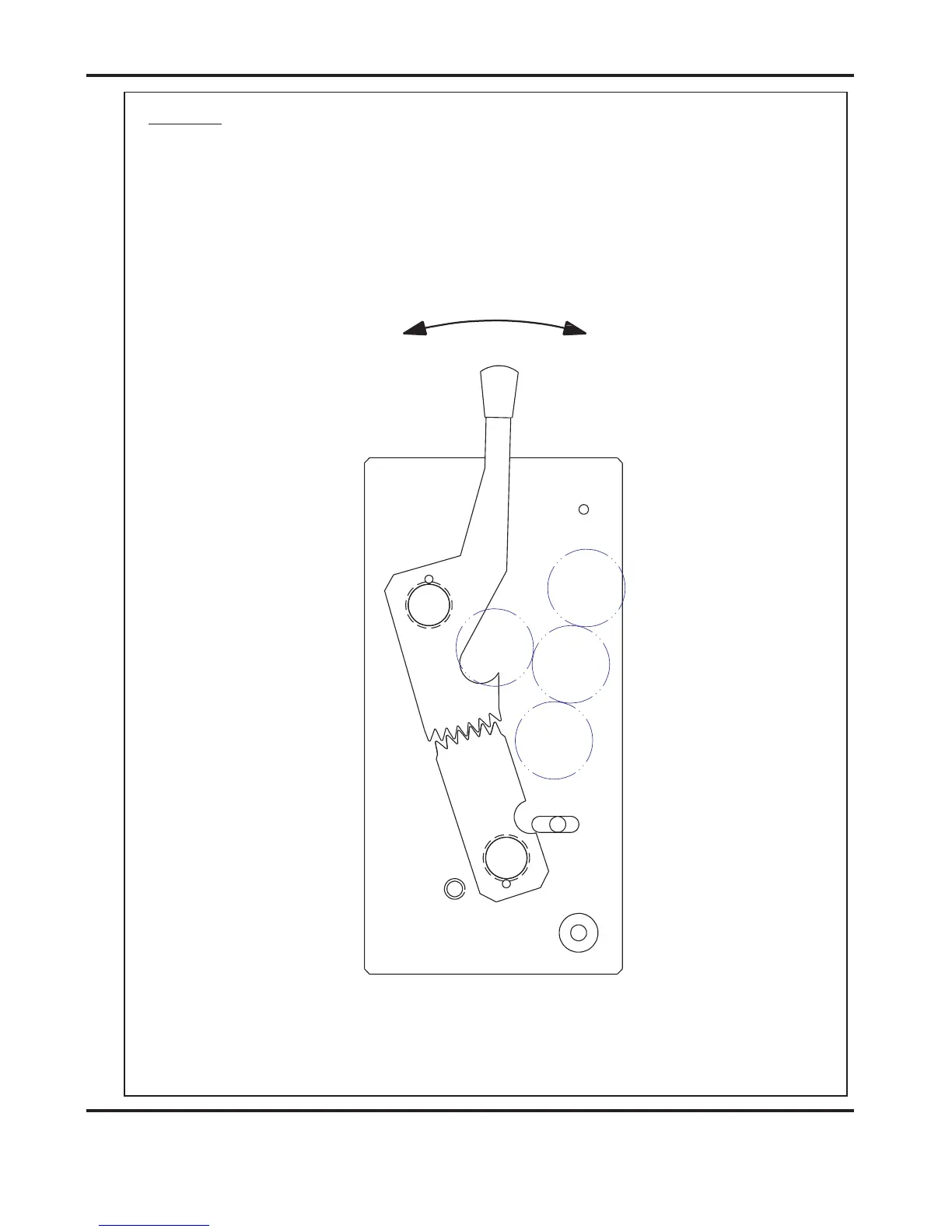

Lever (AA) should always be set in the '0' (square) position. To adjust folding out of square
you can move the roller assembly in the + or - direction by releasing knobs (Y) and moving
lever (AA) always re-tighten Knobs (Y).
You can move knob (AA) on it's own or in conjunction with the fold plate tilt, + on the fold
plate tilt moves paper in the same direction as + on the roller tilt.
+
-
