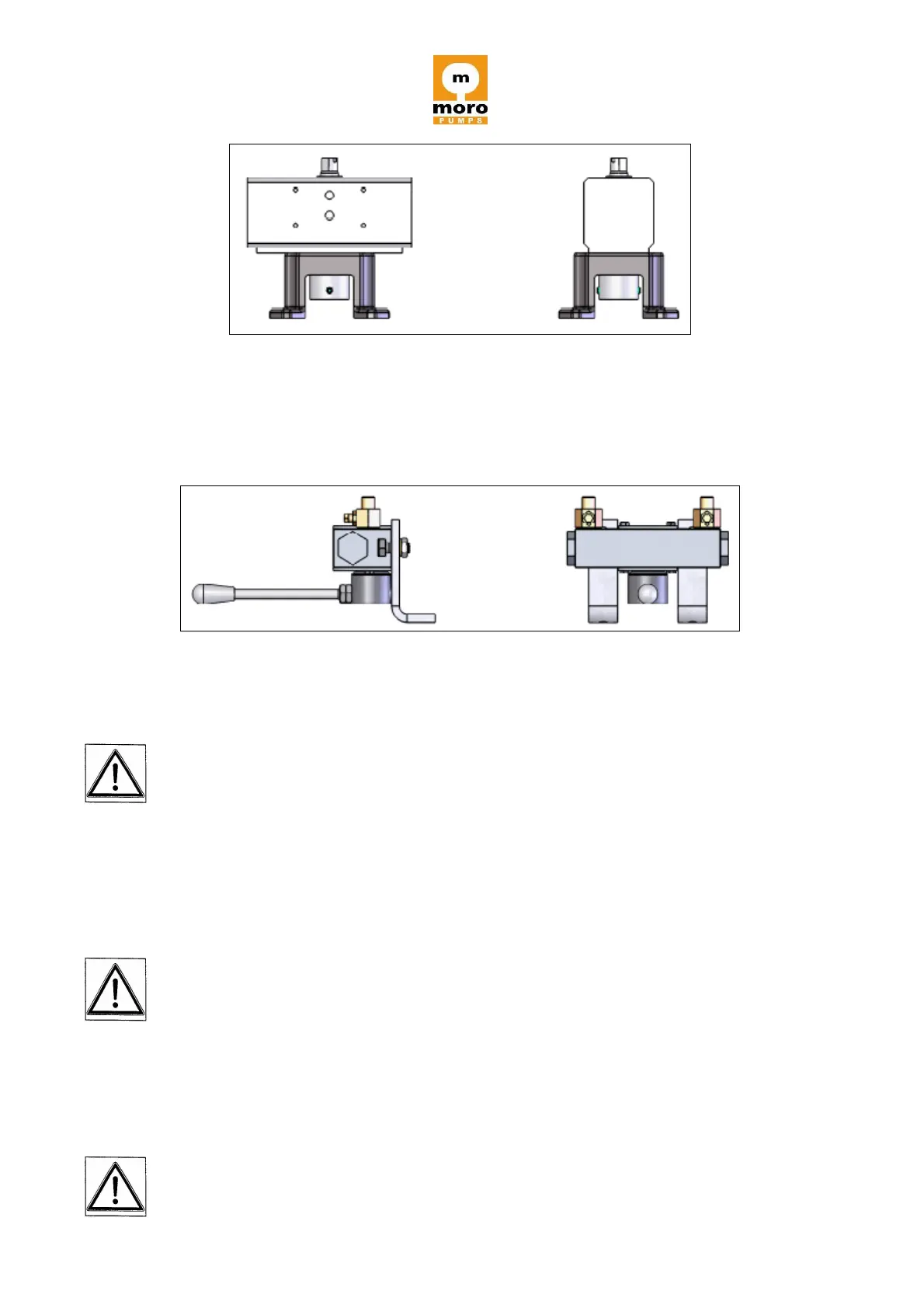

(Figure 8)
The second device (figure 9), is a hydraulic actuator, when connected to a hydraulic circuit,
enables switch lever rotation. Call your authorized dealer for further details and specifications
on the pneumatic and hydraulic actuators.
(Figure 9)
9.5 PROTECTION DEVICES USED
The vacuum pump, when installed on a machine, must be provided with a
protection device (guard) so that operators cannot access moving parts.
It is necessary as well to cover the pump to avoid the danger of flying debris in case
of severe failure.
Versions …AM and …AD are provided as standard with a protection device in
plastic material marked CE, to protect the PTO shaft during movement.
In version …AH, no protection is required for power takeoff.
9.6 PERSONAL PROTECTION DEVICES TO BE USED
During the use of the vacuum pump, it is necessary to use the personal protection
devices required by the Manufacturer of the machine on which the vacuum pump is
installed.
