Steps to Wire the 1218C Electronic Tank Gauge
There are four 1218 Sensor inputs in the 1218C. Channel 1 (J5) is the input
located closest to the ¾” conduit entrance of the enclosure.
Preparation
1. Open the front cover of the Electronic Tank Gauge by releasing the two
cover latches and swinging the cover open.
2. Remove and retain the two screws with their at washers holding the
cover to Intrinsically Safe Section in place.
3. Remove and retain the cover.
operation and safety of this device.
safety of this device.

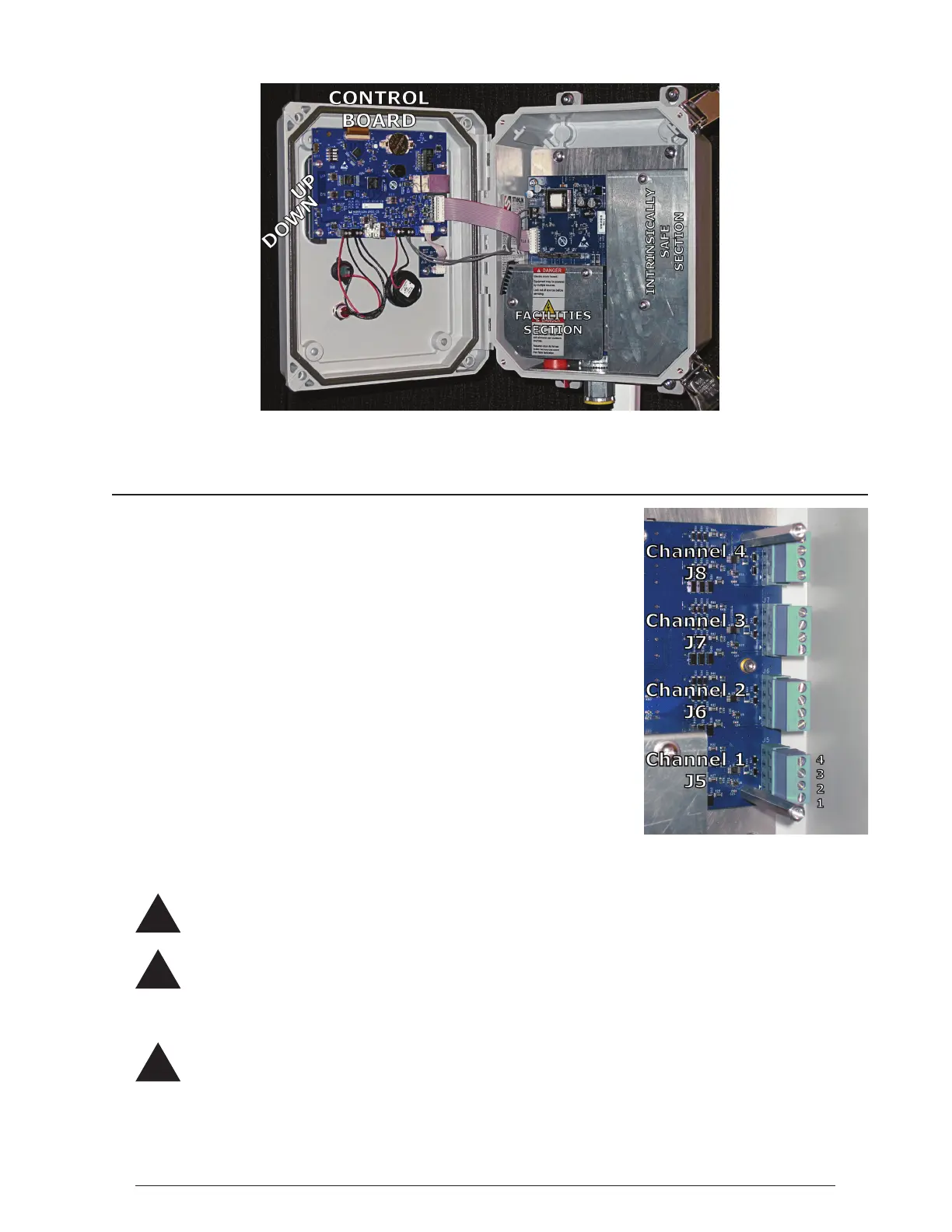

Figure 1 Overview of the inside of the 1218C
Figure 2 Channel Input Connectors
To Next Page
