Morrison LSG2503 - List of Parts

Assembling
• Remove all parts from package.
• Fix undercarriage to the housing. Figure 2 and 2B, with self
locking nuts using the supplied spanner.
• Mount the wheel axle , Figure 2A, to the undercarriage with
2 bolts M6 x 50 and nuts by using the supplied hex key and
spanner.
• Fit the spacers to the axle. Figure 2C, then slide the wheels
on the axle.
• Fix the wheel in place by hammering the wheel hub into the
axle.
4
1
2
4
3
5
6
7
8

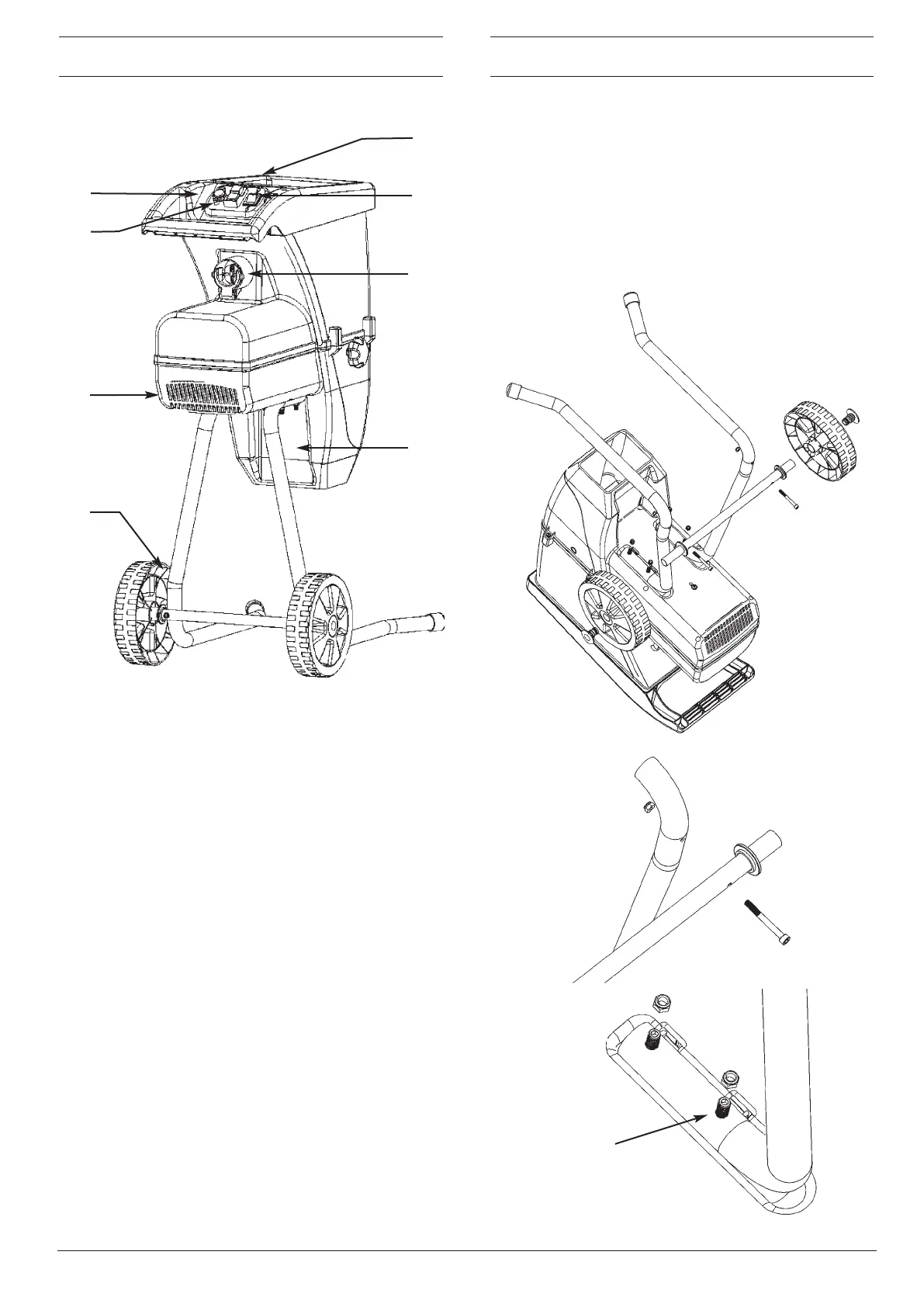

Figure 1
1.Feeding funnel
2.Reset button / overload protector
3.On/Off switch
4.Rotational direction switch
5.Application plug
6.Ventilation slots
7.Undercarriage
8.Ejection slot
Figure 1
List of parts
Figure 2
Figure 2A
Figure 2B
Four attachment
points
