Morrison YT5461-01 - Machine Components and Assembly; List of Parts

5
• Inspect the machine for possible damage:
- Whether safety devices work properly for its intended
function
- Whether all the moving parts work smoothly and
adequately
- Whether all parts are not damaged and properly
installed
- Replace or repair by our authorized service centre if
there are any damaged parts.
• Pay extreme attention when servicing cutter. The cutter is
able to move manually tough interlock feature of the guard
functions.
• Do not clean the device with water. It may cause electrical
shock.
• Wear protective gloves during maintenance or assembly work
to prevent injury to fingers.
• Do not carry out maintenance or repair work other than that
described in this instruction manual. Any other work must be
carried out by authorized service centre.
• Only use original replacement parts and accessories intended
for your machine. Otherwise it may result in personal injury or
damage on the machine.
• Store the machine in a dry room. Keep it out of reach of
children. Never store the machine outdoors.

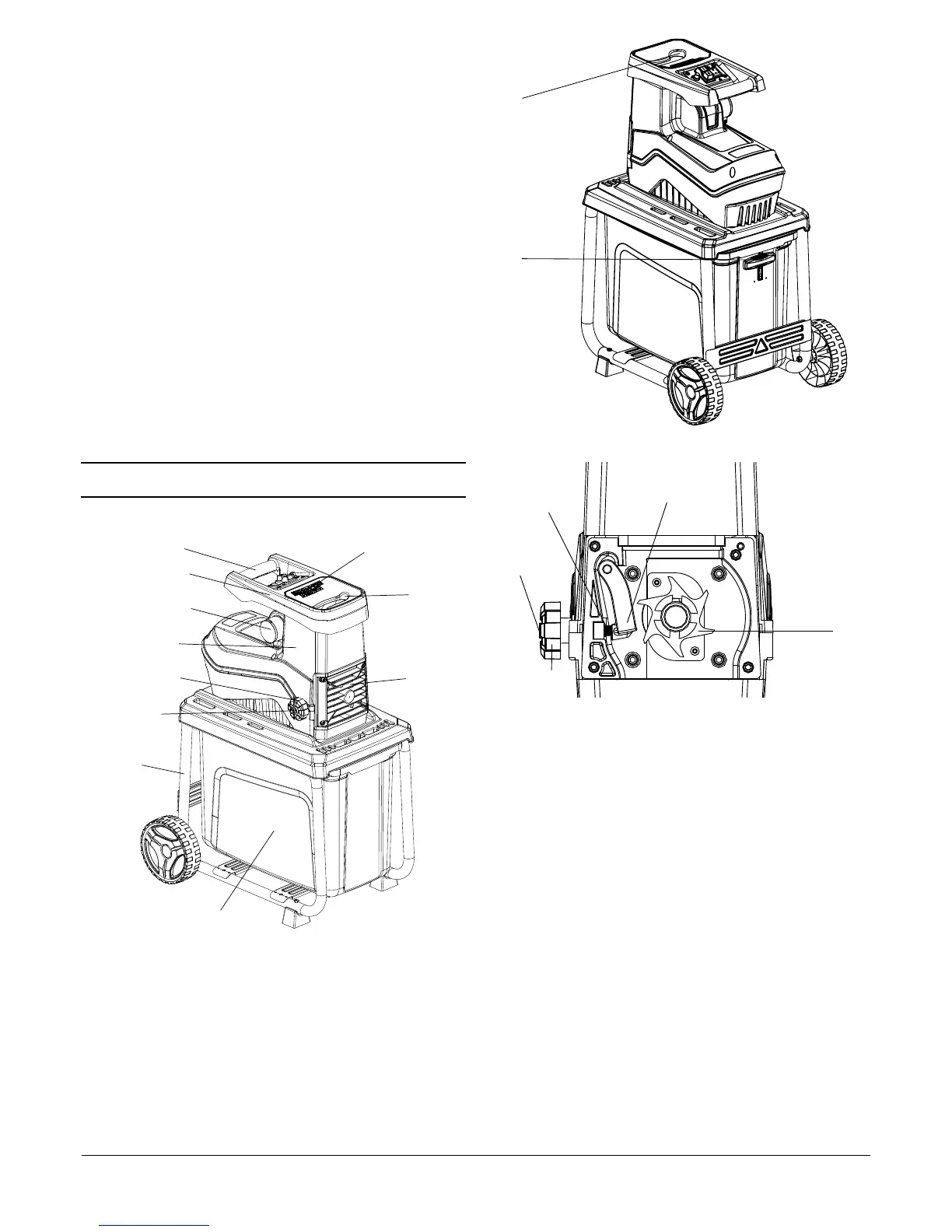

List of Parts
1
2
3
4
6
7
8
9
10
11
12
13
5
1. Filling hopper
2. Power switch
3. Handle
4. Power supply plug
5. Lock lever
6. Forward / Reverse switch
7. Upper enclosure
8. Retaining basket
9. Base frame
10. Hexagon socket-head bolt Adjusting knob (adjusted by
Allen key).
11. Fixing knob
12. Blade cover
13. Feed side
14. Screw
15. Counter blade
16. Cutting roller
Remark: Allen Key x1pcs is packed as accessory in the packaging.
