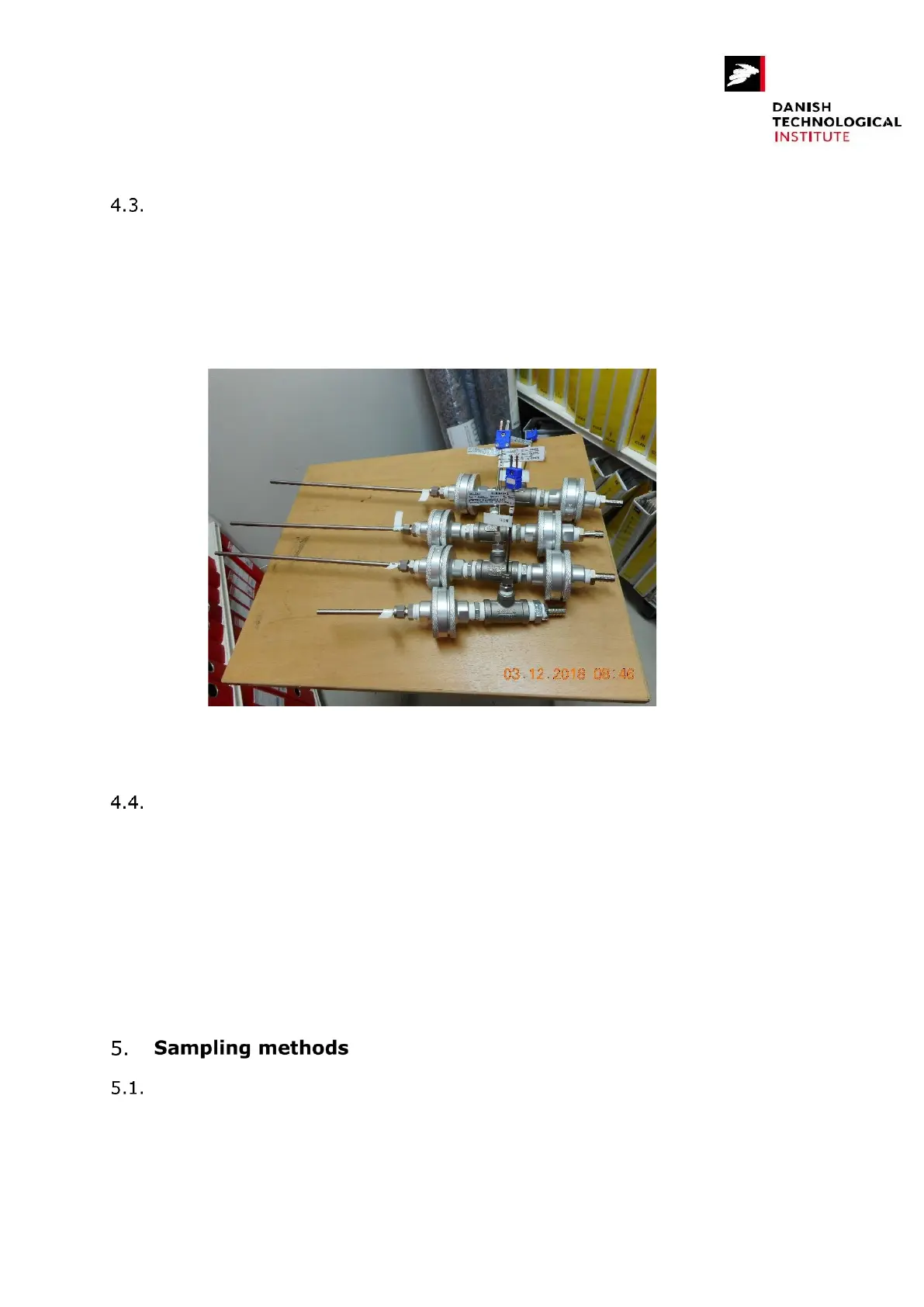

Sampling arrangement
The PM specimen is extracted from the Ø150 mm Full Flow Dilution Tunnel by means of a dual
probe and filter holder system as specified by ASTM E2515-11, clause 6.1.1.1. The filter holders
are of type 47 mm Pall 1235. There are 3 sets of backed-up filter holders for PM sampling and one
single filter holder for the room blanc measurement.
During the course of the test, the filter holders in the PM sampling lines may be heated respectively
cooled as appropriate, to control the filter temperature in the narrow band of 80-90 degrees F.
Fluepipe and chimney configuration
The chimney is composed by single wall uninsulated fluepipe in combination with half insulated
system steel chimney compliant with ASTM E3053-17 clause 6.3
The single wall fluepipe extends to 2.52 m above the test rig floor. In combination, the insulated
system chimney extends to 4.58 m above the test rig floor, compliant with ASTM E3953-17 clause
8.2.3
Please find a schematic drawing of the chimney configuration in appendix 11
The chimney was connected to the stove using the top flue outlet
Particulate extraction system
The particulate matter is sampled in accordance with ASTM E2515-11. Two identical sampling
trains are applied. The sampling trains consists each of a set of front and back Pall type 1235 Al 47
mm in-line filter holders. Filter are Pall TX-40 EMFAB Teflon-coated filters 47 mm membrane filters.
