Morso Panther - Page 6

6

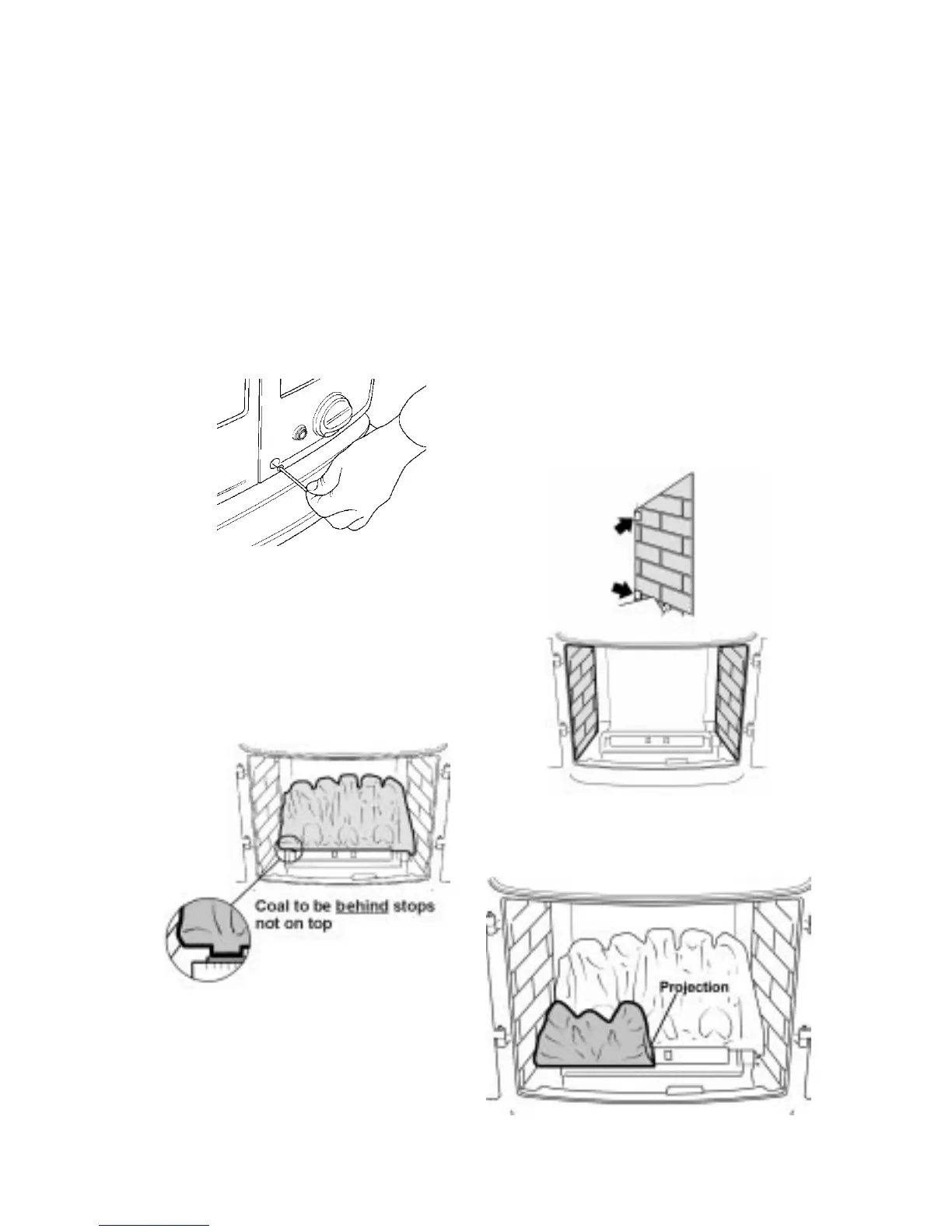

them. See figure 4.
4. Place the left front coal behind the metal lip at the front of the burner.
See figure 5.
5. Place the right front coal behind the metal lip at the front of the burner.
Its left side should rest over the projection on the left front coal. See
figures 5 & 6.
6. The double top coals are marked “L” and “R”. Place the coal marked
“L” behind the front left coal. Place the coal marked “R” behind the
front right coal. Place the single coal between the two double coals.
See figure 7.
7. Close and secure the windows by refitting the locking screw.
Figur Figur
Figur Figur
Figur
e 2e 2
e 2e 2
e 2
Figur Figur
Figur Figur
Figur
e 3e 3
e 3e 3
e 3
FigurFigur
FigurFigur
Figur
e 4e 4
e 4e 4
e 4
FigurFigur
FigurFigur
Figur
e 5e 5
e 5e 5
e 5
