1.1 Unpacking the stove
The Morsø S10-40 weigh 98 kg. The Morsø S10-45 weigh 140 kg. In order to avoid damage when
unpacking and assembling the stove, we recommend that this job be undertaken by 2 people.
1.2 Installing the stove
The stove is from the factory fitted with a top flue exit. The ball blocking device that is to stop
the chimney sweep’s ball during sweeping is also supplied with the stove and is installed at the
same time as the smoke outlet.
National and local regulations regarding the installation of wood-burning stoves must be
observed, as must local regulations regarding chimney connections and chimney installation.
You may want to ask your chimney sweep for advice. However, you, your technical adviser or
workman are responsible for complying with the applicable national and local regulations.
1.3 Chimney sweep
As stated, it may be wise to consult your local chimney sweep before installing the stove. In any
event, the chimney sweep must be notified once the wood-burning stove has been installed.
The chimney sweep will inspect the installation and schedule sweeping intervals with you. If
your chimney has not been used for some time, it should be inspected for cracks, bird nests,
etc., before it is used.
1.4 Location of the stove/distance requirements
Distance requirements apply only if the stove is placed near flammable materials. Your new
stove can be positioned as specified on the certificate of approval on the back of the stove if the
walls are made of flammable material.
1.0 Installing your Morsø stove

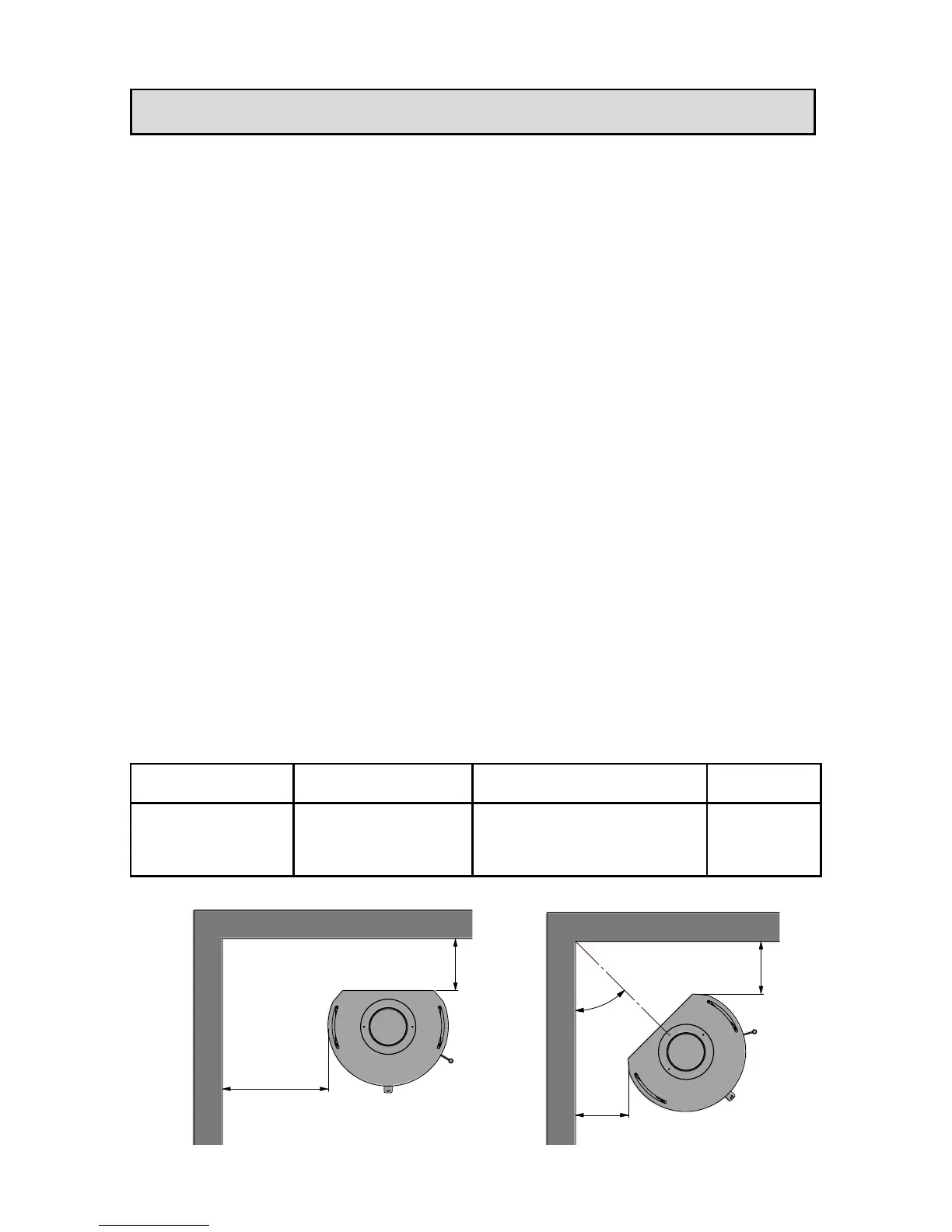

Minimum distances from flammable material:
Type of stove Behind the stove (A) To the sides of the stove (B) To furniture
Morsø S10
uninsulated flue pipe 200 mm 400 mm 800 mm
B
A
