66
spindle \0 the right fork member and bolt B
which secures the left hand member, taking
out the wheel spindle. Now push the wheel
dDwn Just sufficiently to free the brake
block from ils anchoring lug on the left fork
member
and back il out .
N.I . . Wilen .e· ... ernbllng doll, ' orge t to ;11$0, 1 11M
brake block In i ts .net-age on the left fotlt membe •.

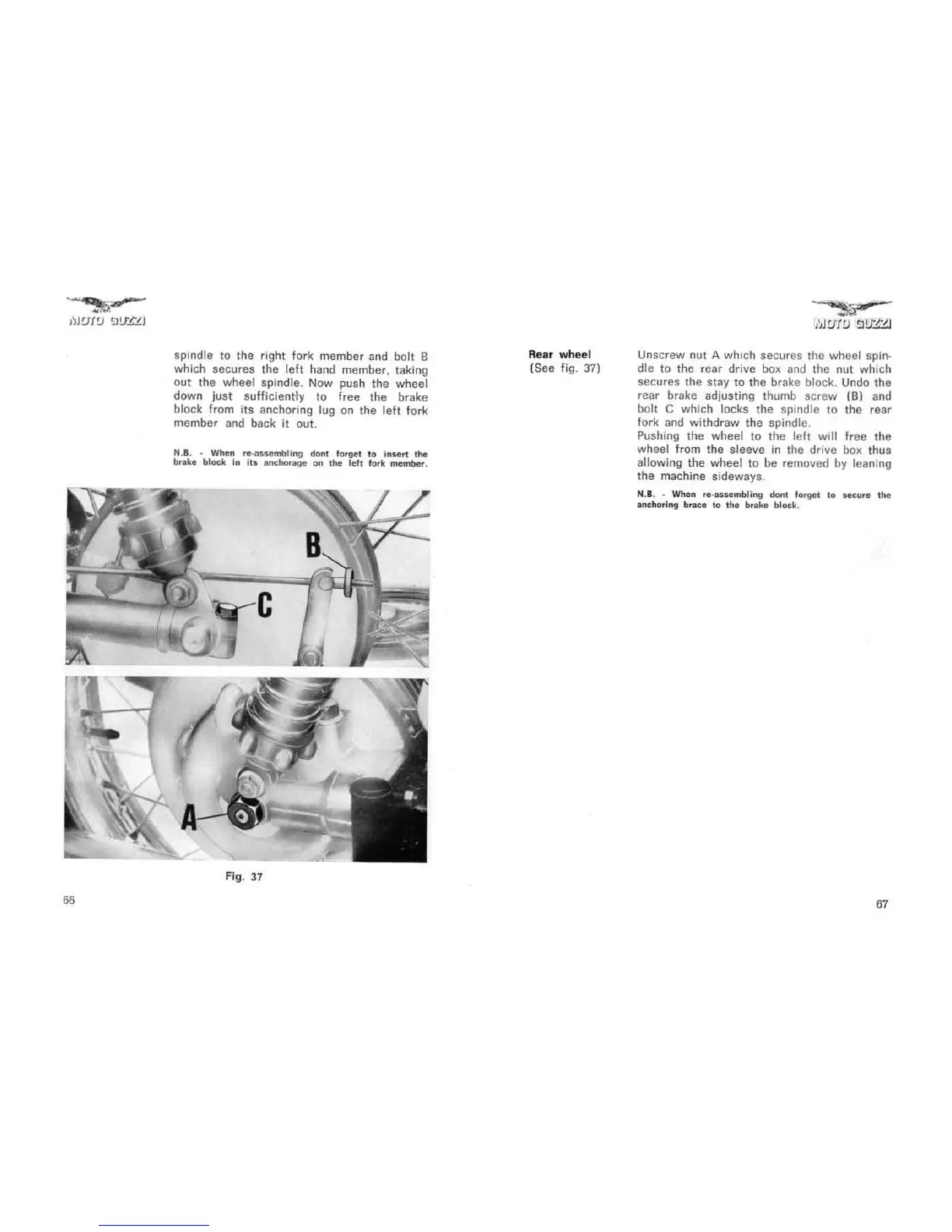

Fig. 37
R ea r wheel
(See fig. 37)
--:S:r-"'"""
bJ!JtrJ 1J!y~J
Unscrew nu l A which secures the wheel spin-
dle to the rear drive bOil: and thc nut which
secures the slay to the brake block. Undo Ihe
rear brake ad ju sting thumb screw (8) and
bolt C which locks the sp indle to Ih e r ear
lork and withdraw the spindle.
Pushing the wheel to the left will free the
wheel fr om the sleeve in Ihe drive box thus
allowing the wheel to be removed by leaning
the
machine Sideways.
N.I .. When .. ·nse mbli,,!! cIont fotget to _ uri the
Inc hO<lng brace to t he IN ,klt block.
67
