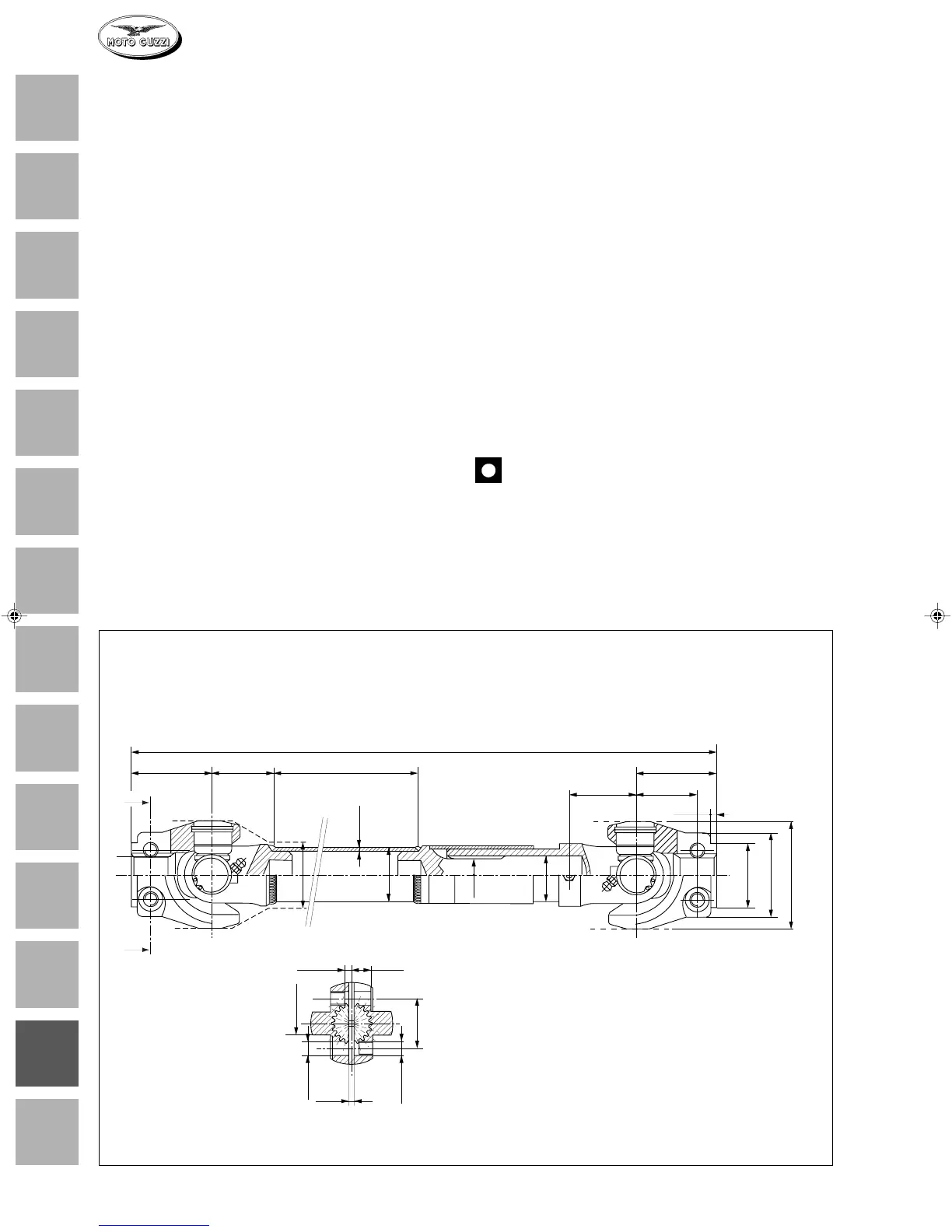

8 REAR T RANSMISSION HOUSING AND SHAFT

ALL CLOSED L = 365 + 35 MAX. LEIGHT

46 36 115 46

3536,5

3,5

ø36,5 max gear

ø47,3 max gear

Rotat. gear ø61,3 max

ø 19

ø 37

sp.2,5

+0,1

-0,2

ø 8,5

+0,3

ø 13,5

+0,3

4 max.

M8x1,25

ø 32

±0,2

SEZ. A-A

2 TRANSMISSION SHAFT

Replace the shaft with transmission joints every 20000

Km; If the motorbike is mainly used for racing-type driving,

or usually high speed driving, replace every 15000 Km.

Disassembly:

• Remove the rear transmission housing from the

motorbike and disassemble the transmission joint, as

described in chapter 1 in this section;

• Remove the transmission shaft from the gearbox by

unscrewing the high resistance screws.

Maintenance:

• See chapter 2, section D.

Reassembly:

• Carry out the disassembly procedures in reverse order

IMPORTANT

In order not to damage the transmission joints,

refit the shaft “A” and the joint “B”, aligning the

reference marks as illustrated in the figure.
